It is a common concern of ford crown victoria owners to state something to the effect of "my blower motor only works good on the high speed". In which case, the blower motor might not spin on any speed other than high. Or the blower motor might spin on speeds other than high, but turn rather slowly and move minimal amounts of air. The most likely culprits here are the blower resistor under the hood and it's associated electrical wiring pigtail.

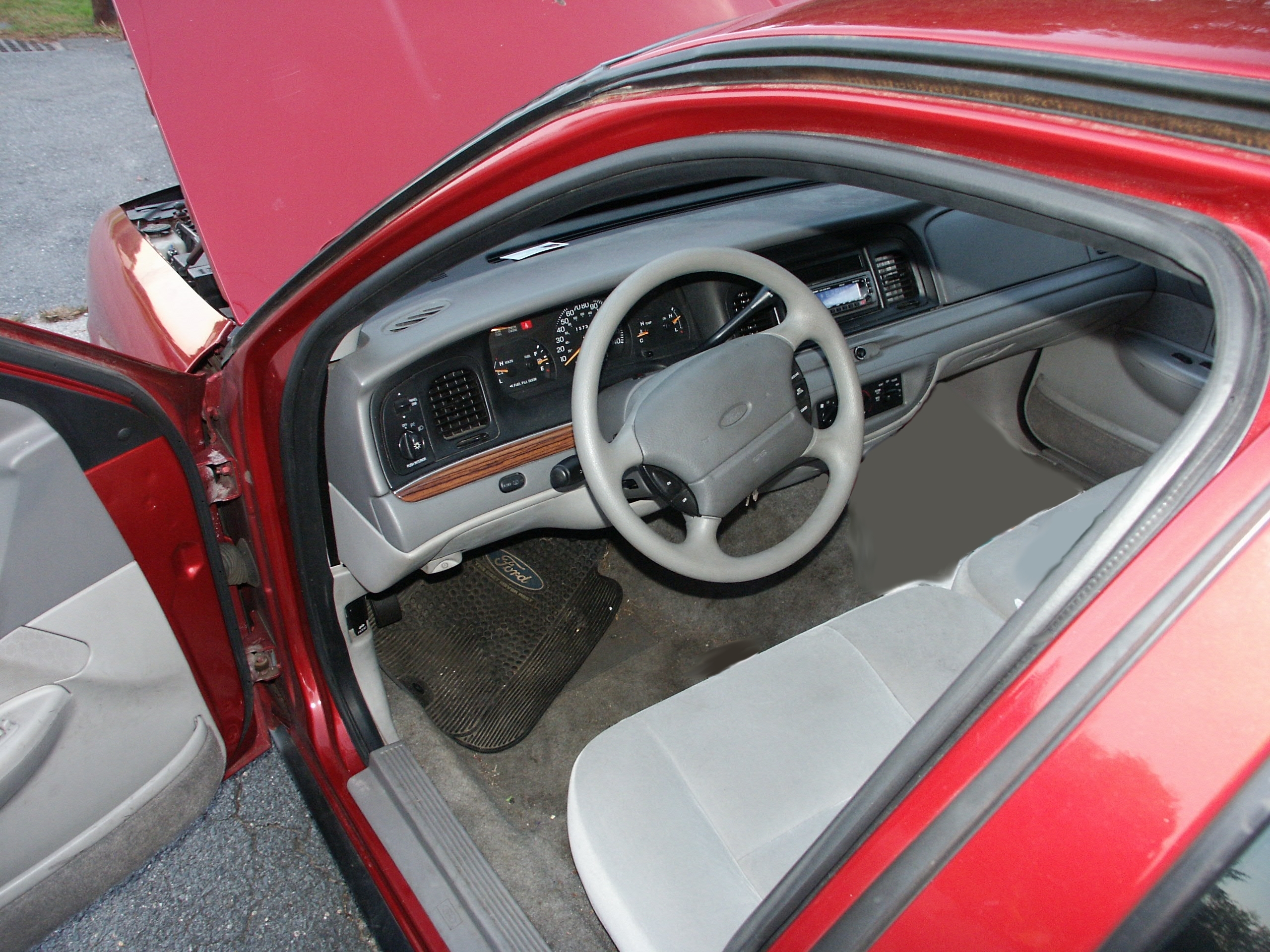

Here's the inside of our project car, a 1997 crown victoria police interceptor p71.

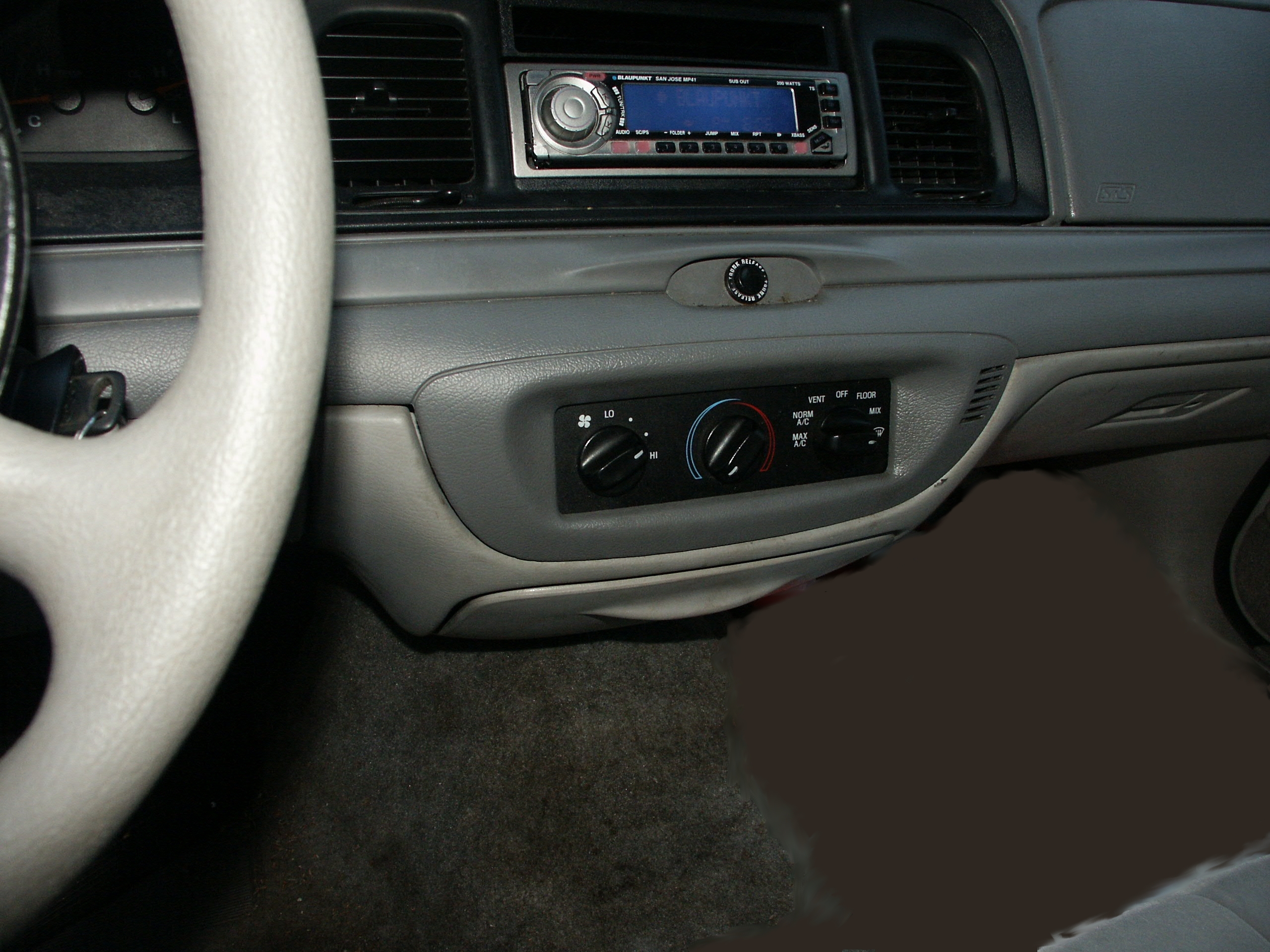

And here are the manual climate controls.

We also have an aftermarket radio installed too. That big black button in between the climate controls and the radio is to pop the trunk open. Civilian vehicles would have a clock there instead of a button.

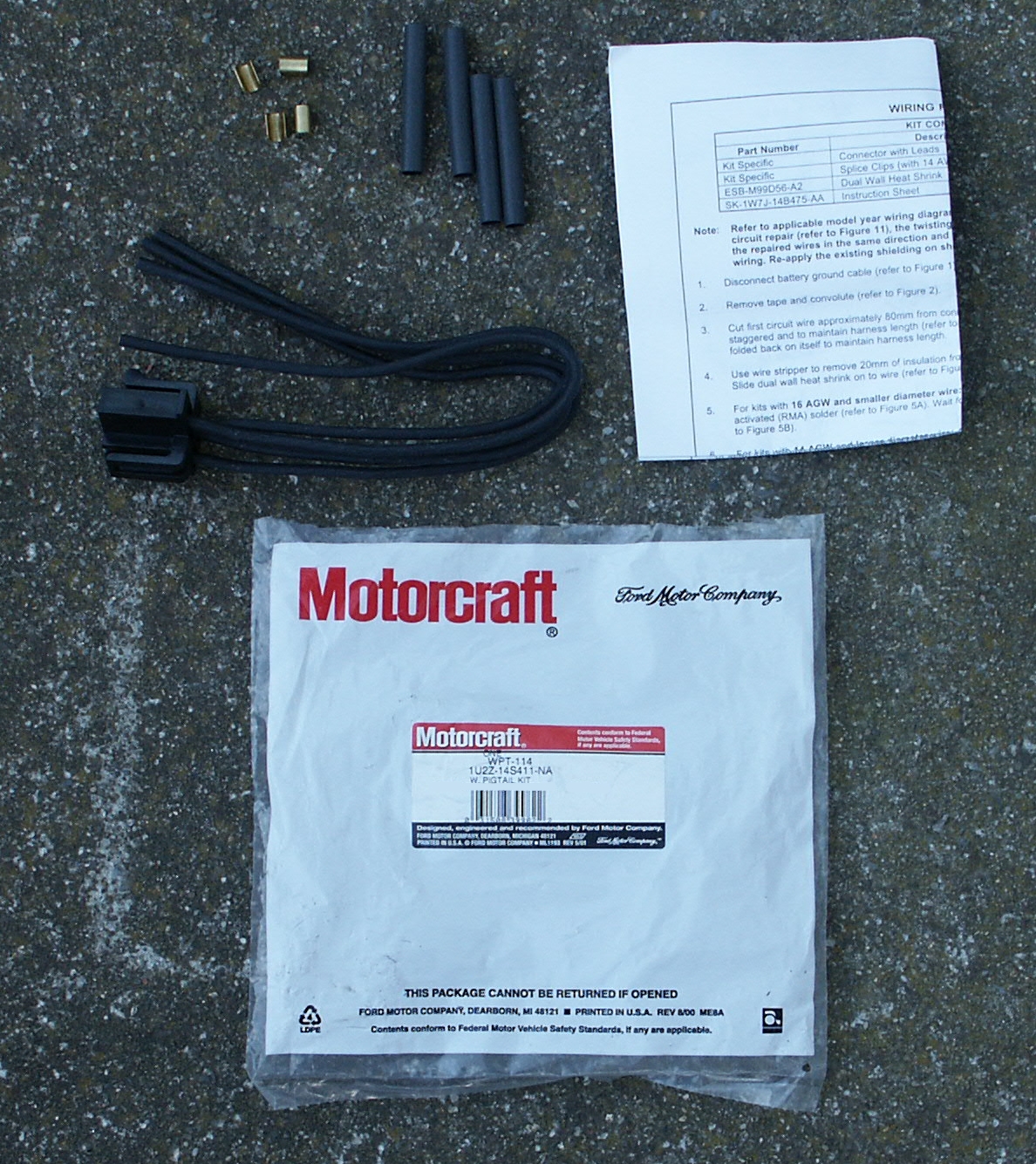

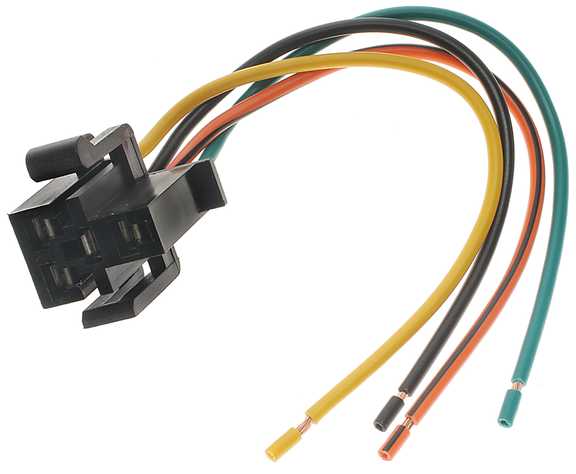

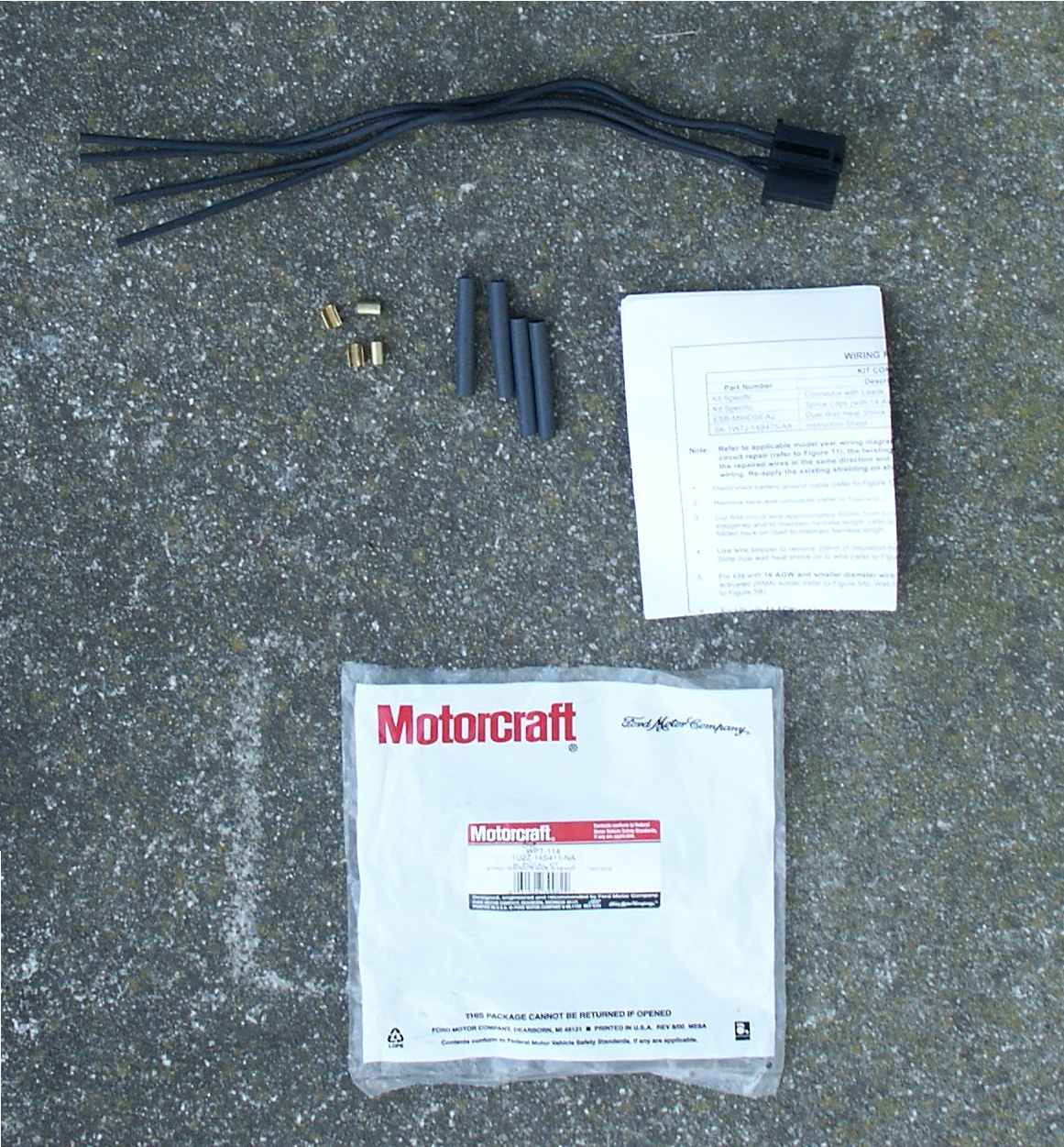

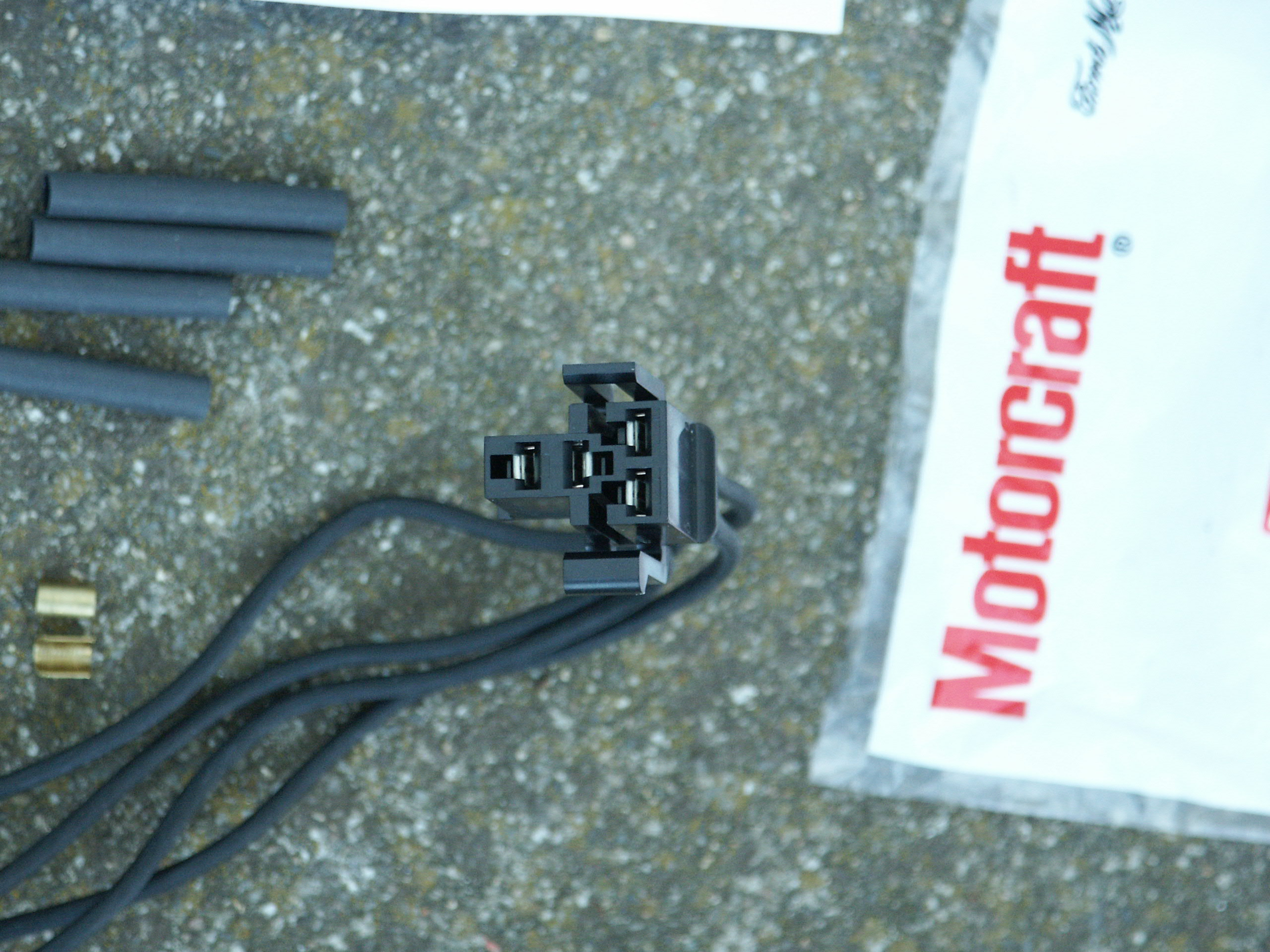

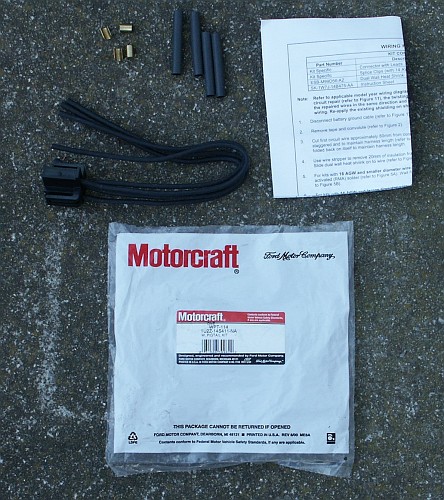

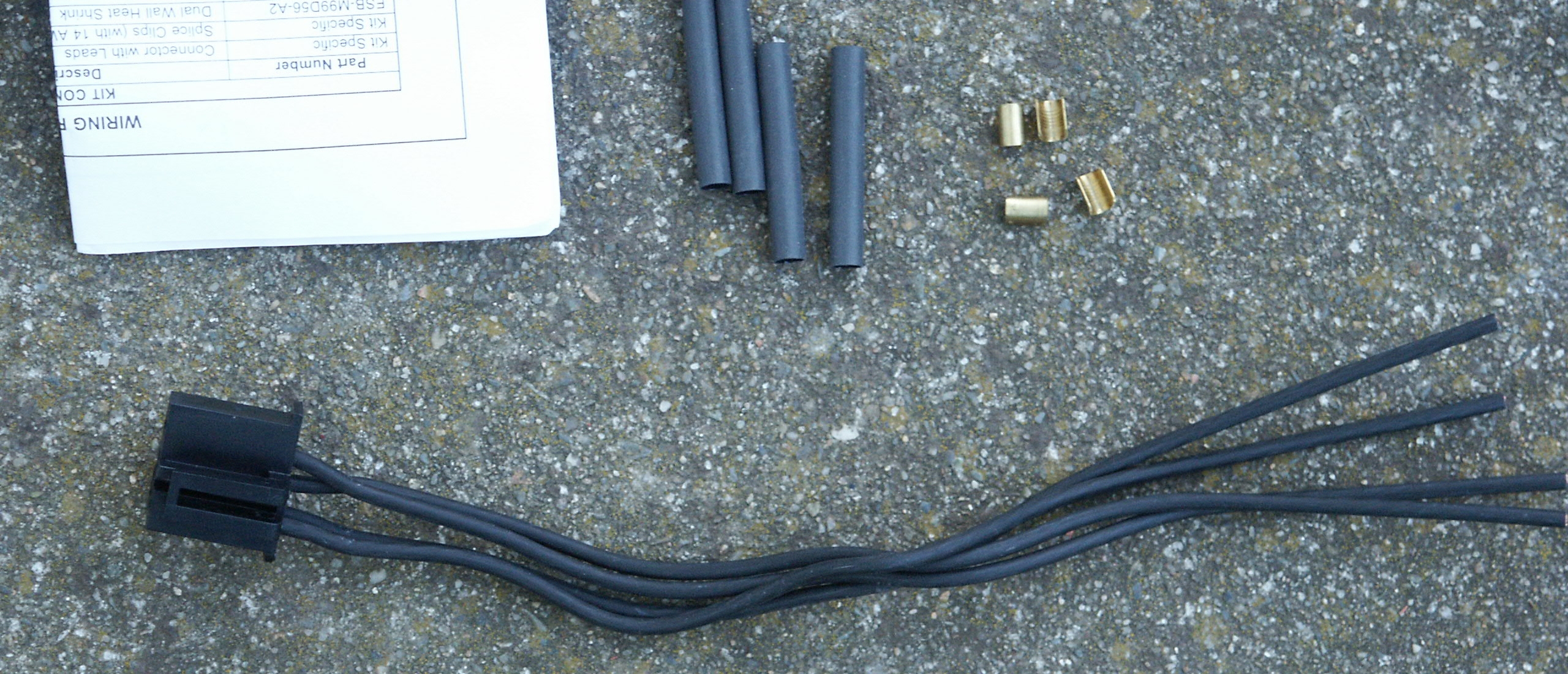

Here's the wiring pigtail kit that is going to be installed.



Blower Resistor Wiring Pigtail Part Numbers

Ford Service Part Number	Motorcraft Part Number	NAPA Part Number	SMP Part Number (Standard Motor Products)	Comments
1U2Z-14S411-NA	WPT-114	ECH-EC4 (Manufactured by SMP)	S-630	Blower Resistor Pigtail 1990-mid2005 crown victoria and grand marquis with manual climate controls without eatc

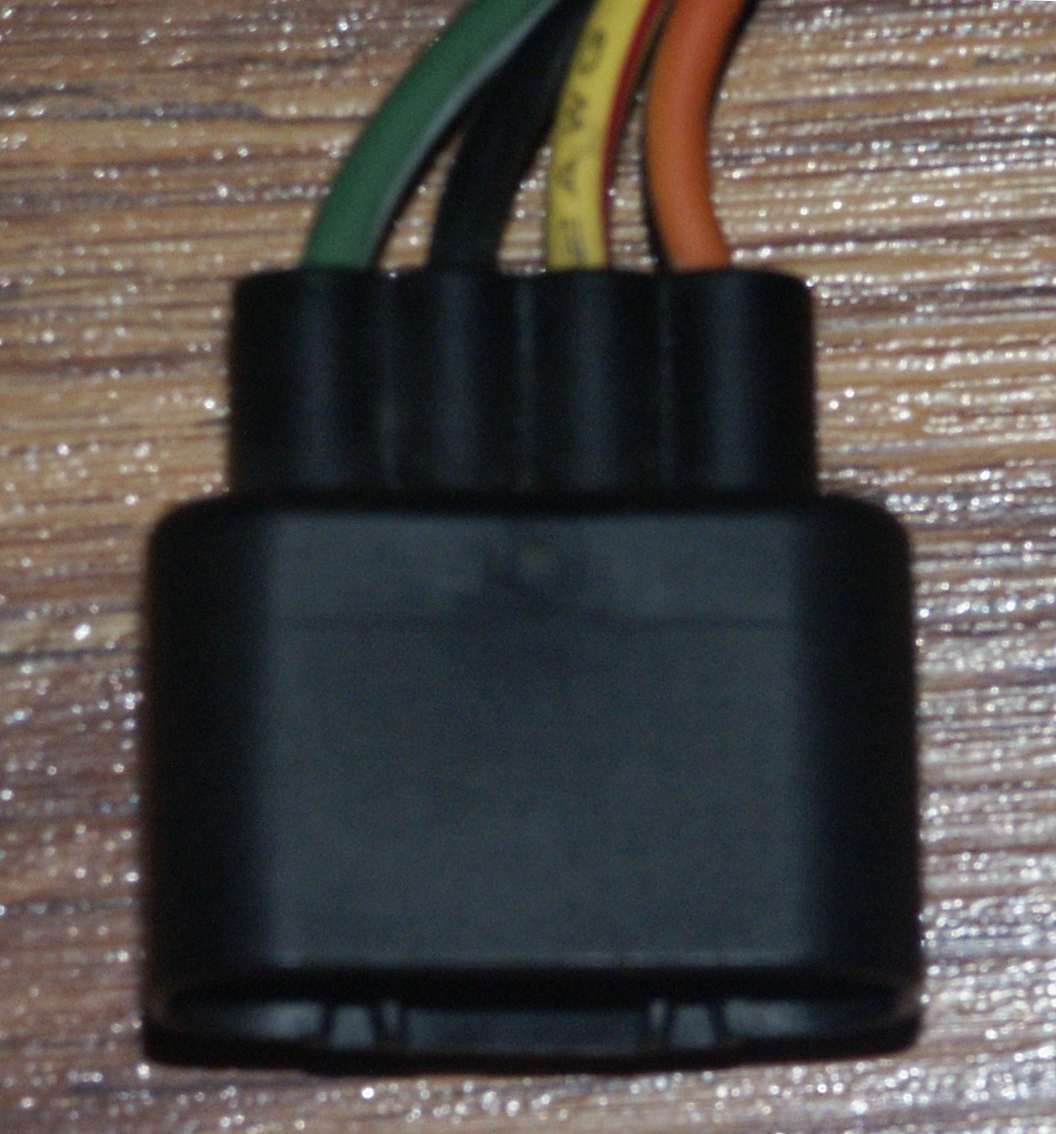

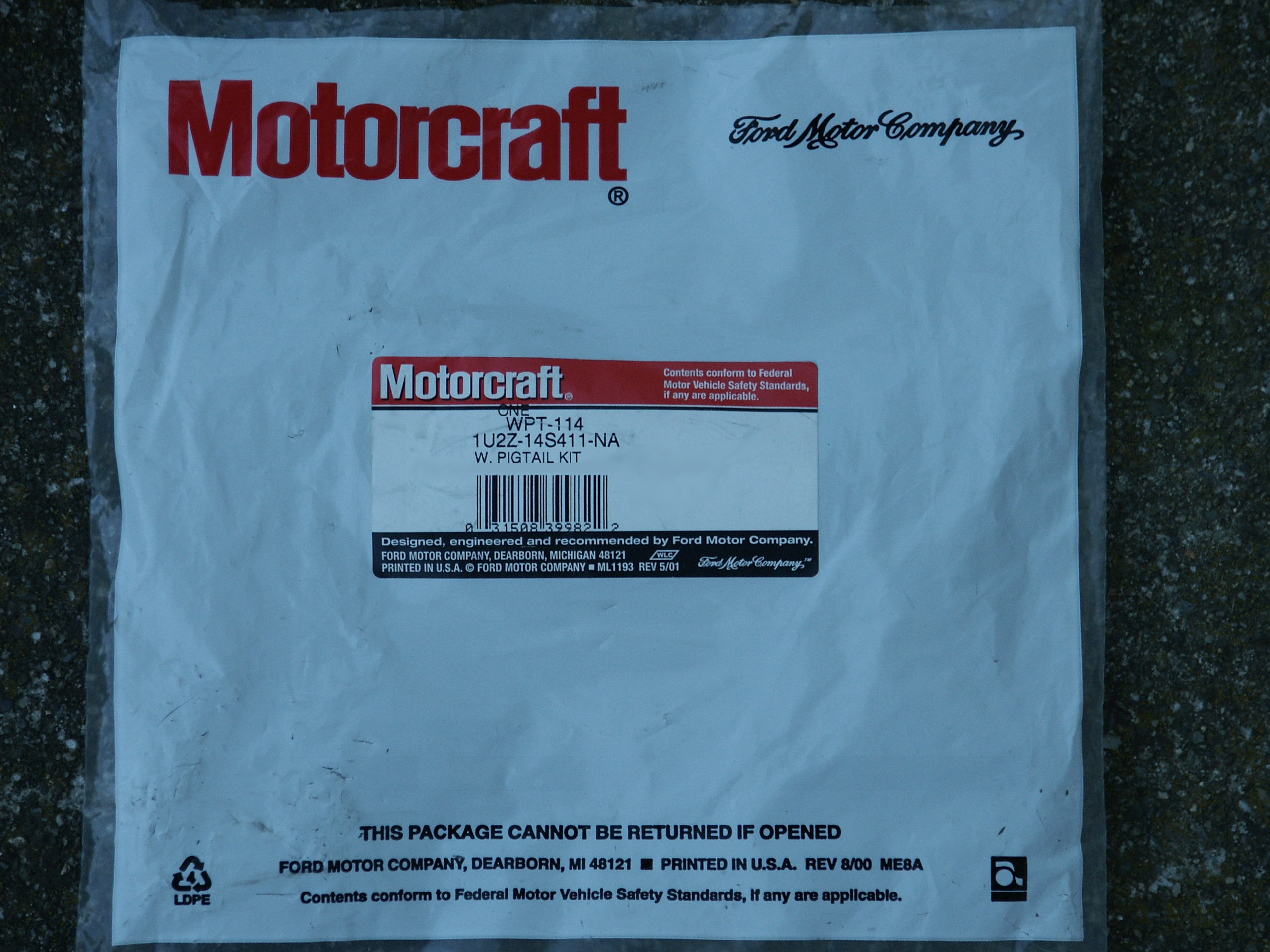

And a closeup of the part number tag.

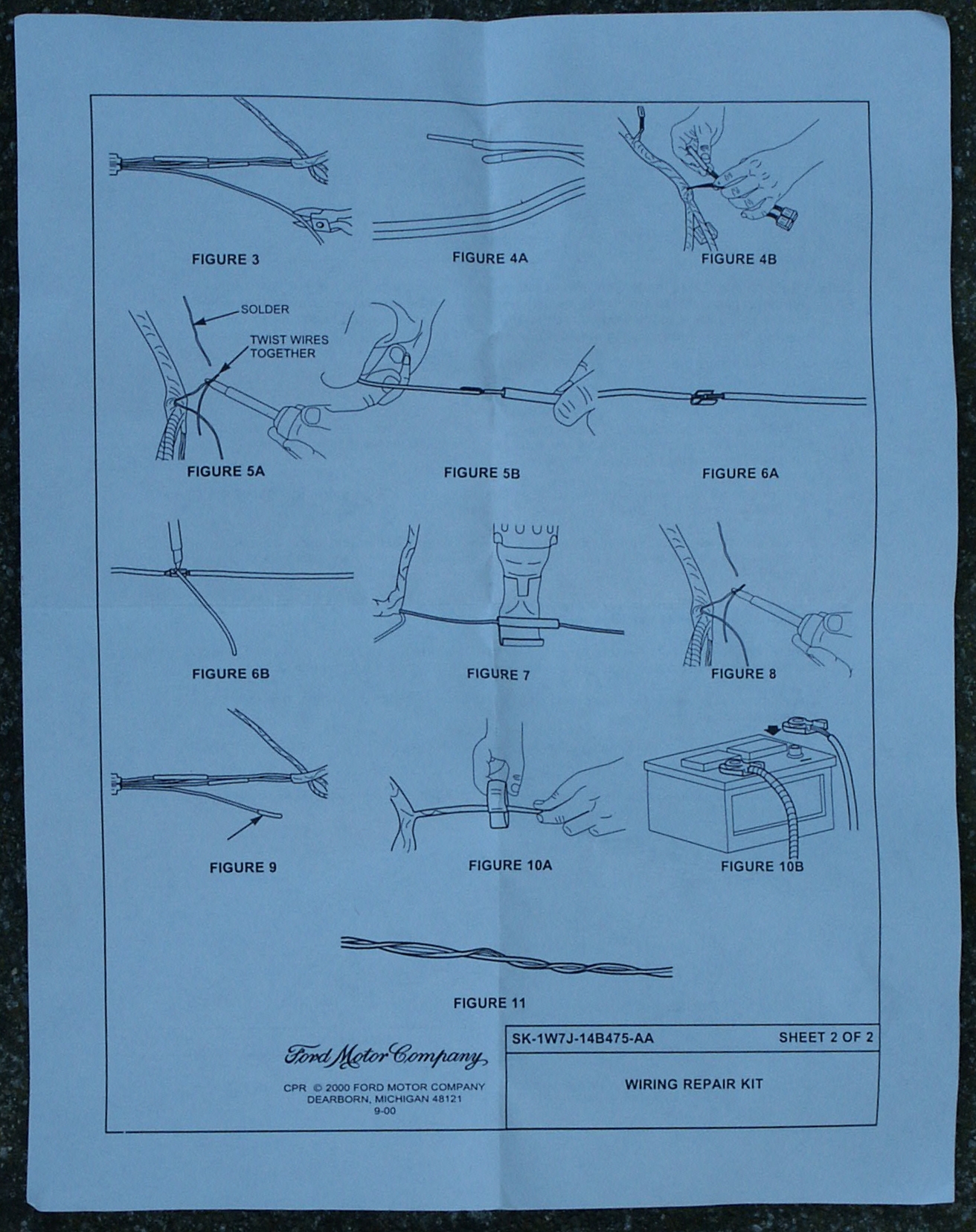

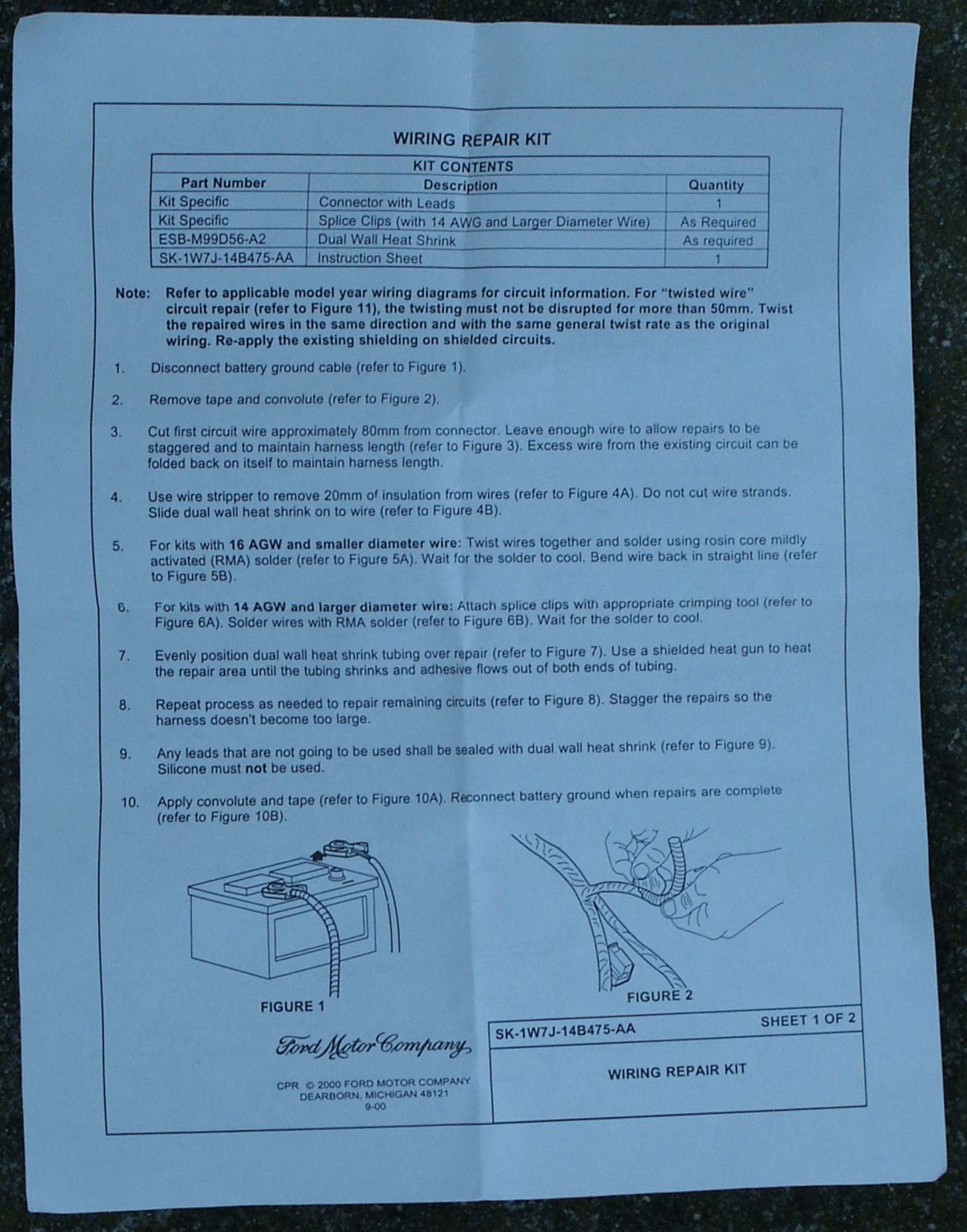

And the instruction manual that ford includes with the wiring pigtail kits

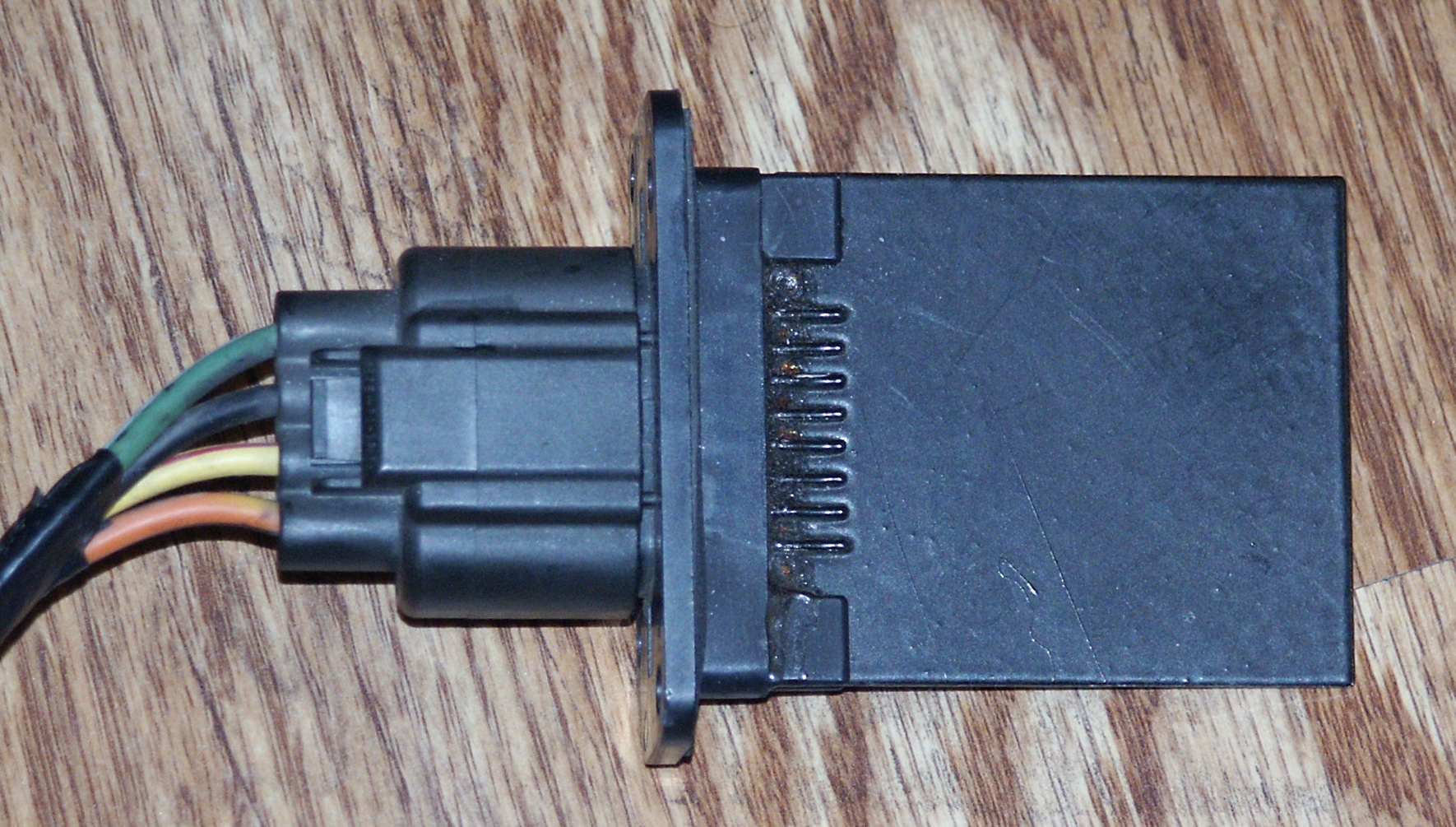

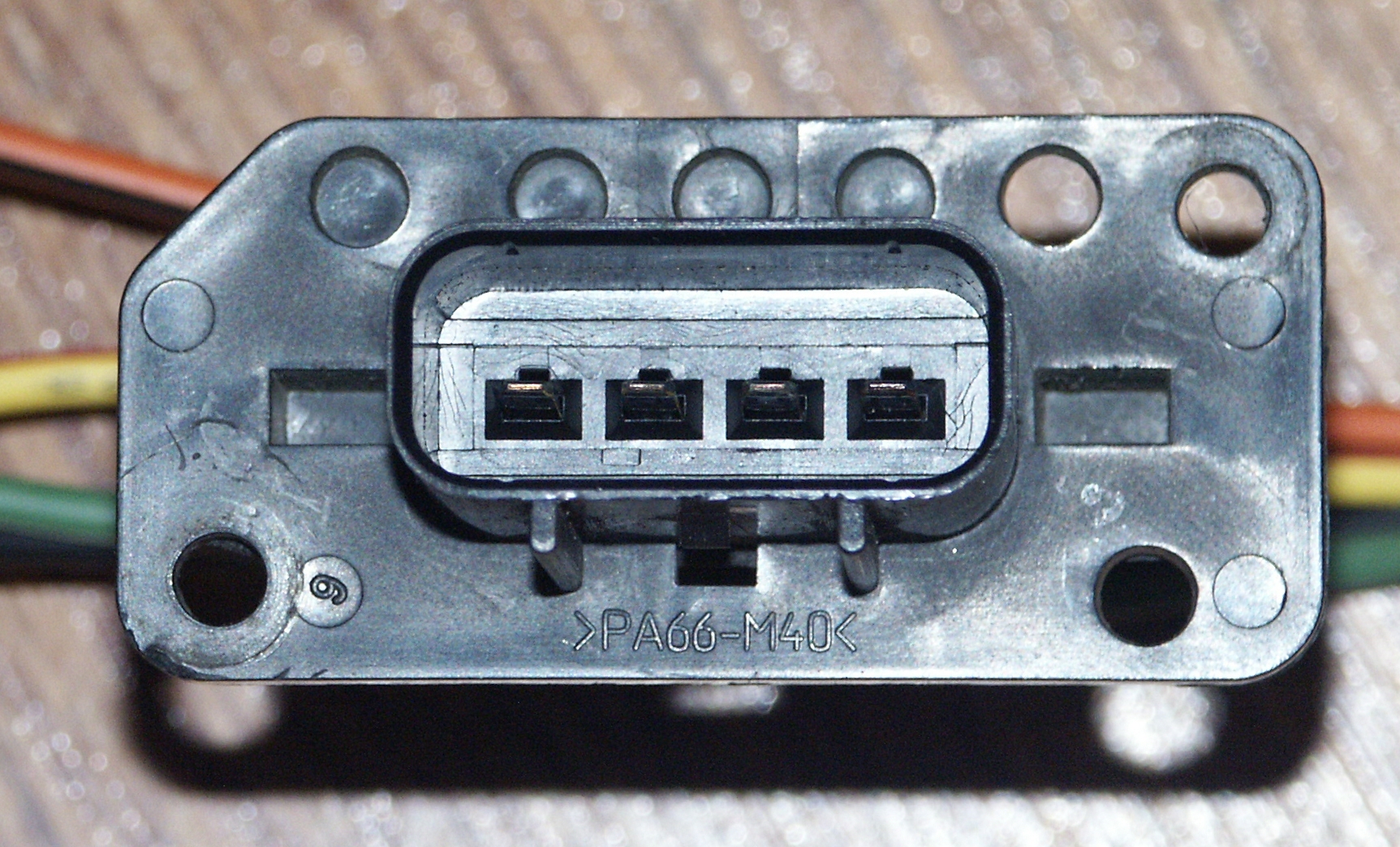

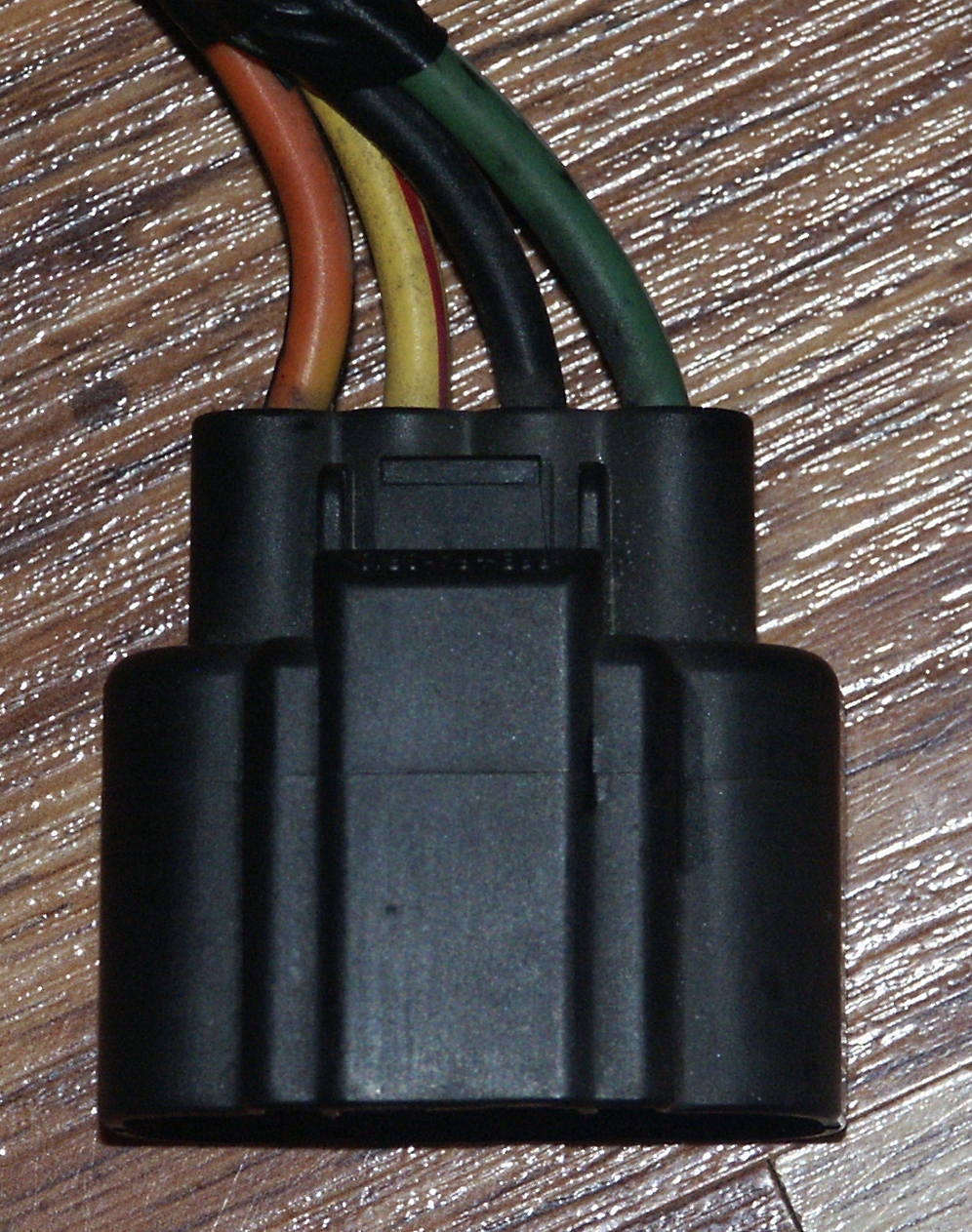

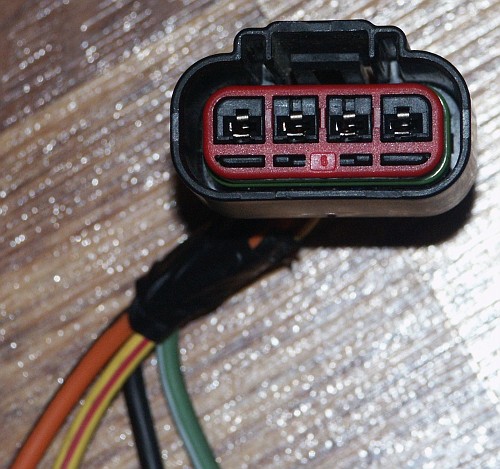

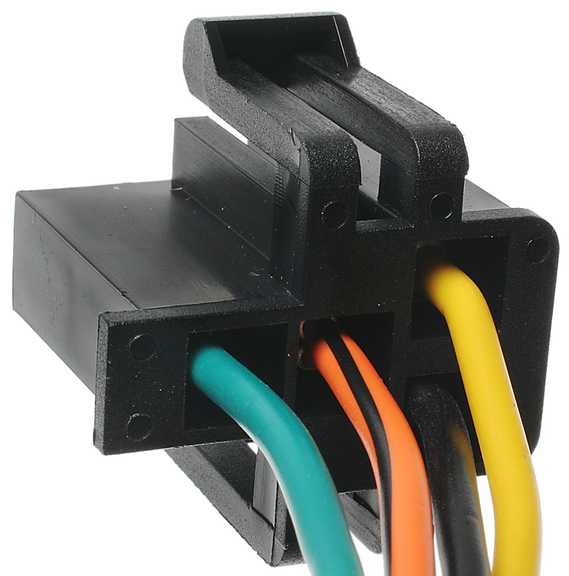

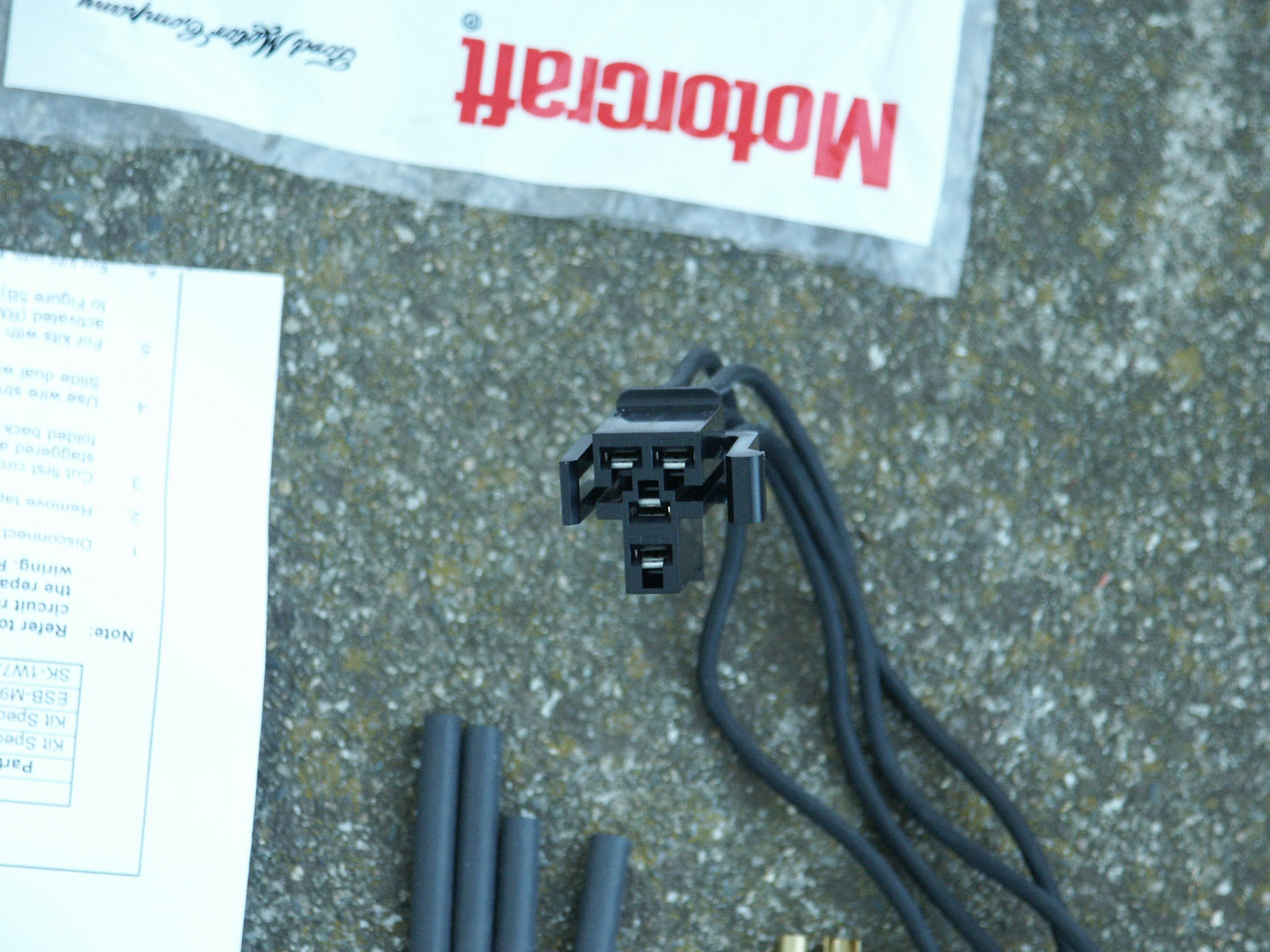

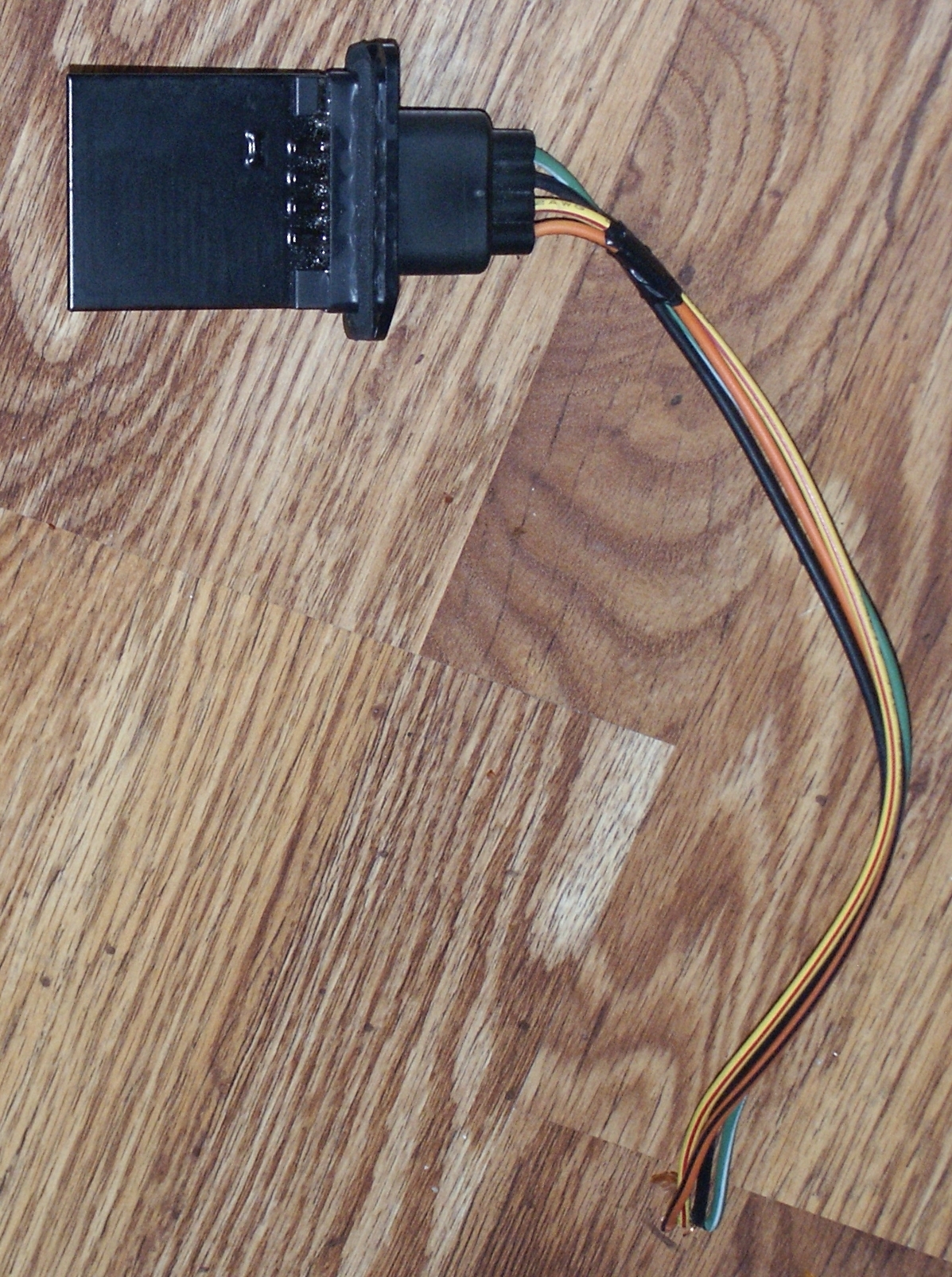

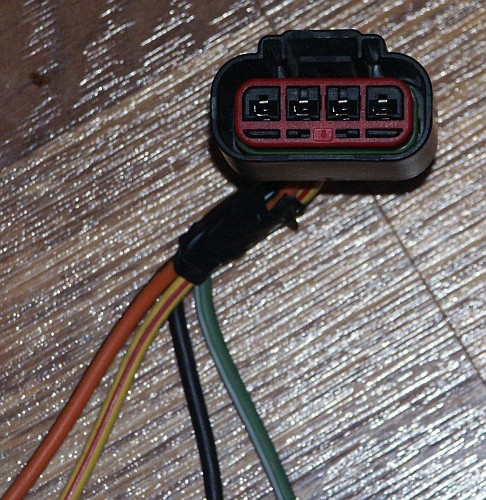

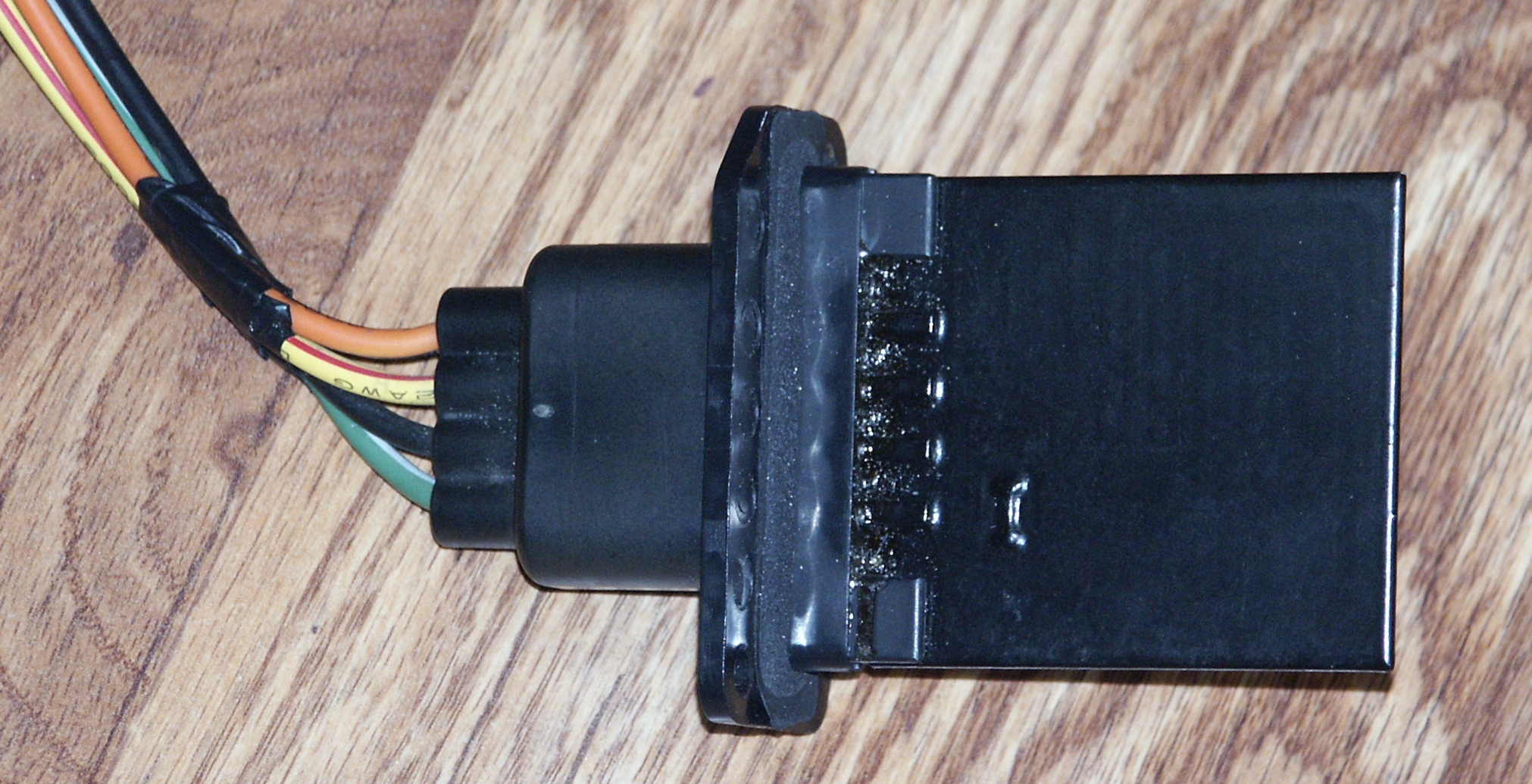

Here are a couple closeup pictures of the new blower resistor pigtail

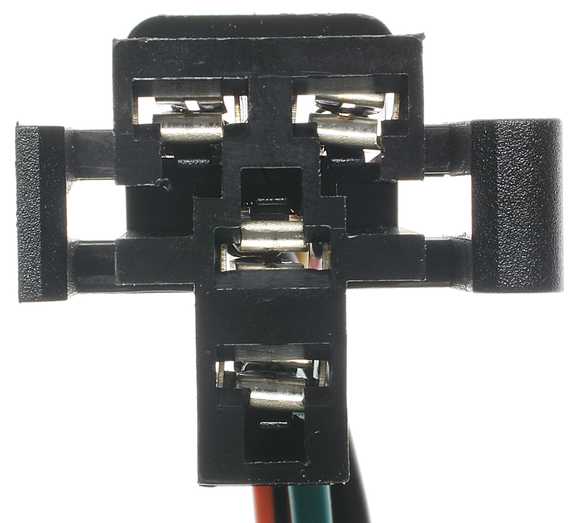

The blower resistor wiring pigtail is also avaliable aftermarket from NAPA with color coded wires. But the napa blower resistor pigtail does not include the wire crimps or adhesive heatshrink tubing like the resistor pigtail kit that you can purchase at your local ford dealership.

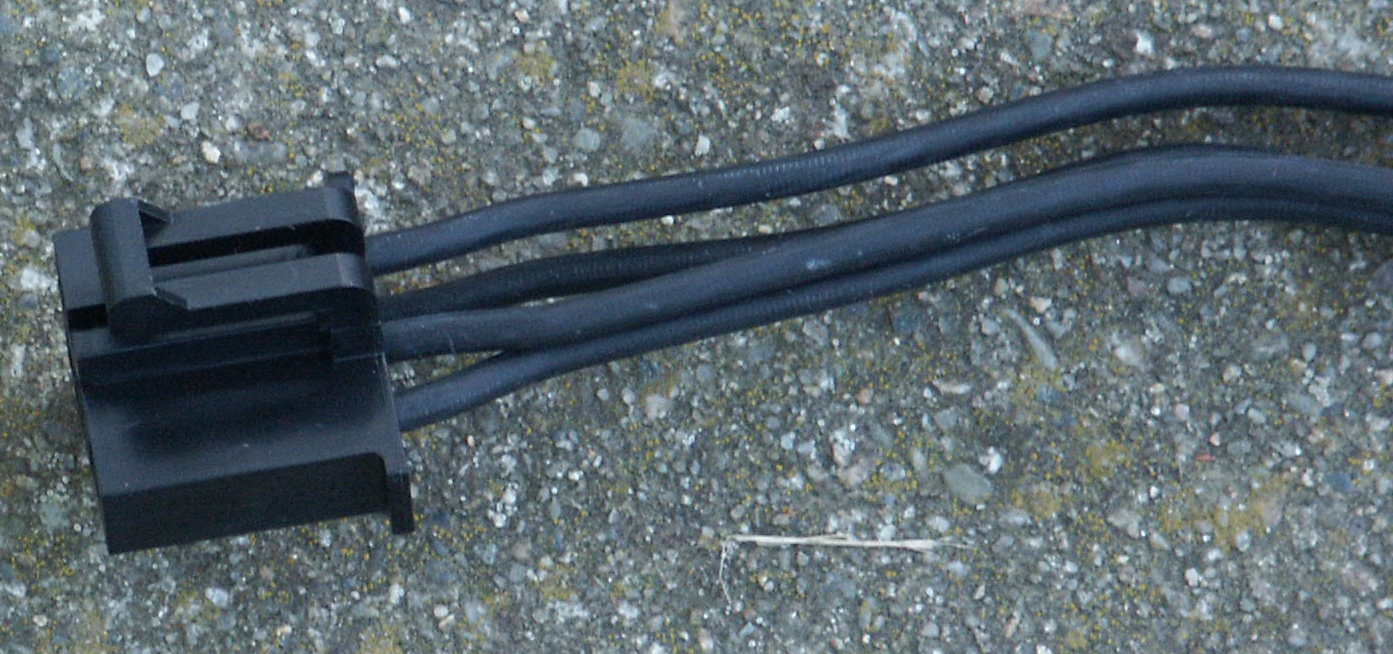

And here is the blower resistor pigtail after being removed from the blower resistor.





Here's the harness with the resistor pigtail cut off.



And after the wiring insulation has been stripped off the ends, the heatshrink tubing slid on, and the crimp connectors crimped on.

Remember to slide the heatshrink tubing on the wiring before crimping the connections together.

Also, make sure to stagger the splices at different locations so that you don't end up with a really huge diameter glob of crimp connectors next to each other.



And after heating a the heatshrink tubing to shrink it down in size.

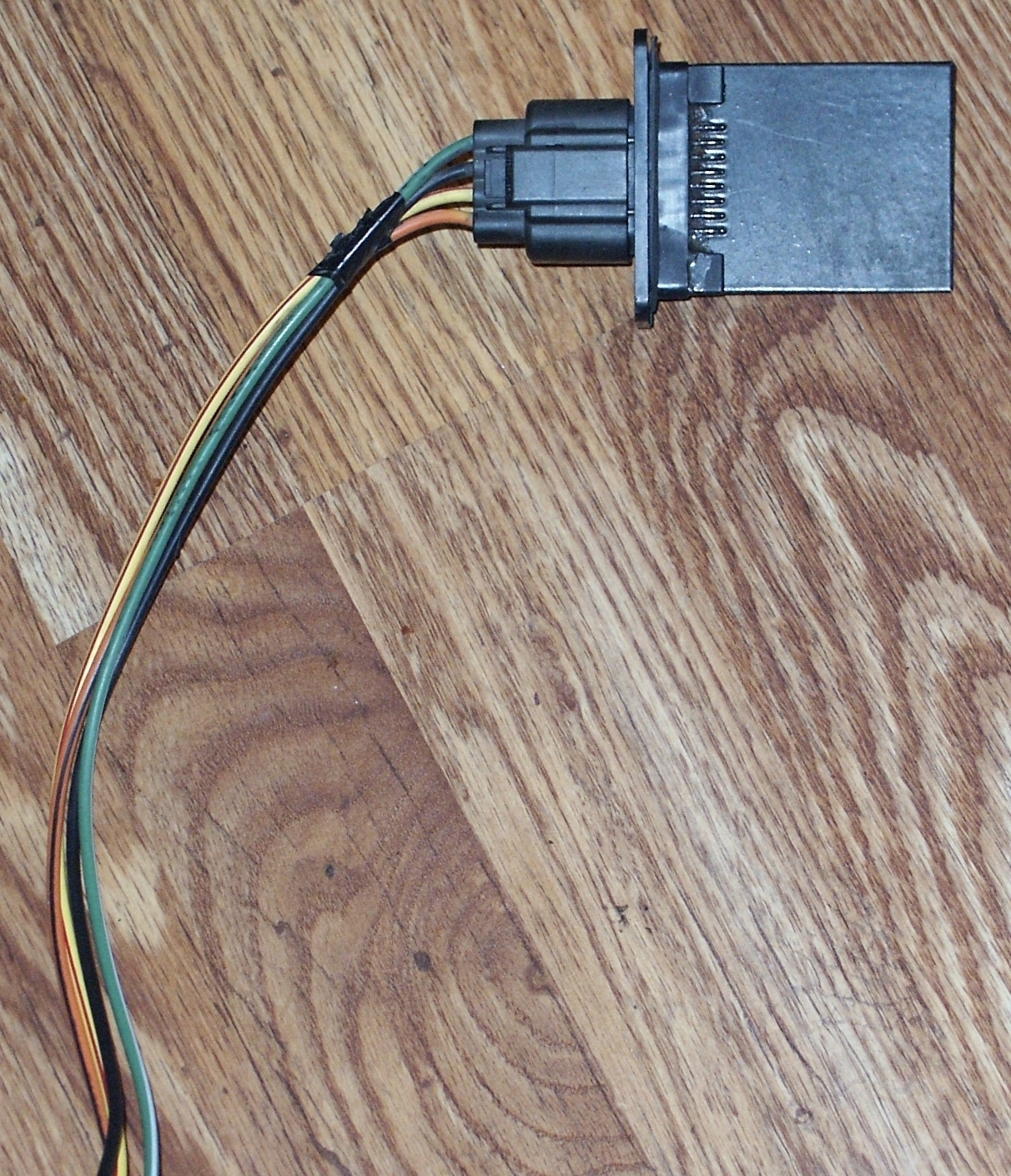

Now the wiring is placed back inside the black looming and wrapped with some electrical tape.



And now the wiring is placed back in the proper position to connect to the blower resistor and then slid onto the resistor connector.

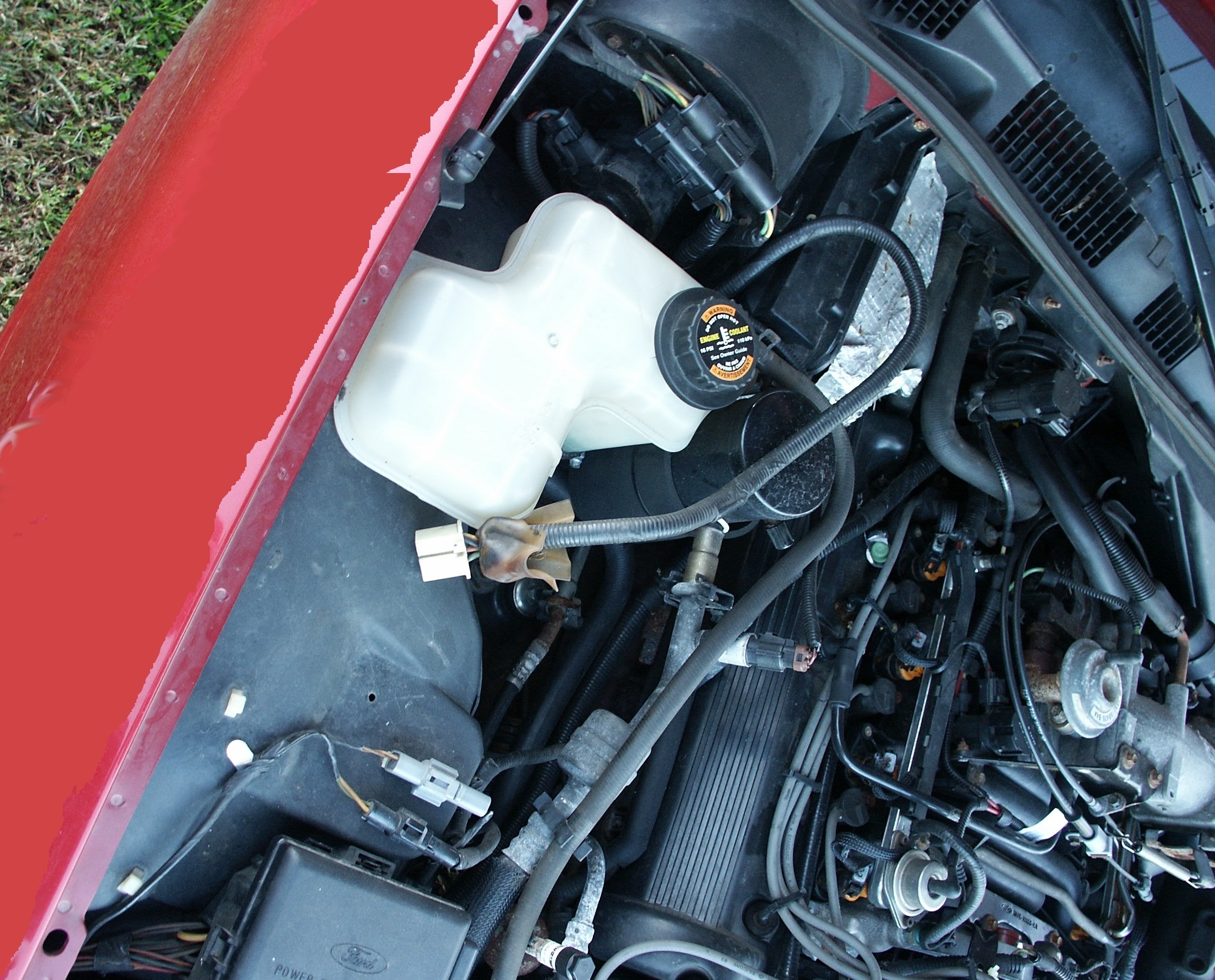

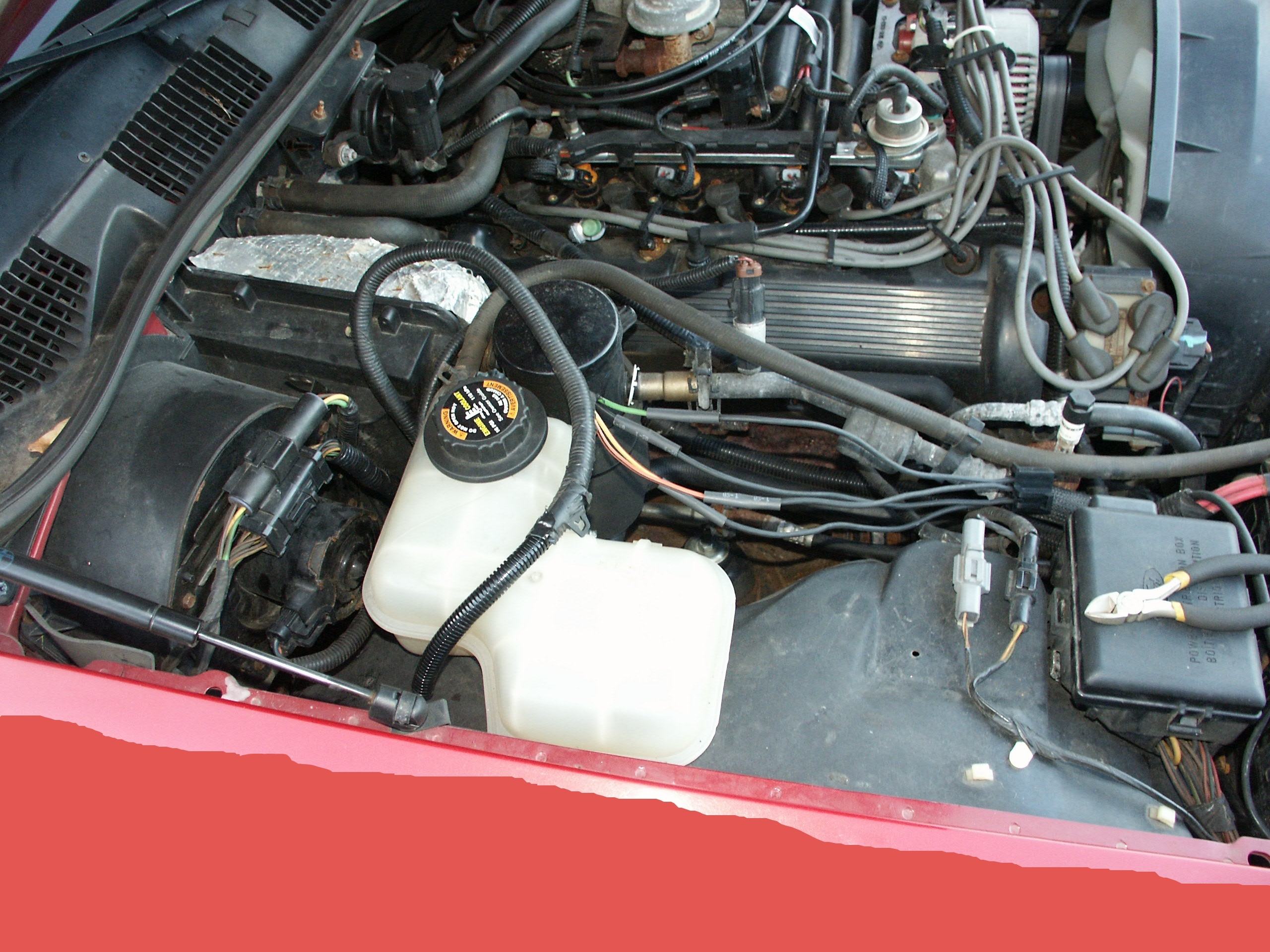

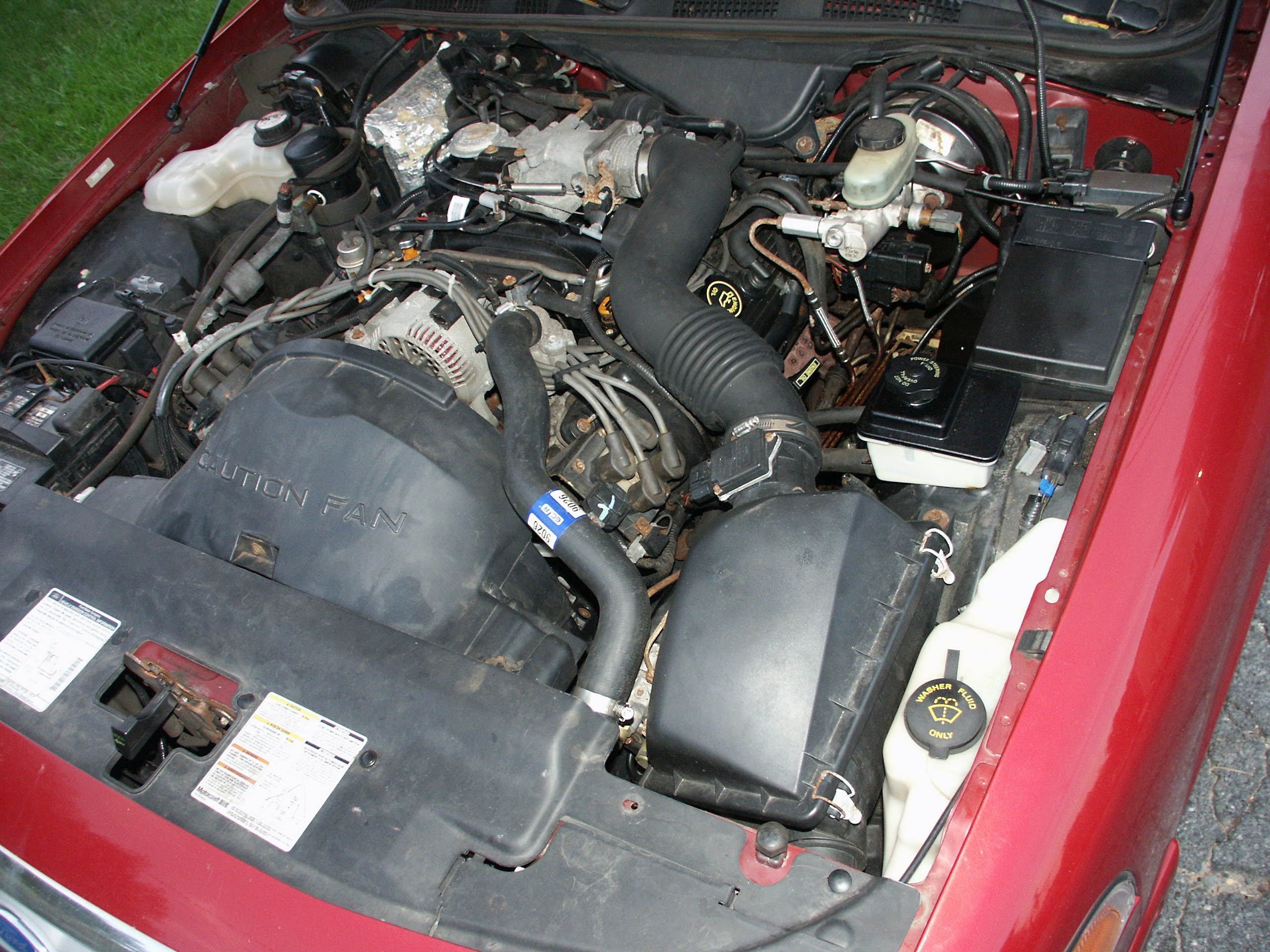

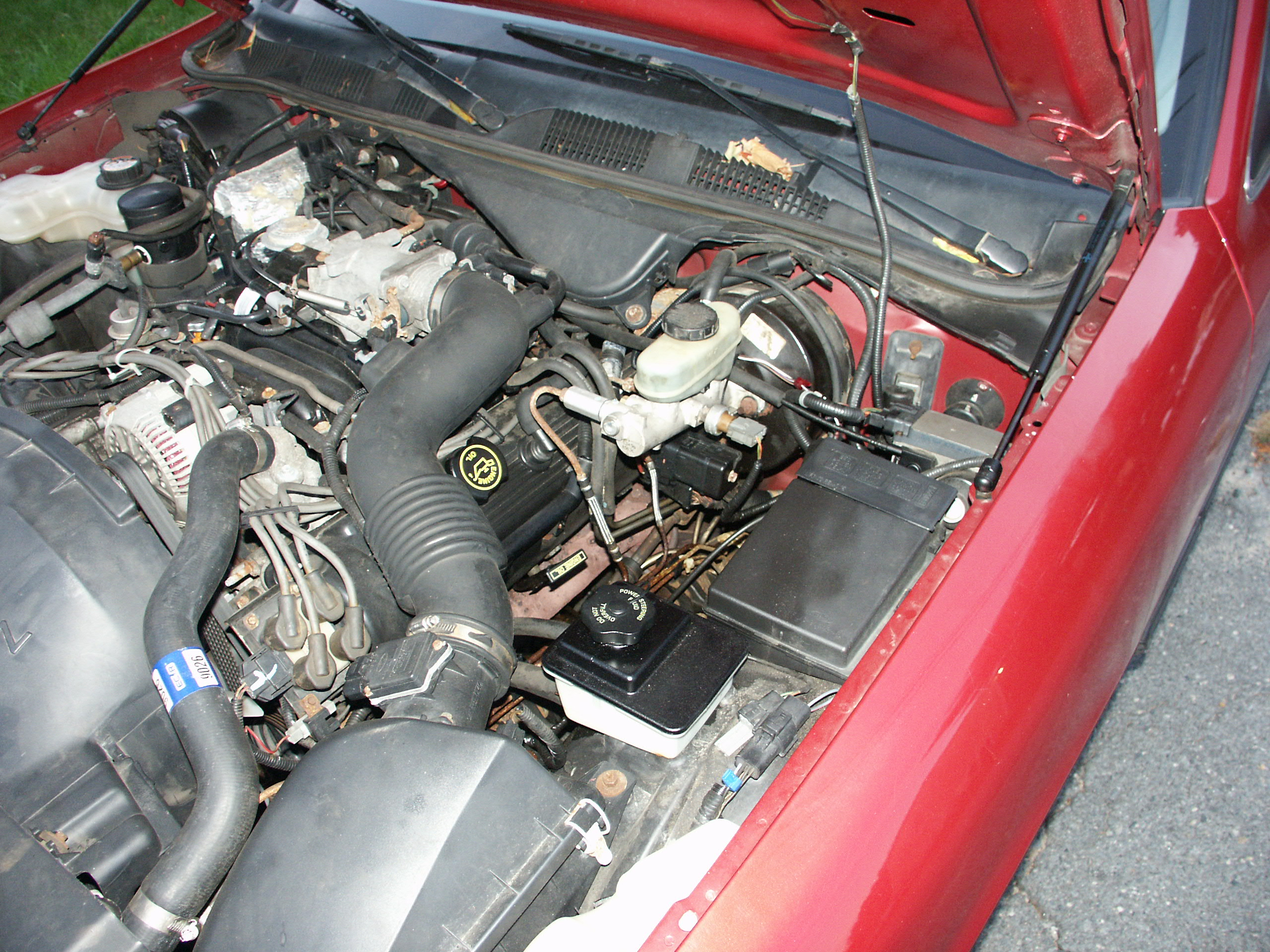

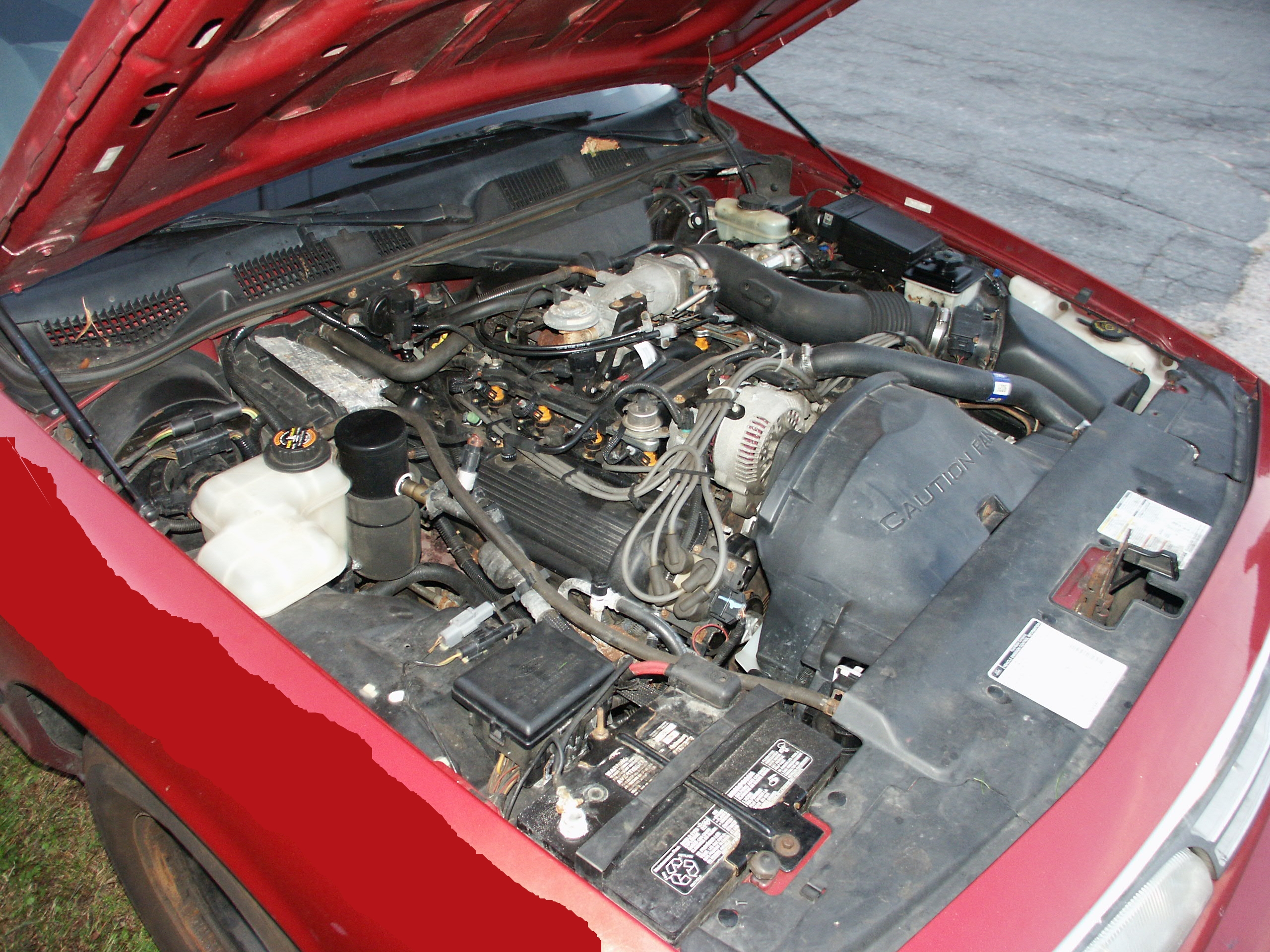

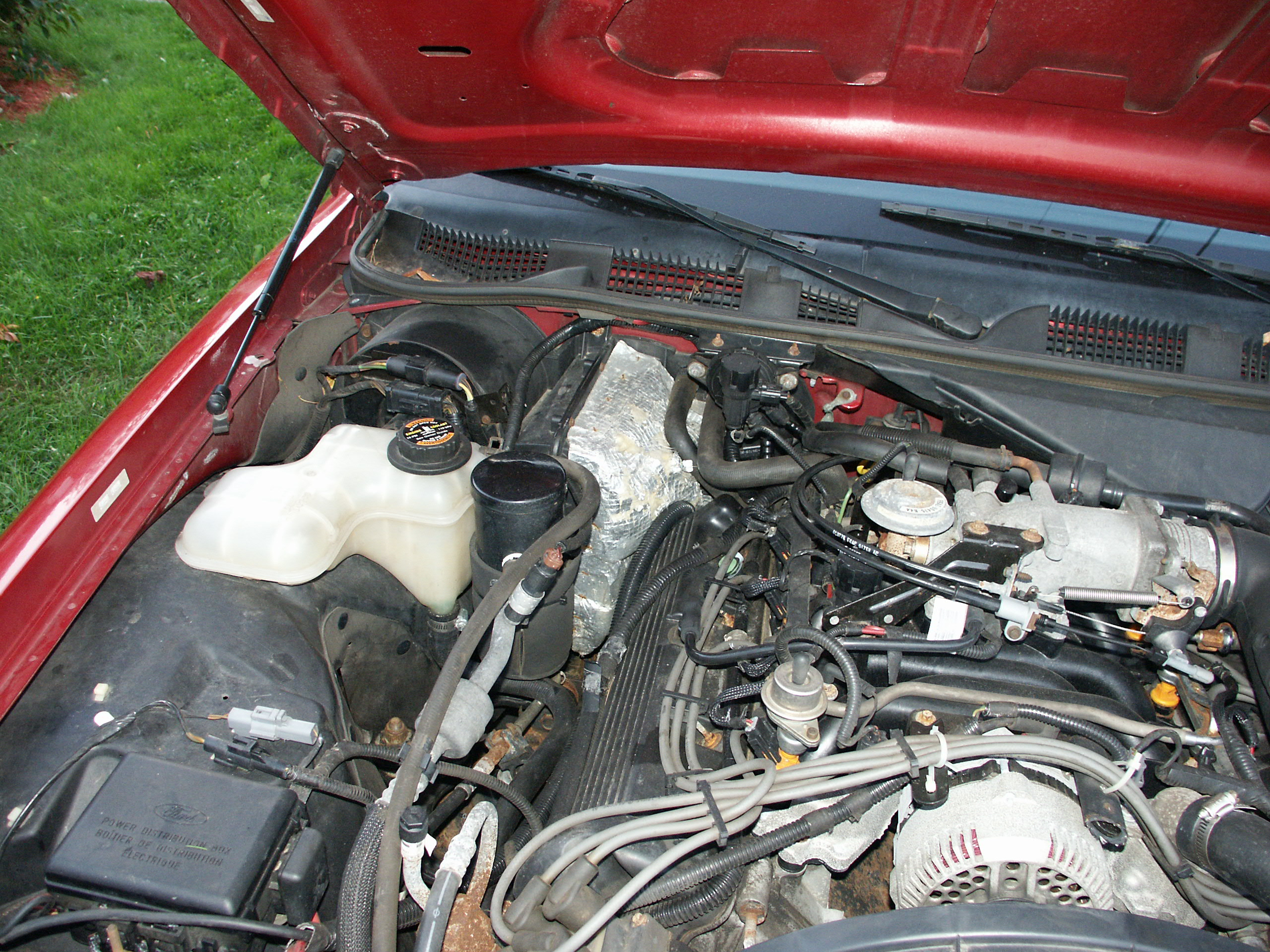

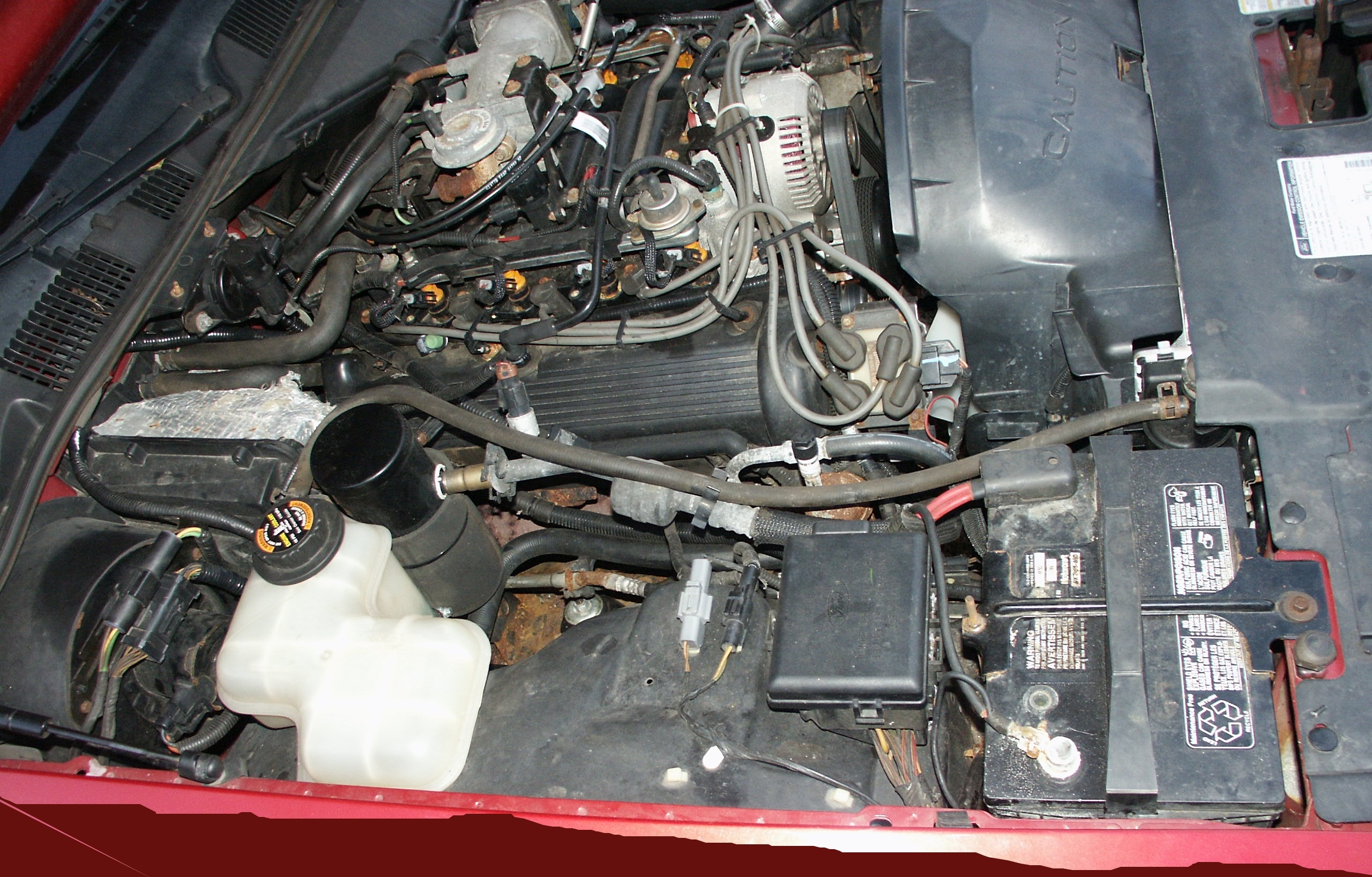

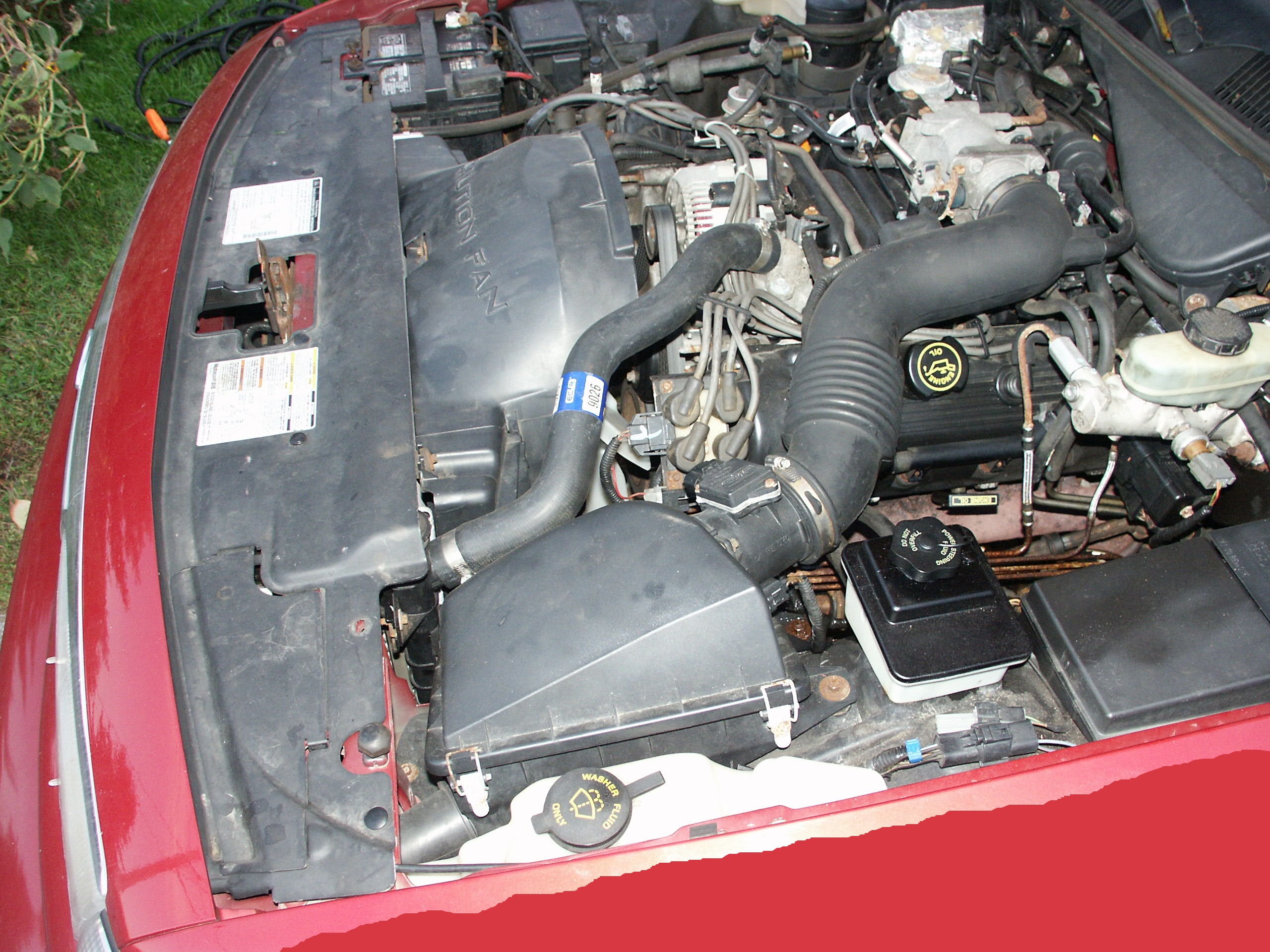

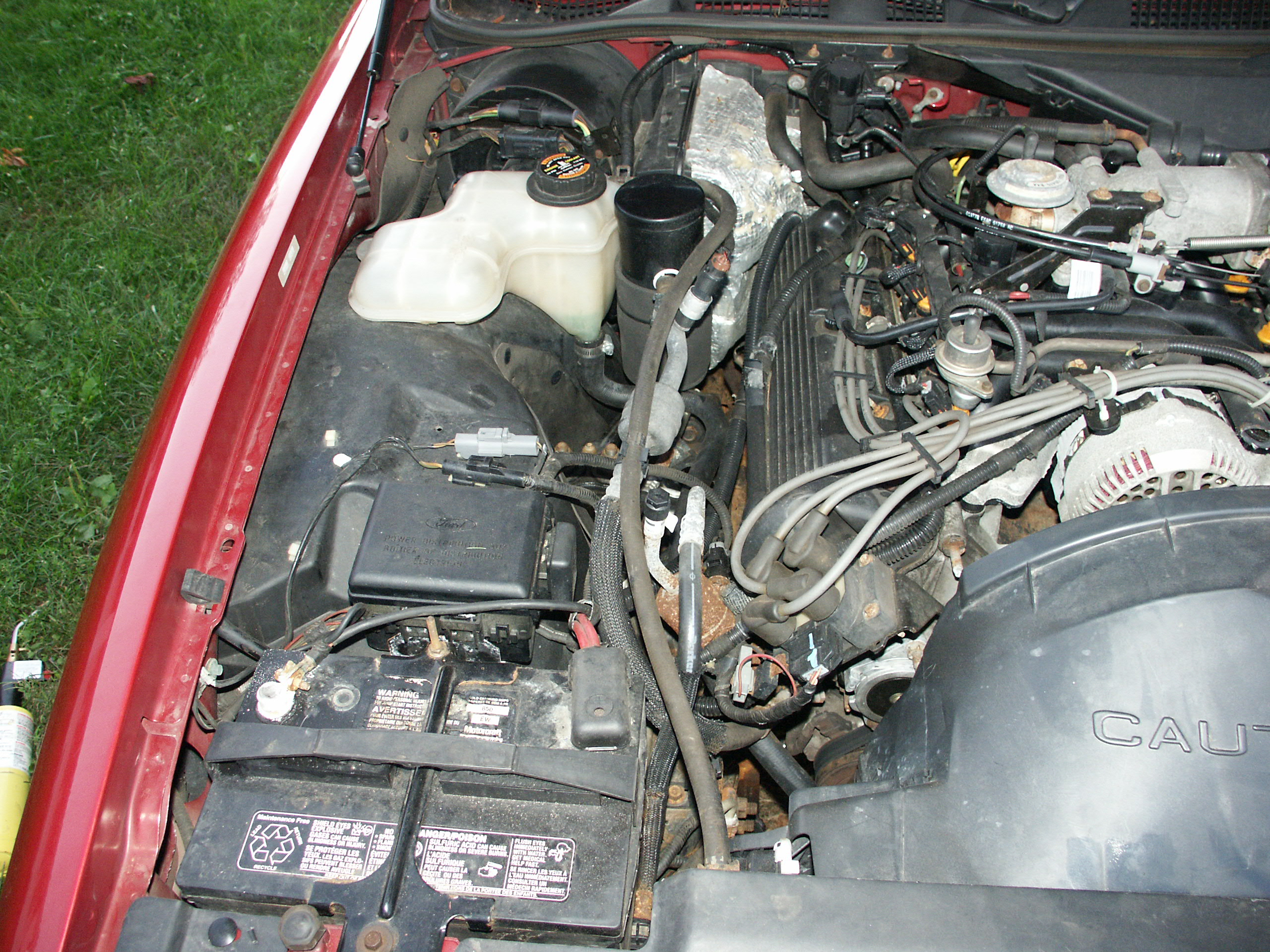

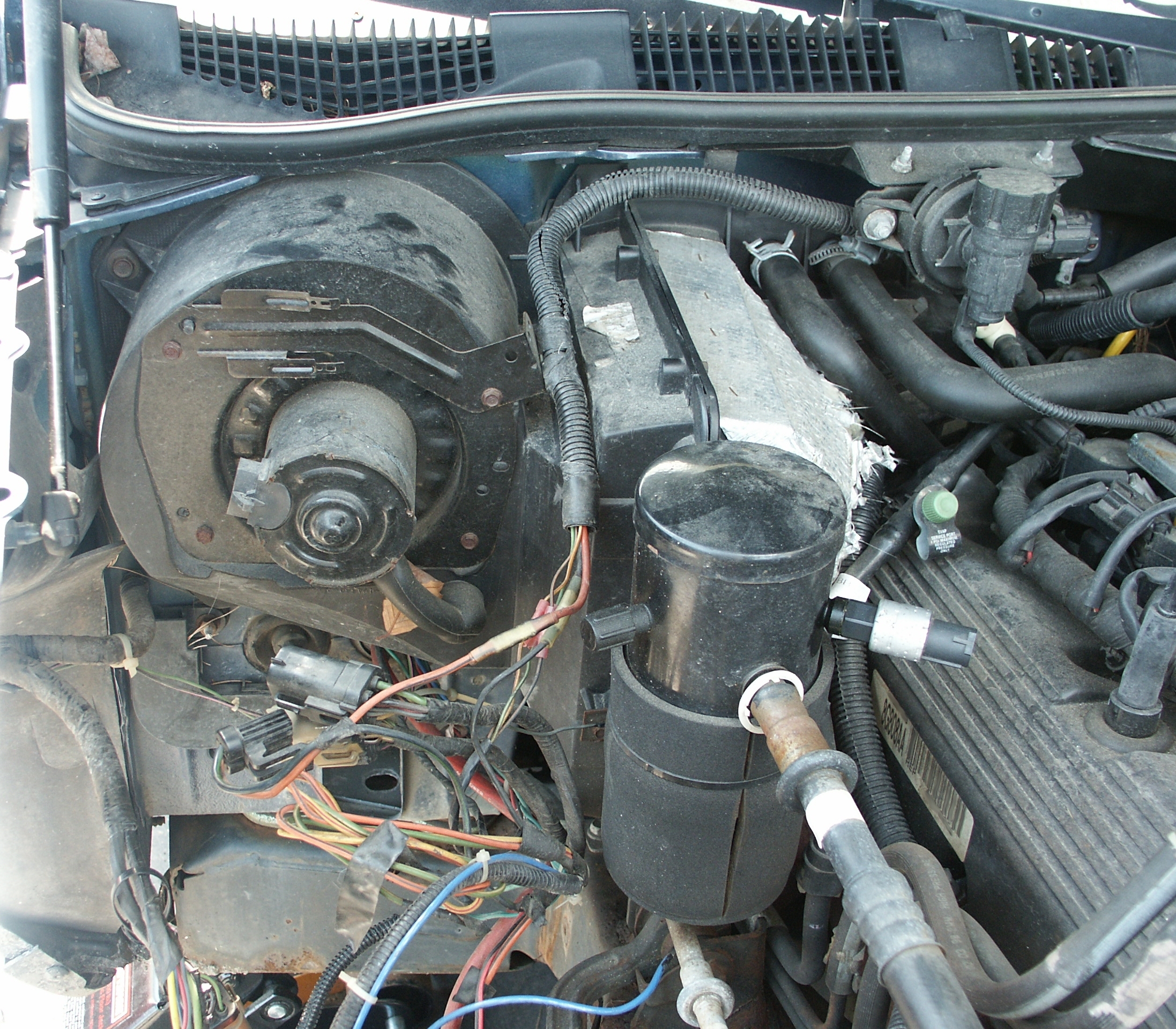

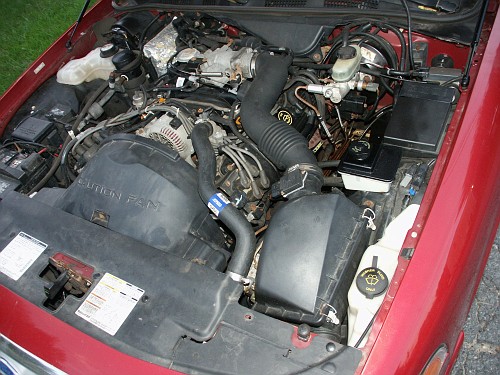

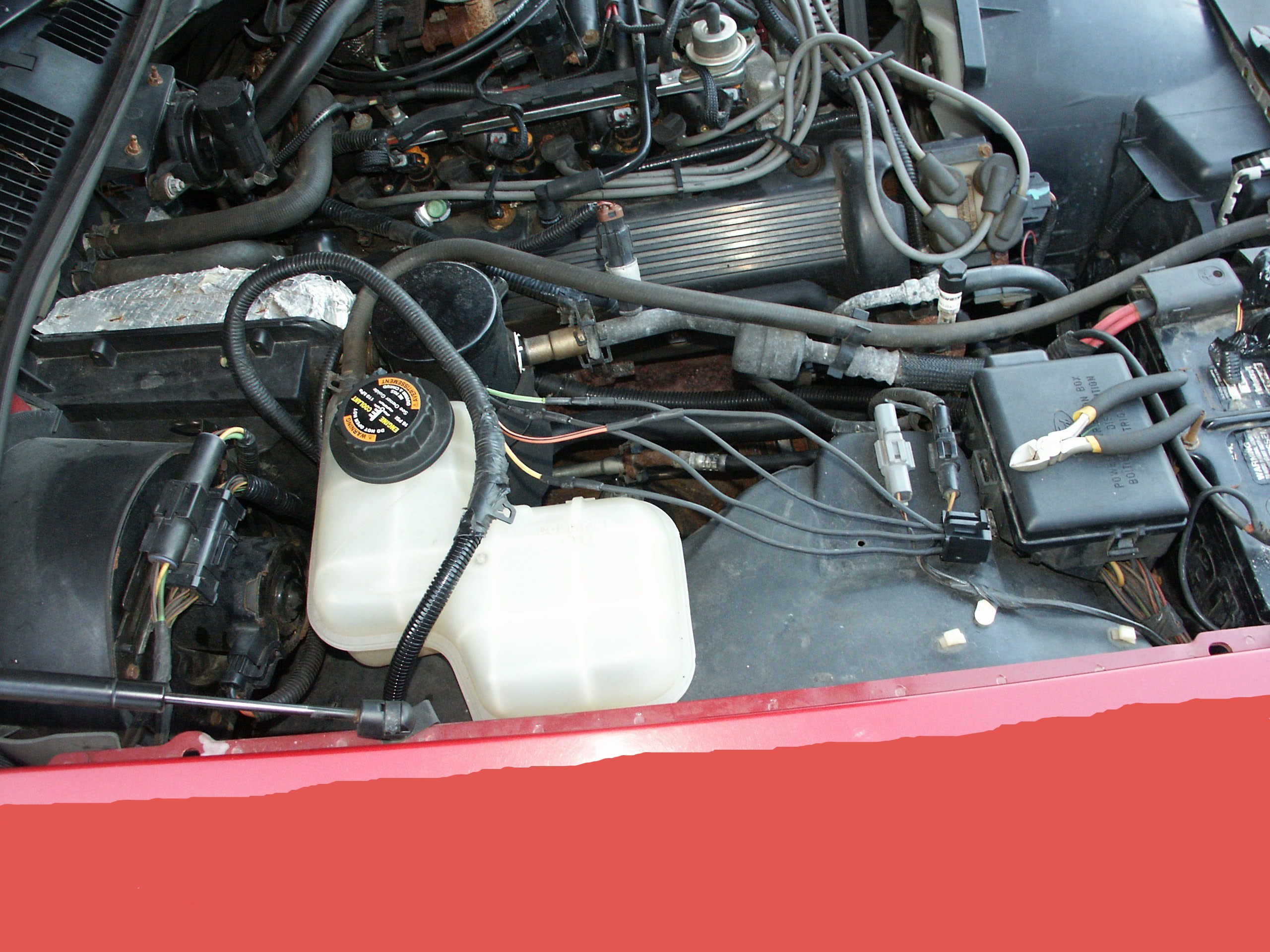

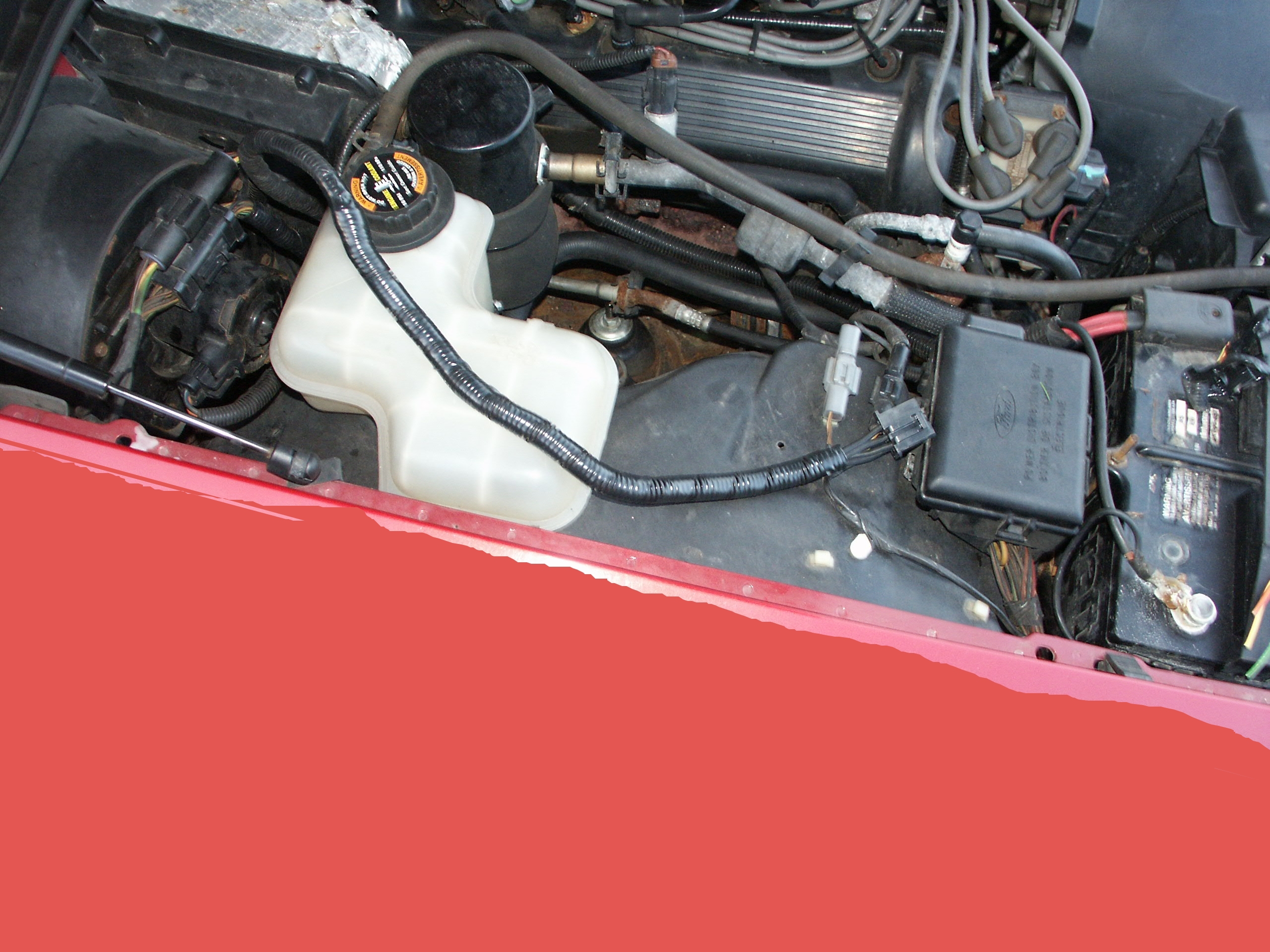

And a few more pictures from various angles around a 1997 police cruiser engine bay.









The new pigtail install looks quite professional. Most people would not be able to tell that a new wiring pigtail had been spliced on at a quick glance.






Blower Resistor Part Numbers

Ford Part Number	Motorcraft Part Number	NAPA Part Number	SMP Part Number (Standard Motor Products)	Comments
E3AZ-19A706-A	YH-1702	ECH-BR307 (Manufactured by SMP)	RU-403	Blower Resistor 1990-mid2005 crown victoria and grand marquis with manual climate controls without eatc manufactured before 12/06/05
4W7Z-19A706-A	YH-1717		RU-408	Blower Resistor 2005-2010 crown victoria and grand marquis with manual climate controls without eatc manufactured from 12/06/05 Will not work in 1990-2004 crown victoria evaporator housings

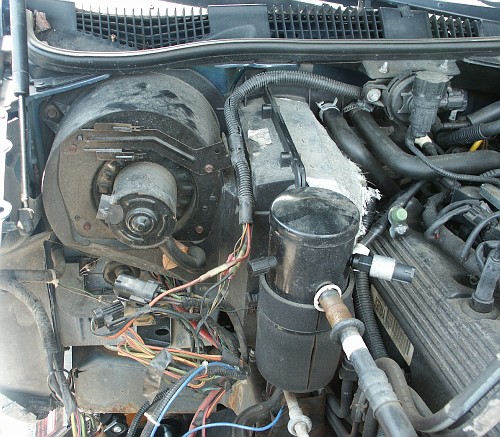

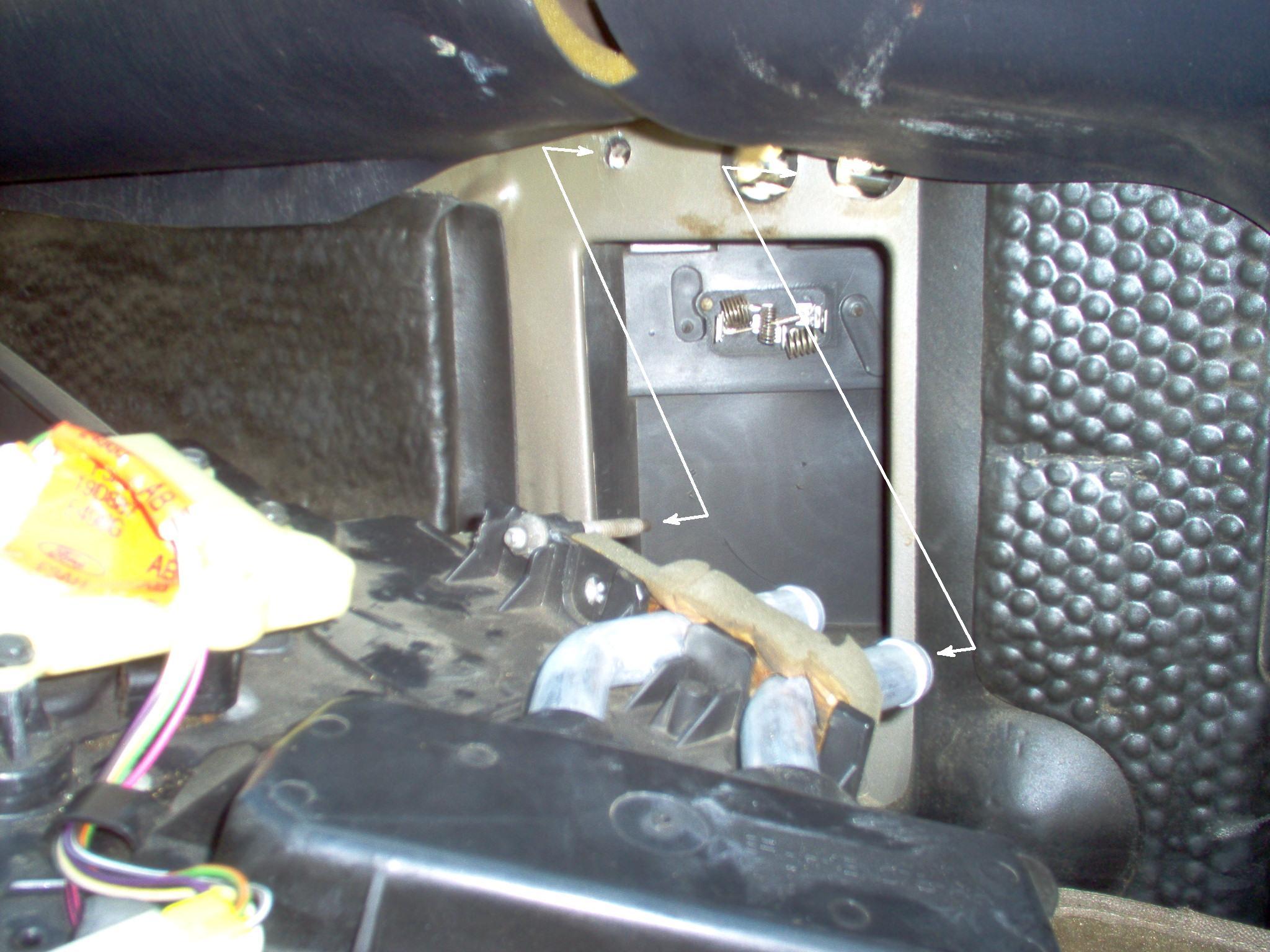

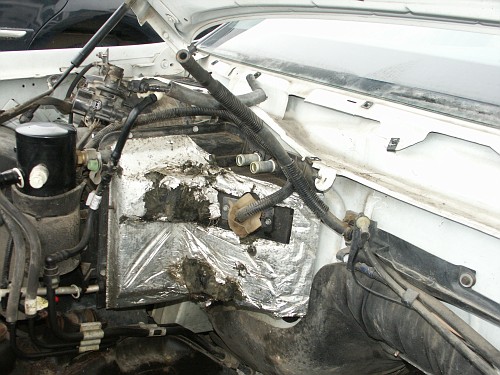

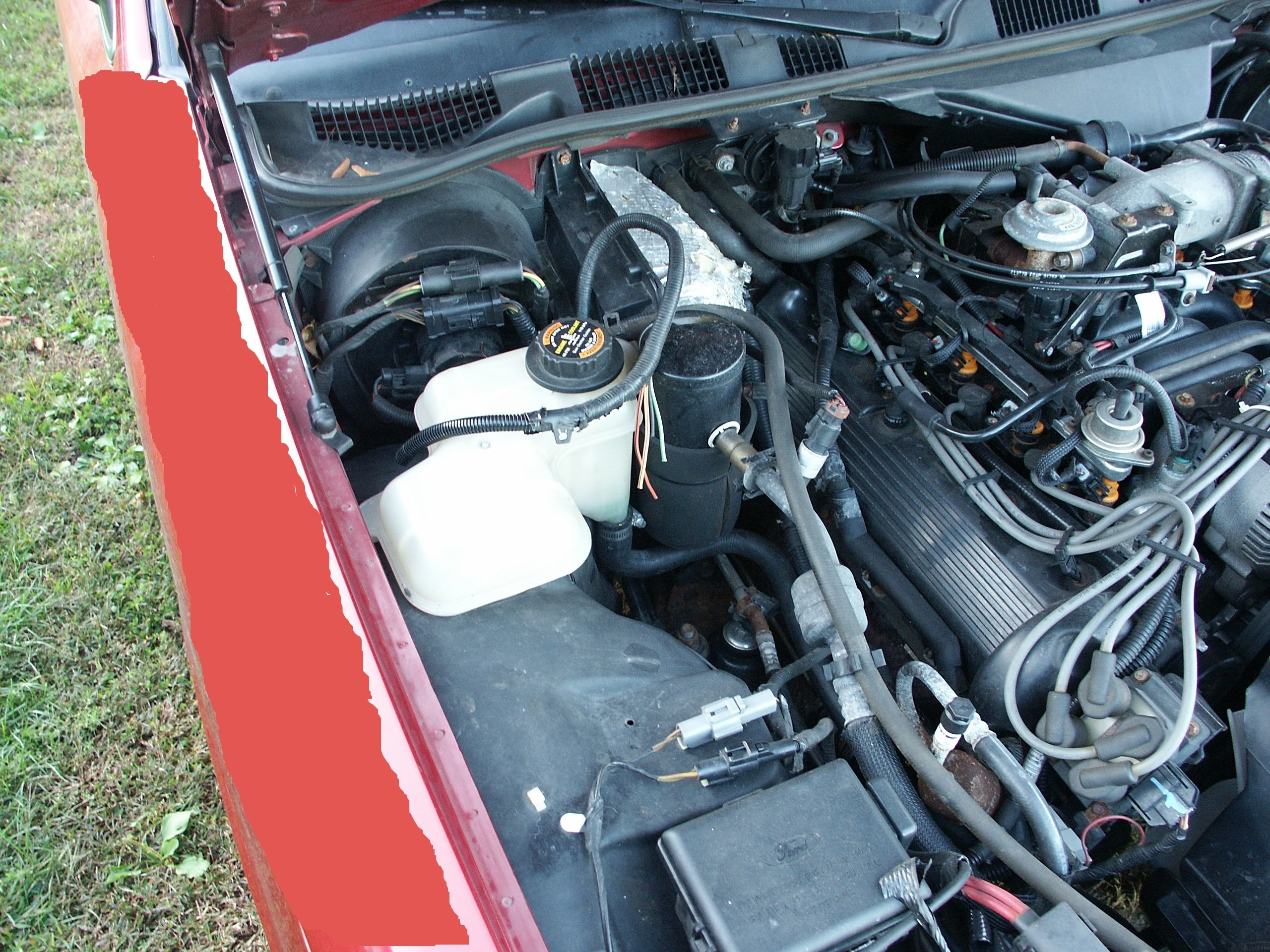

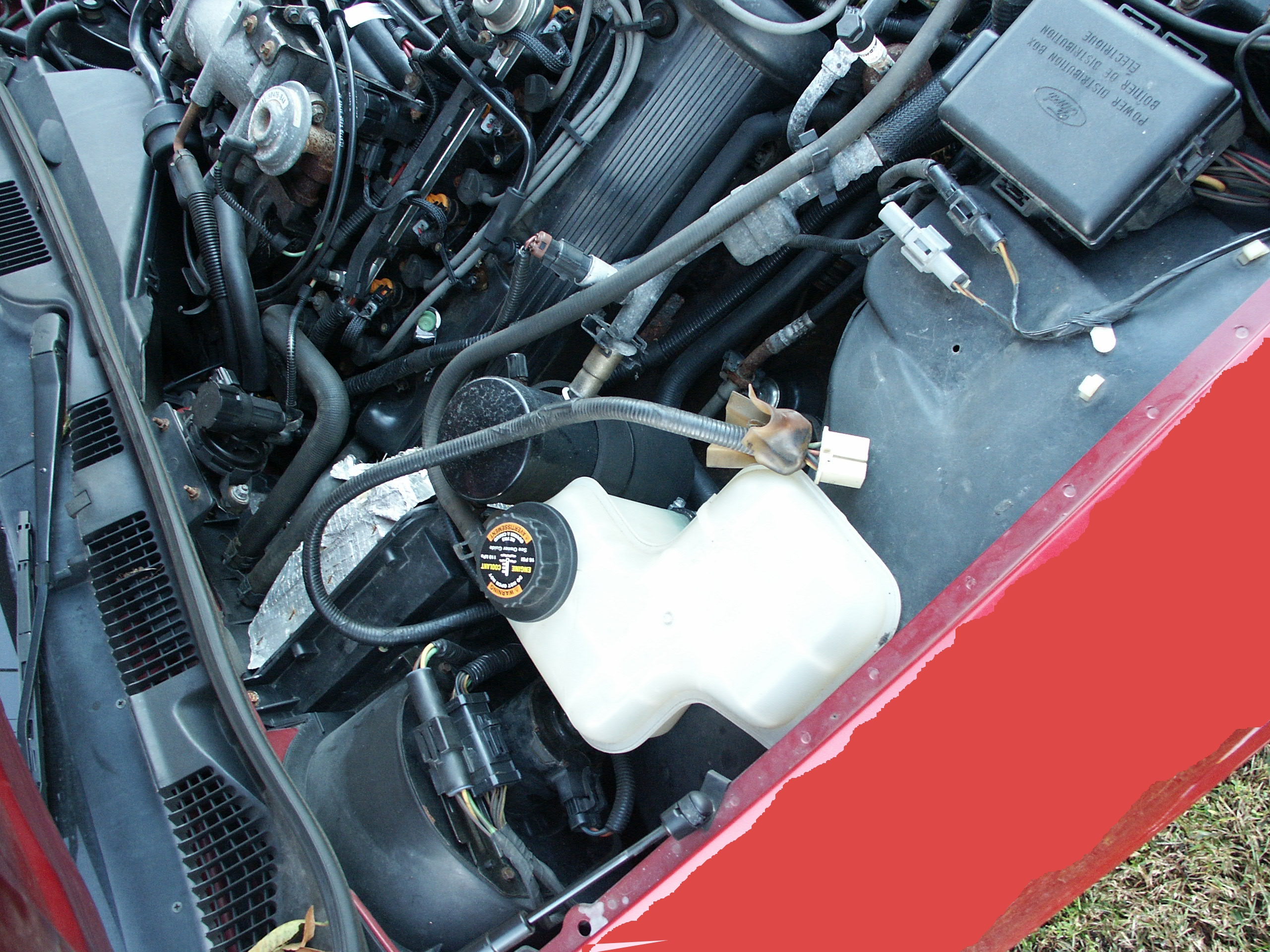

And here's where the blower resistor is located.

Note that this particular car is a 2000 crown victoria police interceptor. And that various parts have been removed including:
-Heater core hoses
-Windshield wiper cowl
-Engine assembly
-Transmission assembly

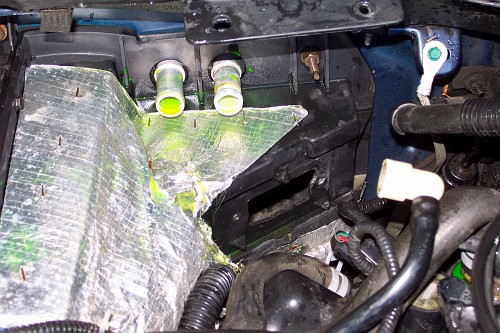

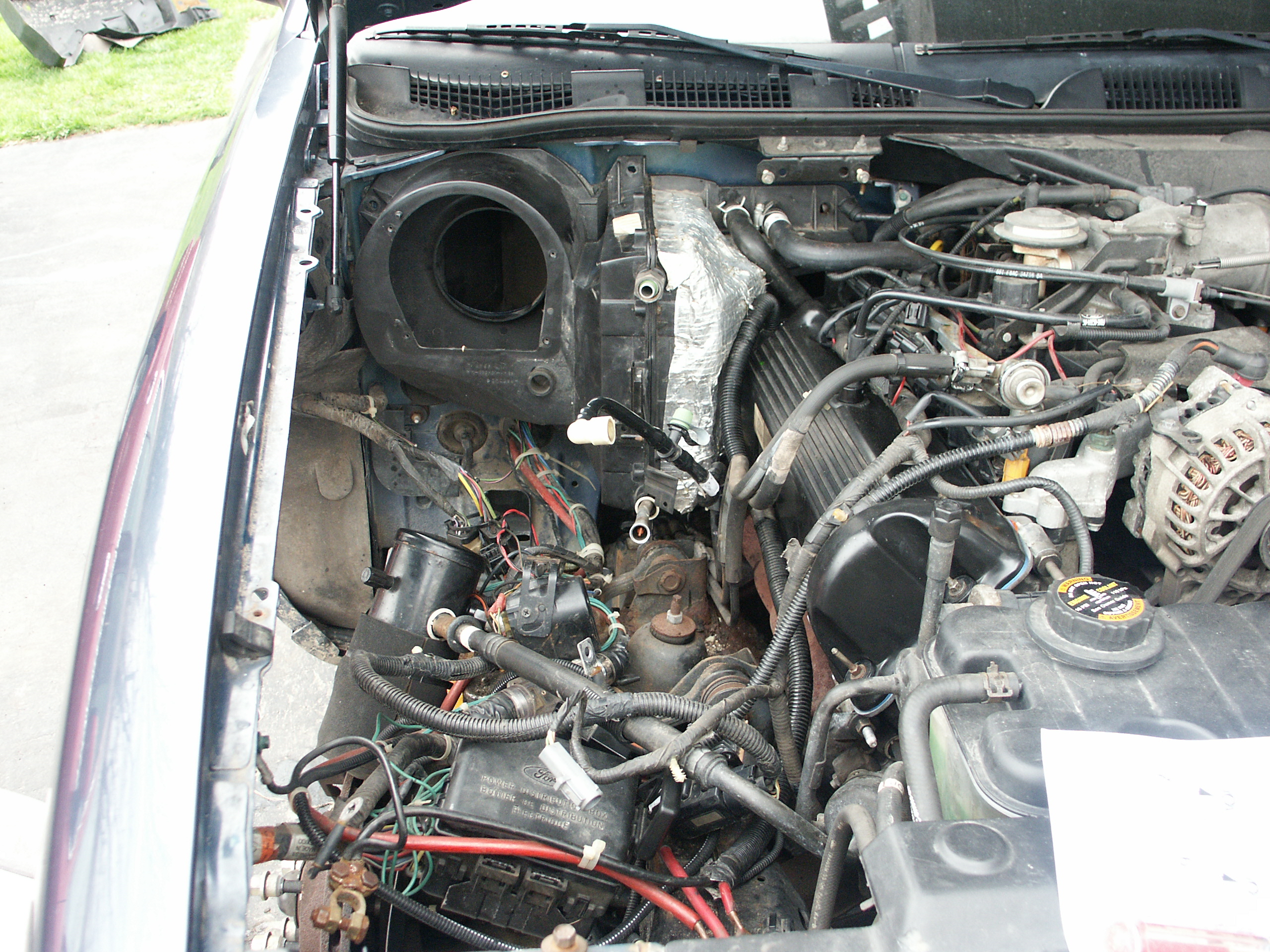

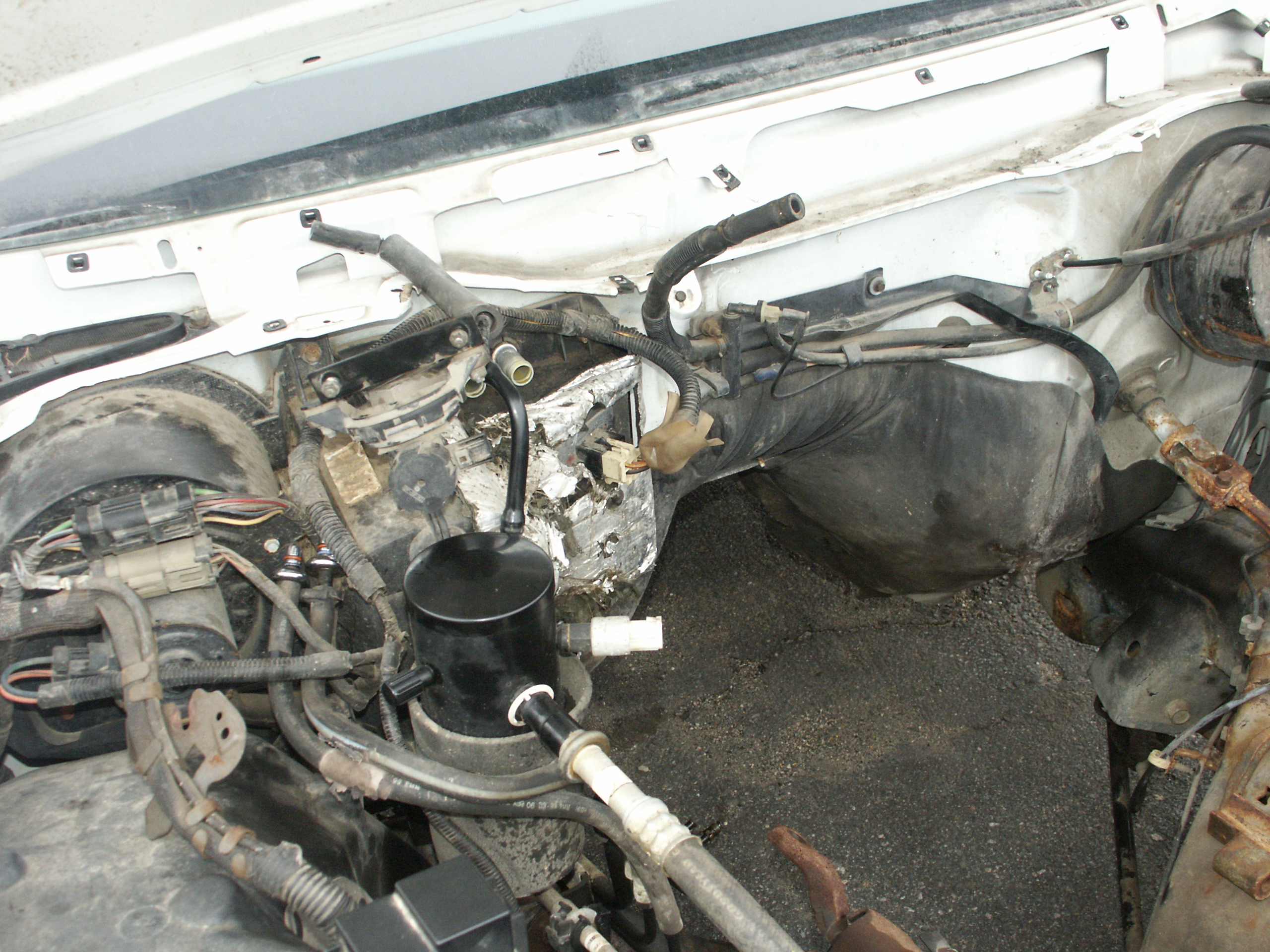

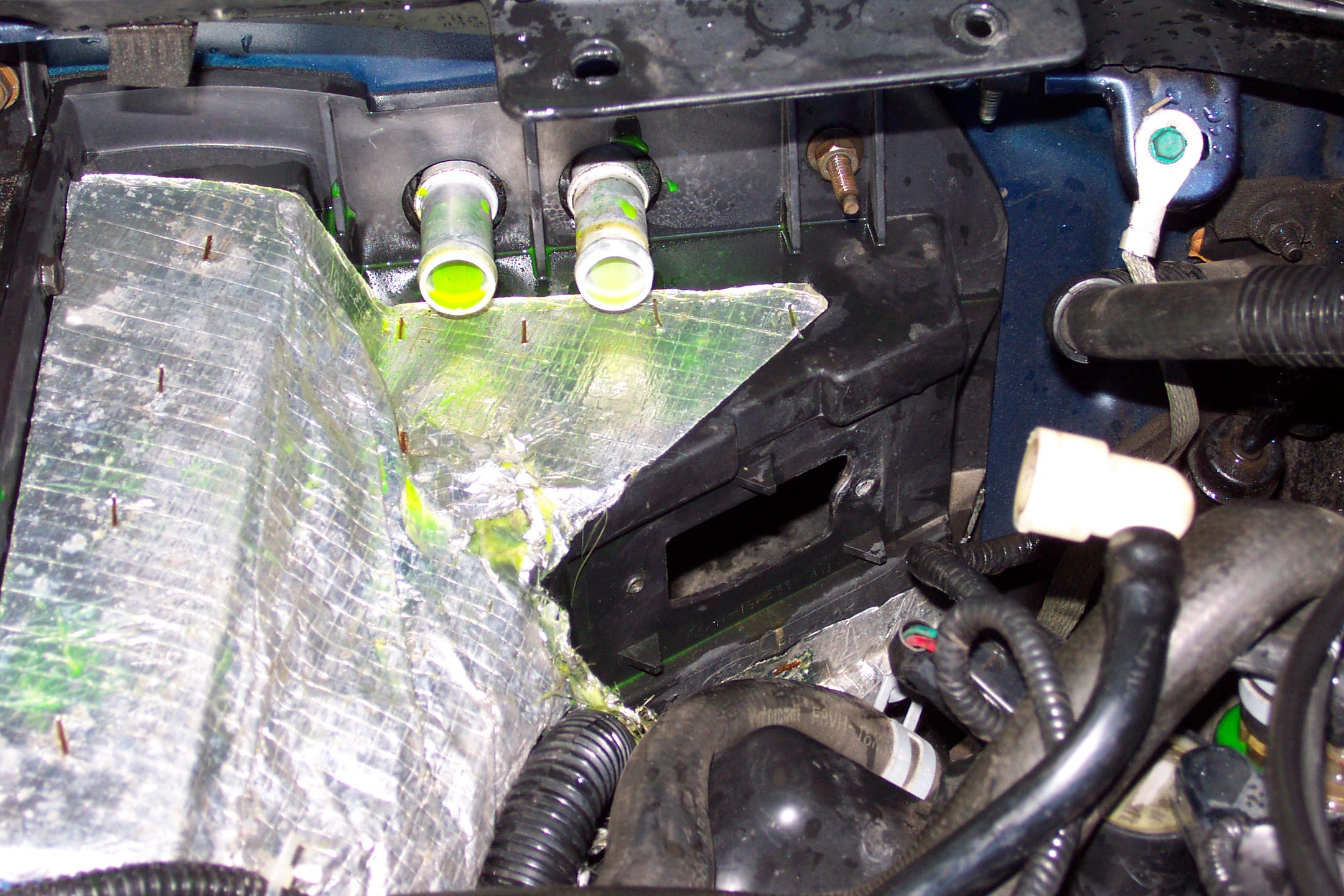

And here's a 1998 crown victoria police interceptor with the blower resistor removed.

With the engine installed, note how limited clearance is between the back of the valve cover and the a/c evaporator housing.

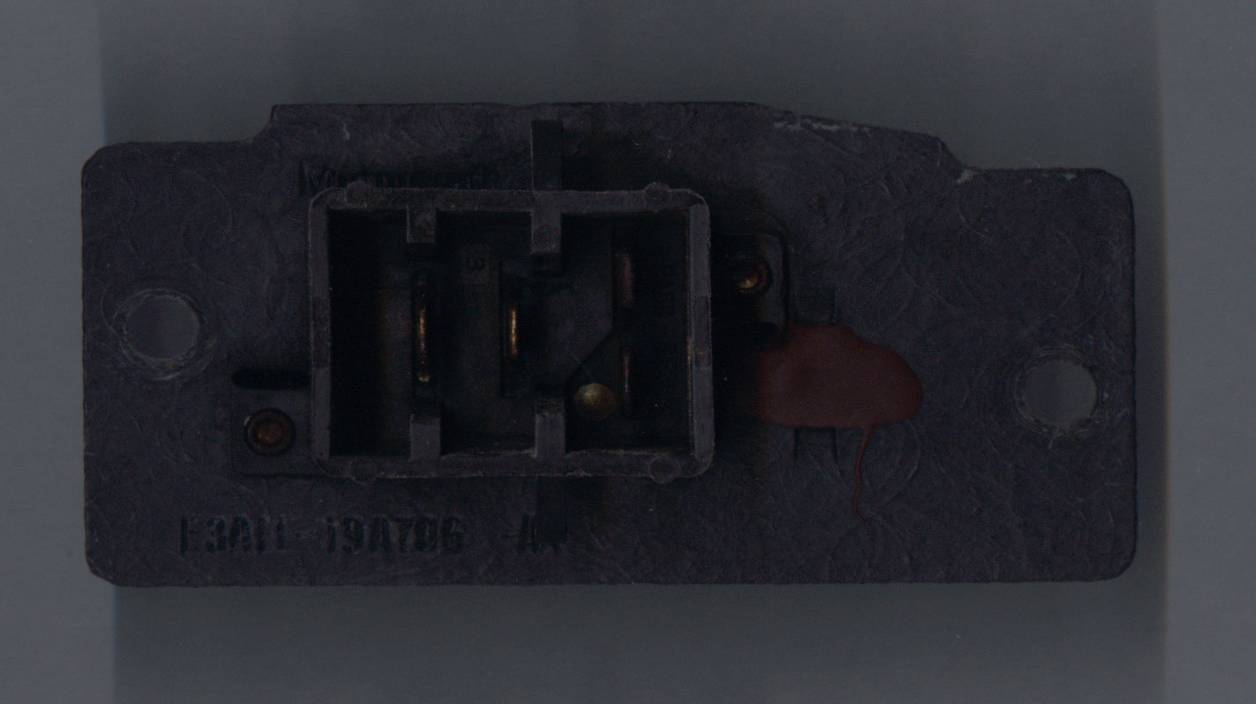

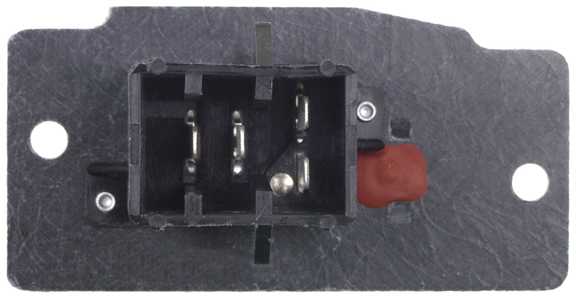

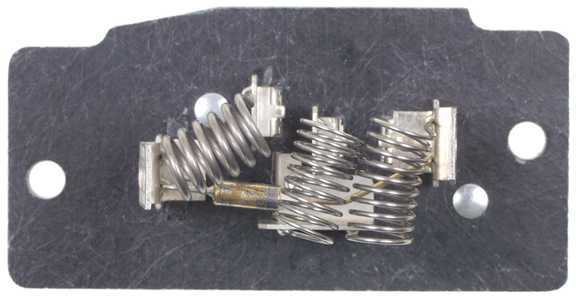

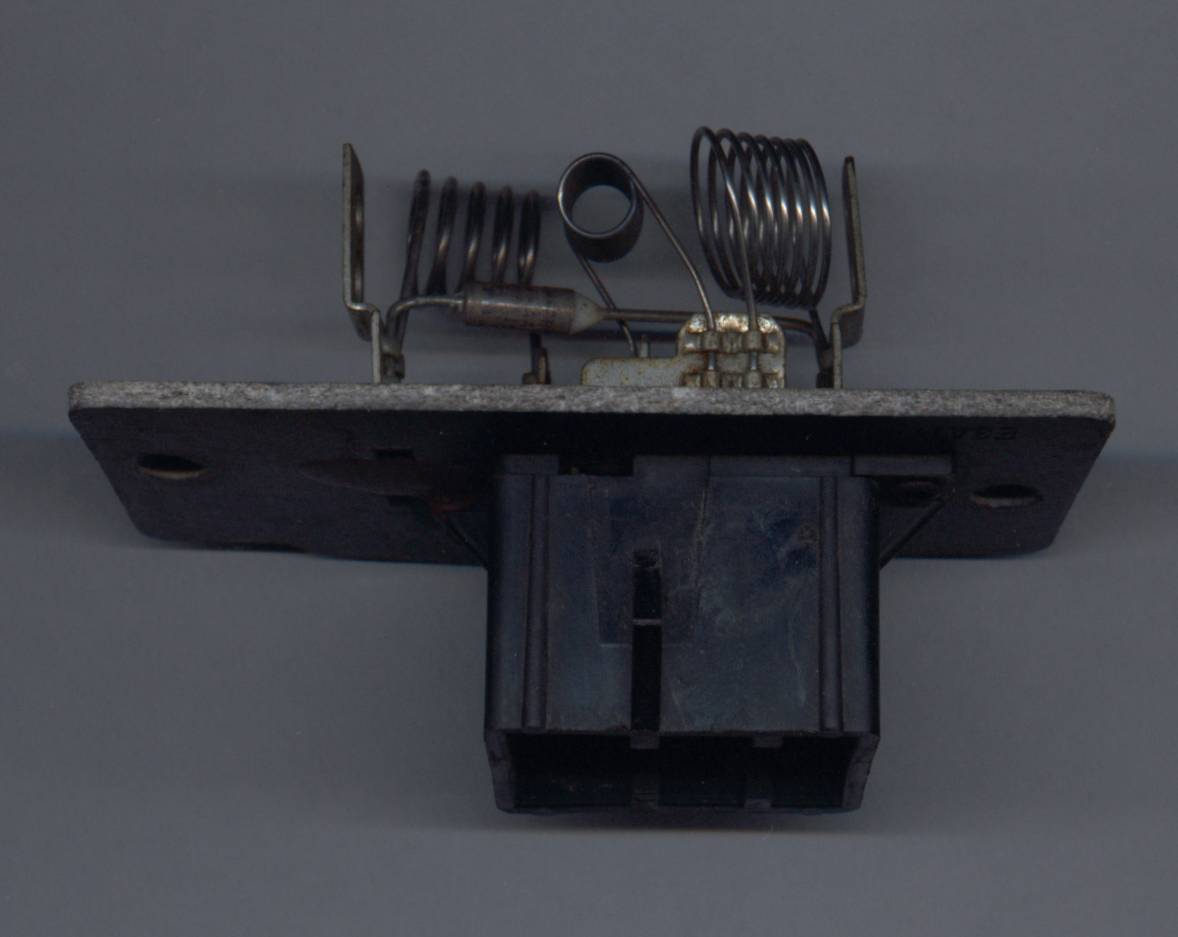

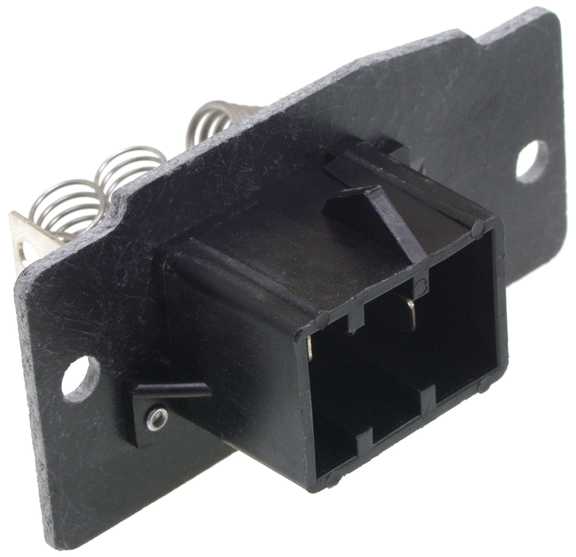

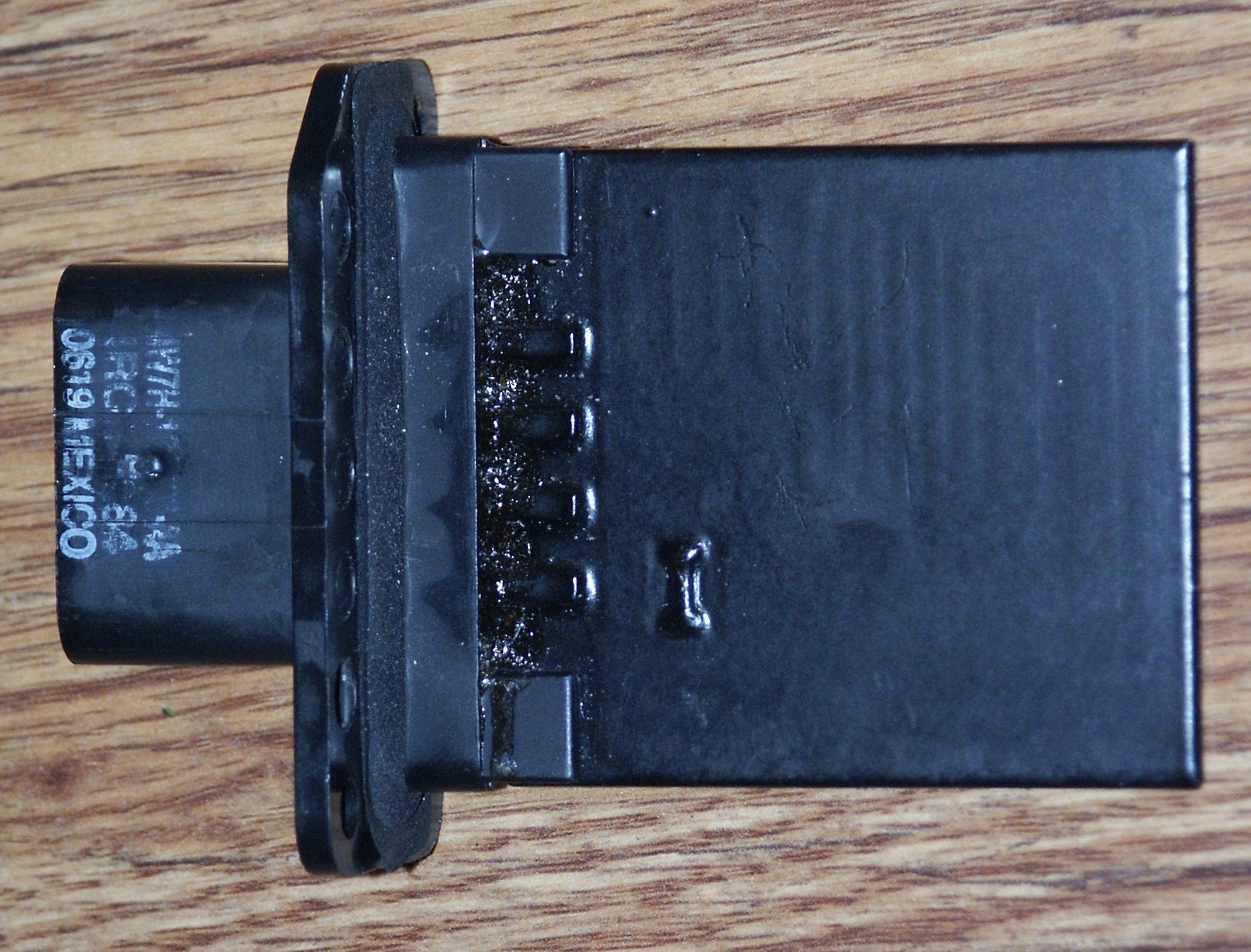

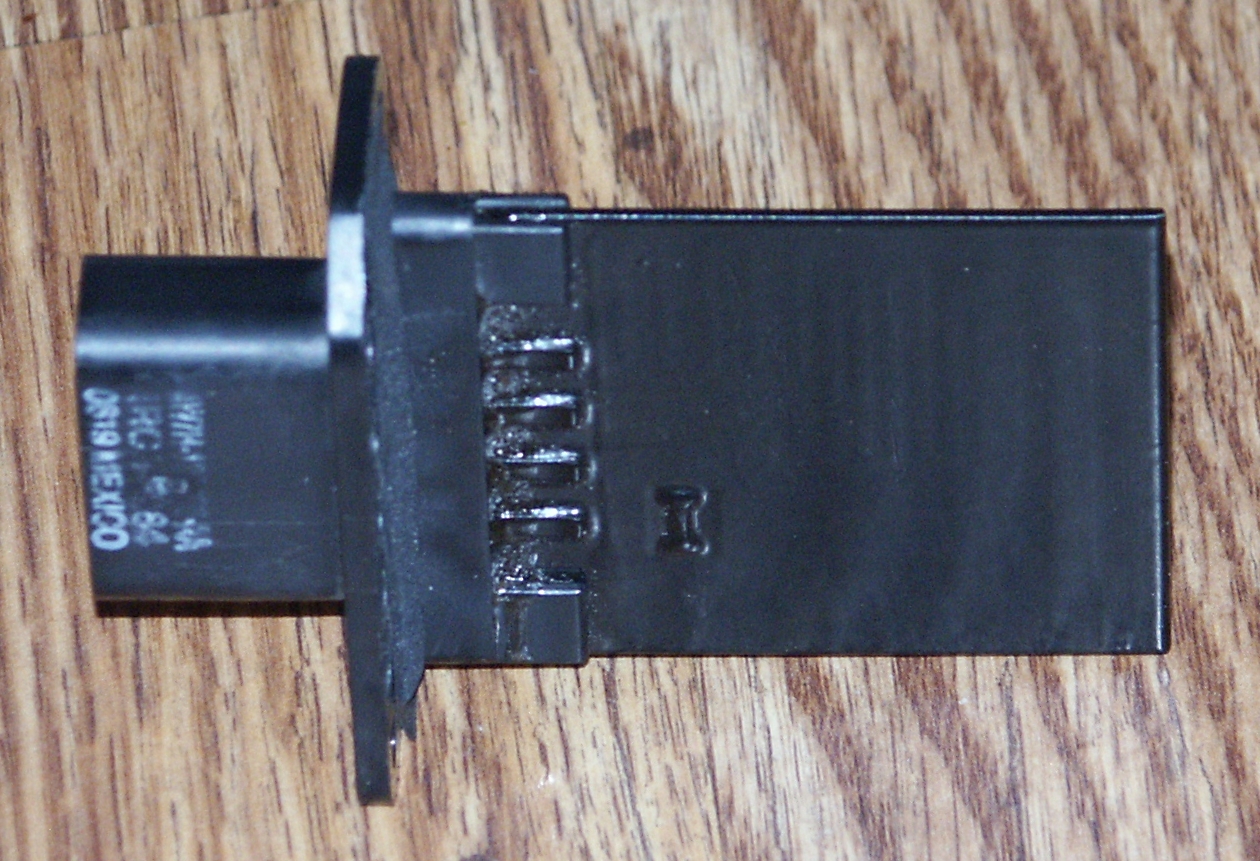

And the blower resistor itself.

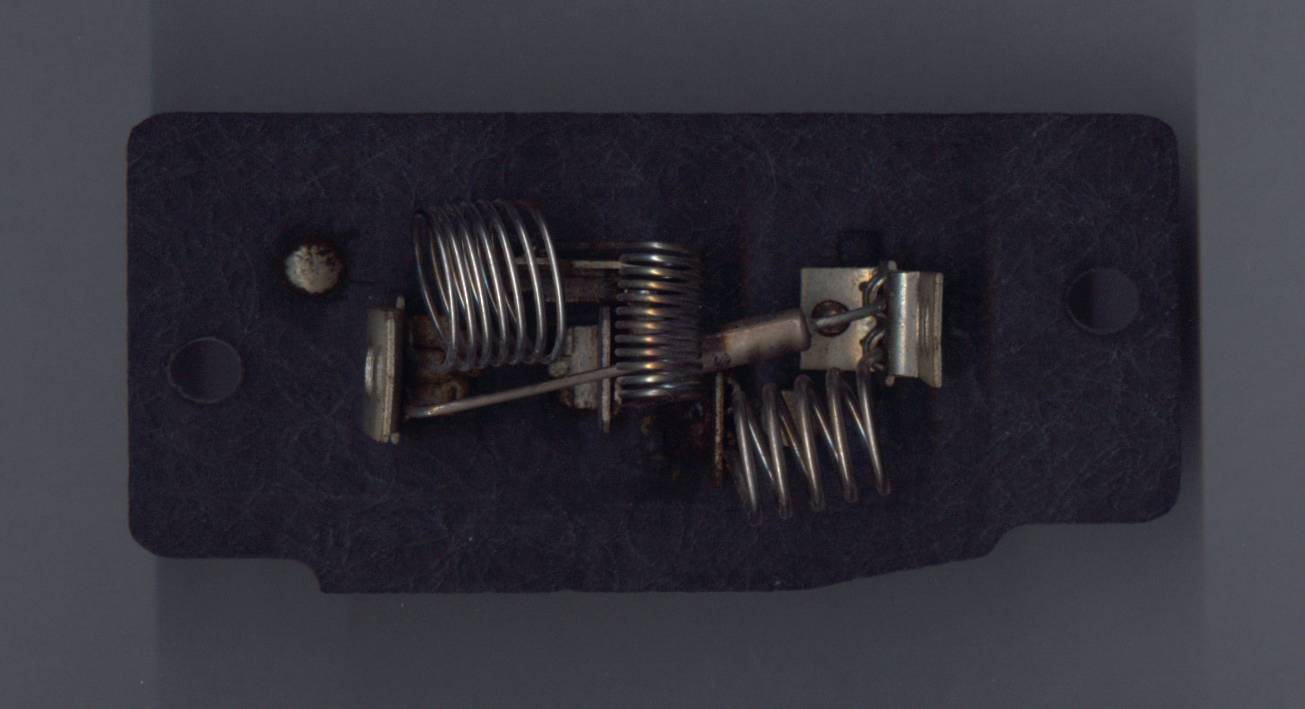

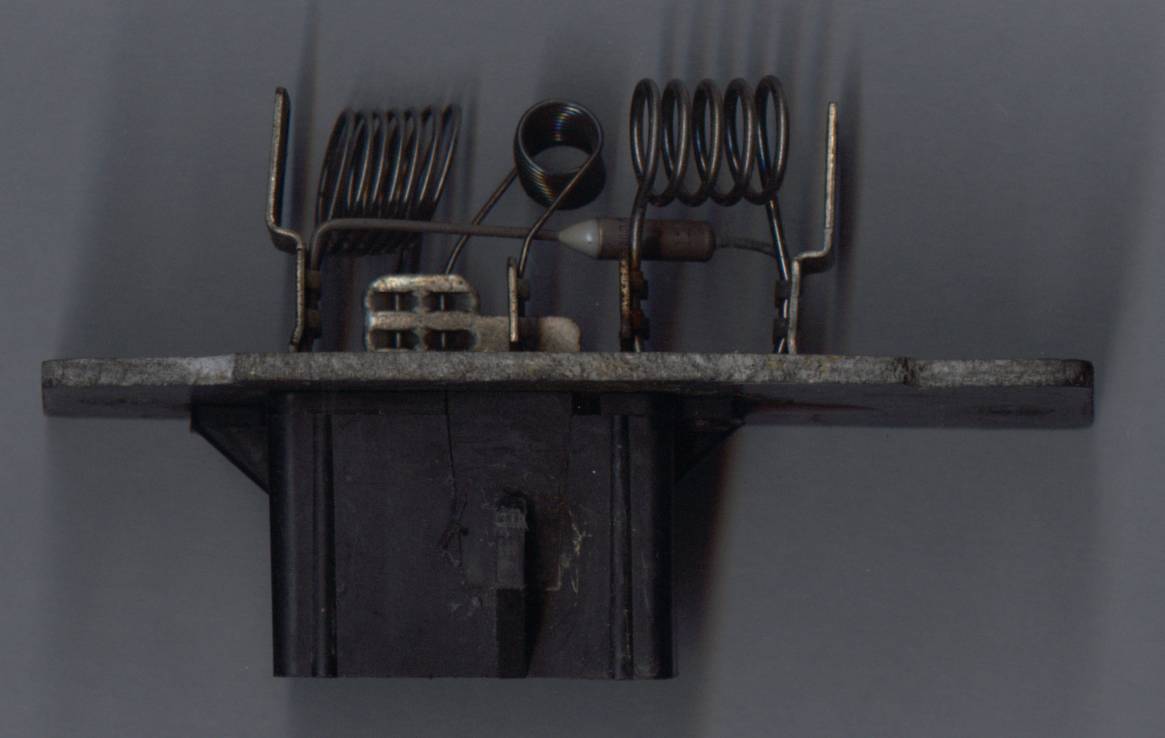

The wire wound coils are constructed of nichrome wire like you'd find in your kitchen toaster



Here you can see the thermal fuse which blows if the temperature gets above 250°F. Once it's blown, it does not reset and the resistor assembly must be replaced.



A couple of the connector pins were somewhat rusty on this particular resistor.

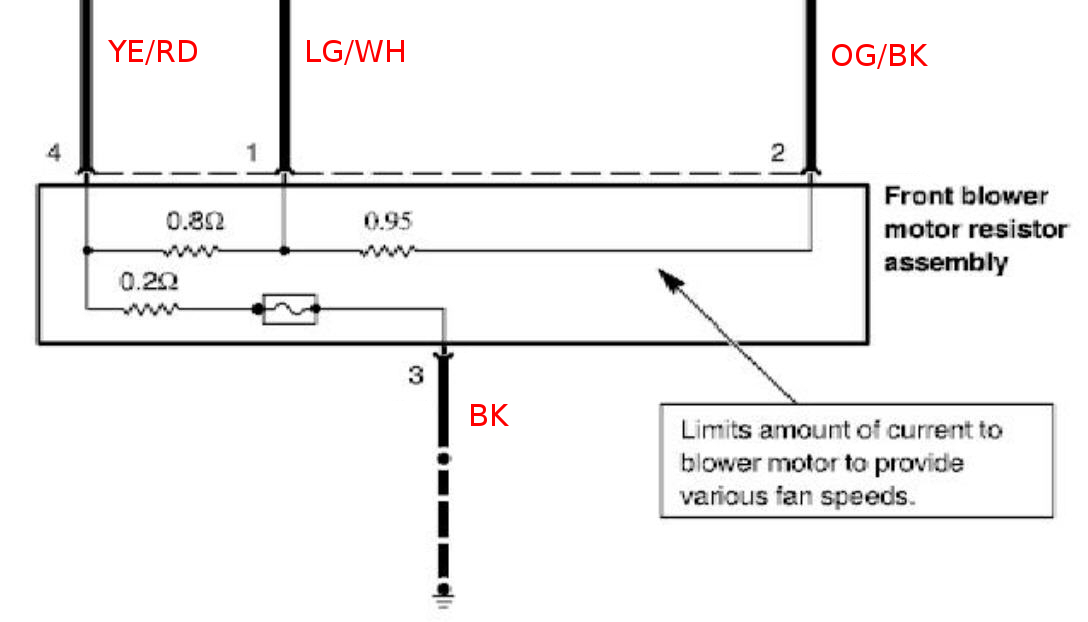

And a diagram of the components inside the blower motor resistor assembly

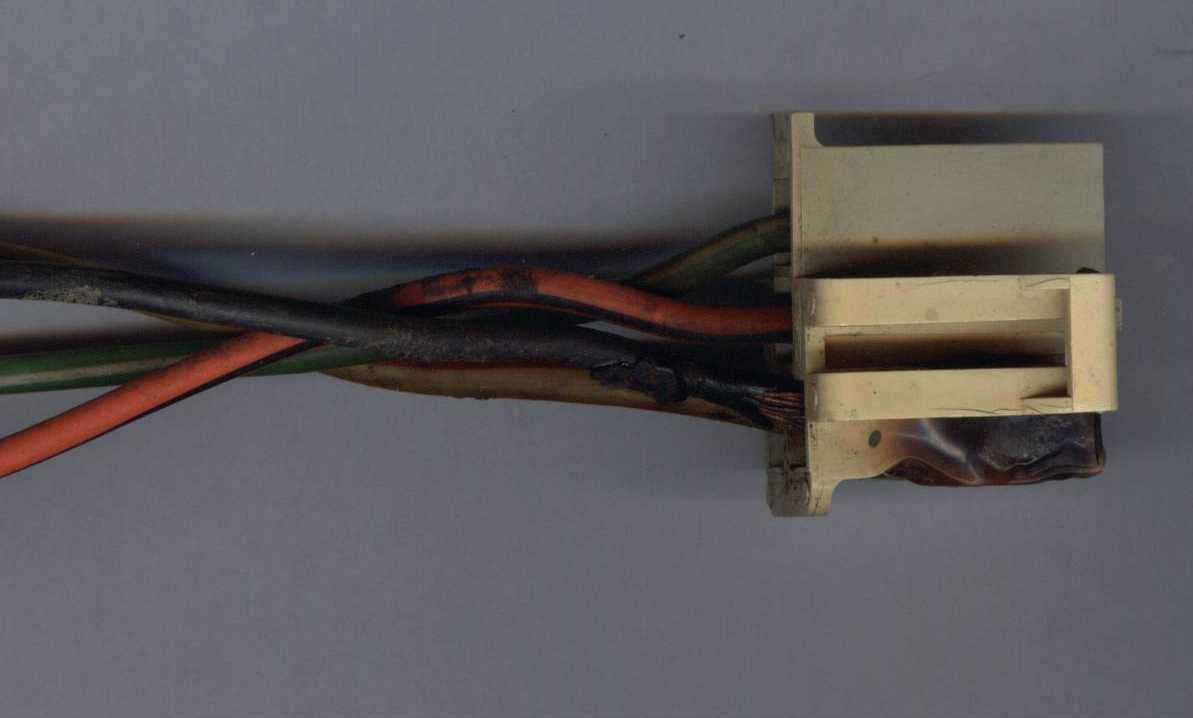

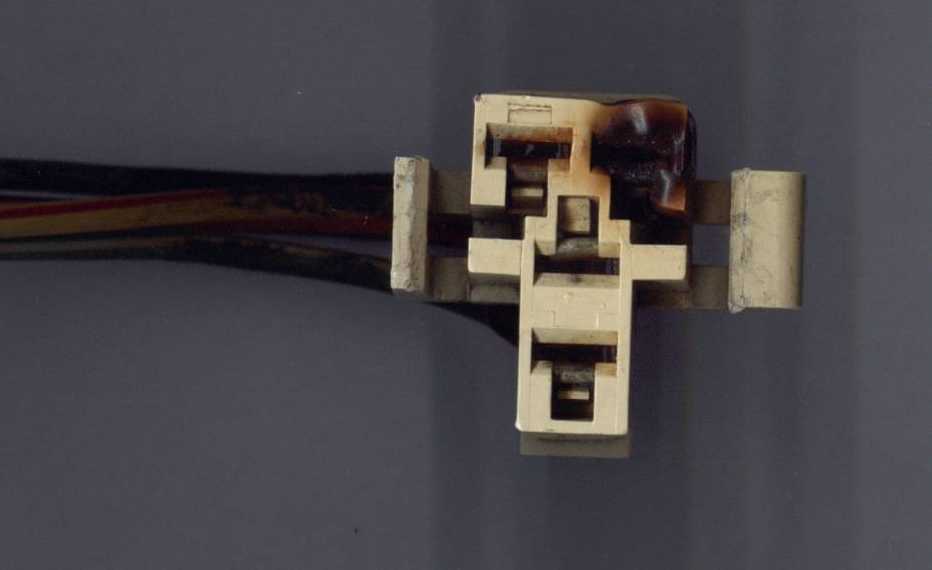

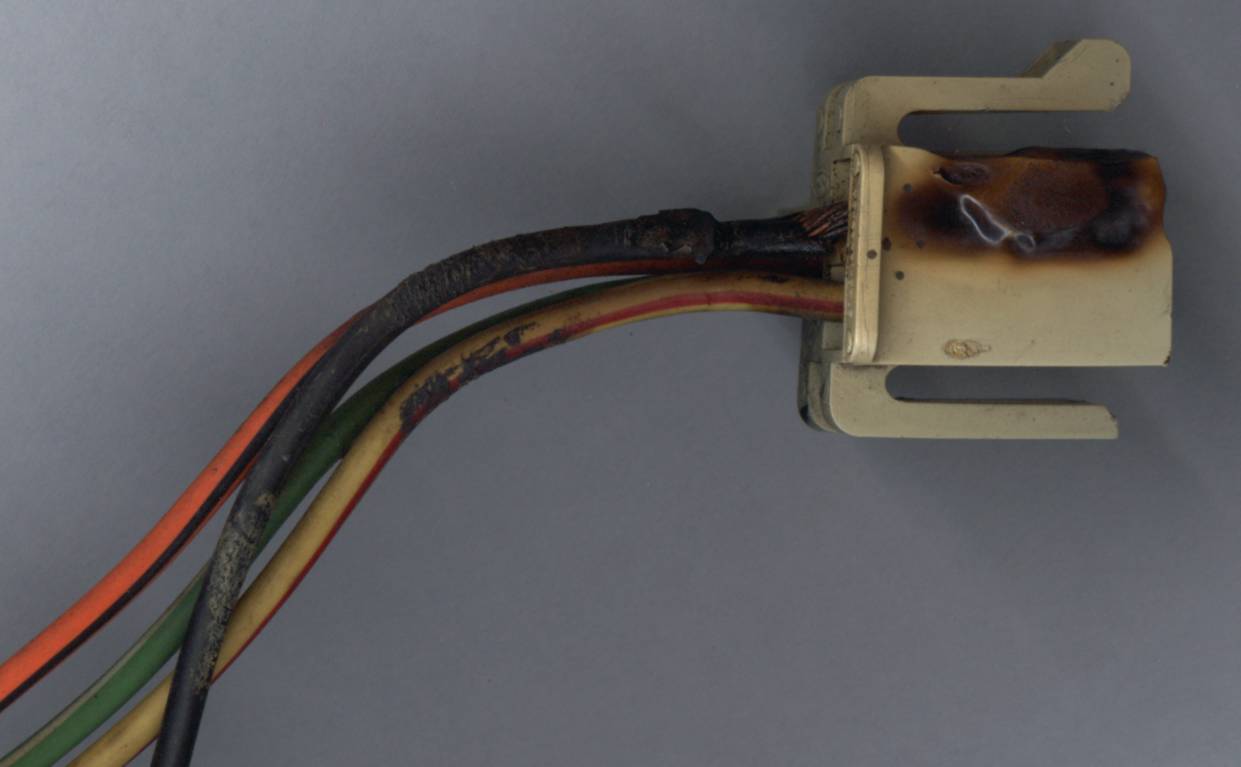

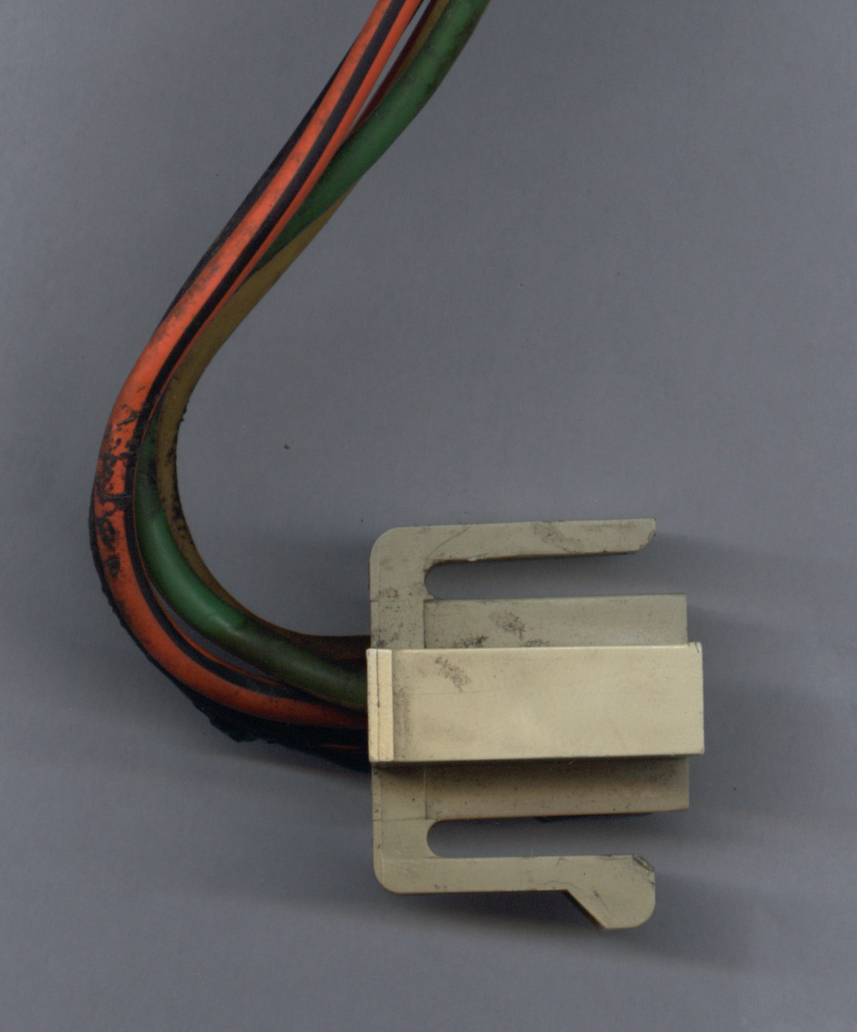

Here are a few pictures of a burned resistor wiring pigtail from a 1998 police interceptor. The blower motor did spin on speeds other than high, but spun rather slowly.









While you are replacing the blower resistor, it would be a good idea clean debris that may have lodged on the evaporator core. You can do this by removing the blower motor and reaching in with your hands to pull off any remaining debris, and then washing off the remainder using a garden hose. Your new blower motor resistor will have a rather short life if an inadequate amount of air is flowing by to cool it.

To remove the blower motor, remove the 4 retaining fasteners and pull forwards



Now that the blower motor is out, you can reach inside to the right and get the debris off of the evaporator core.



You don't have to pull the whole evaporator housing out of the car like this. But it's difficult to get good pictures inside the evaporator housing with the housing still installed on the car. If you would like to view some additional pictures of the evaporator housing, click here.

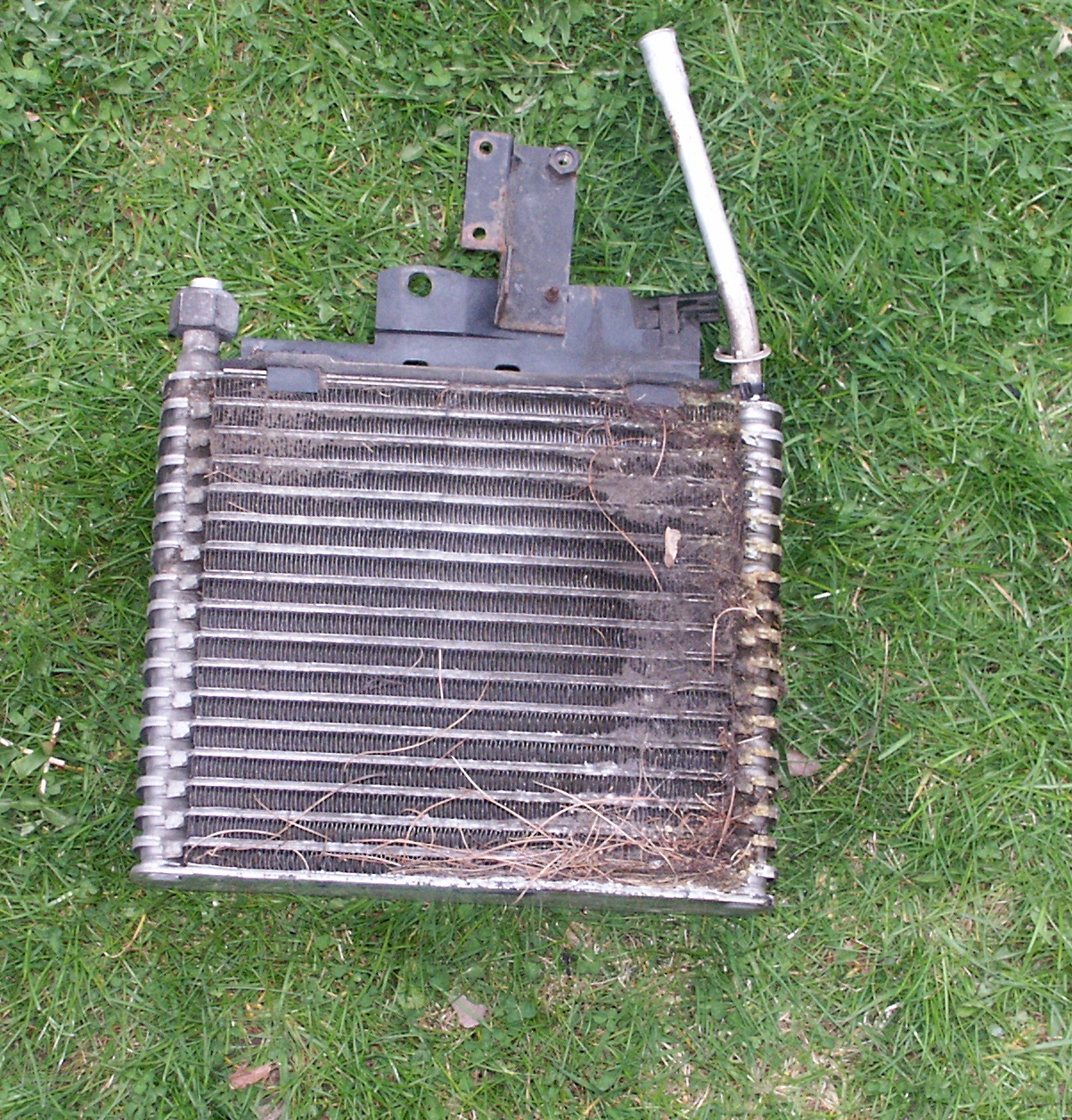

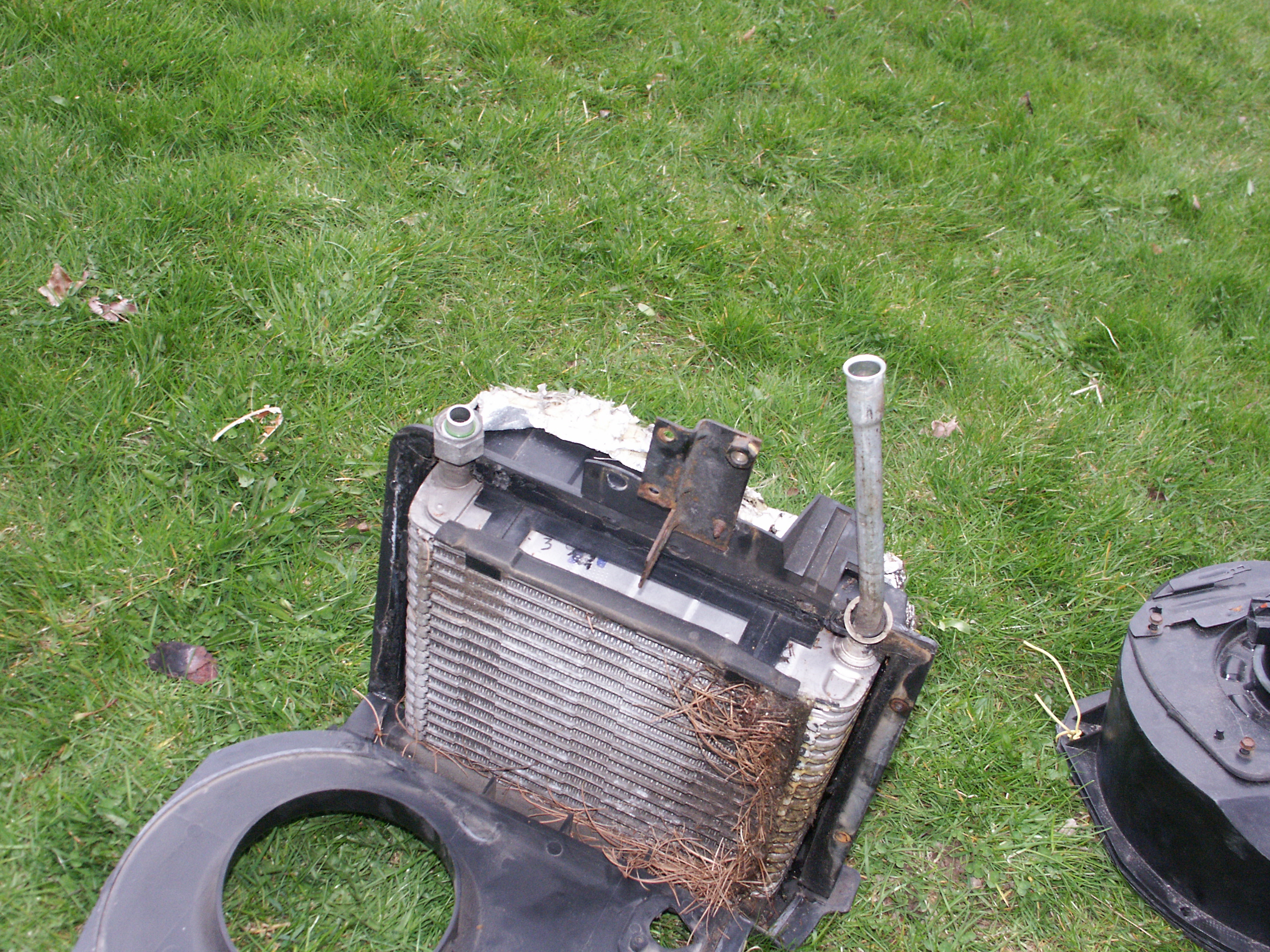

The evaporator acts like an air filter. In this case it caught pine needles and various plant pollens from the outside air. And when on max a/c it had recirculated from the interior passenger compartment flowing through it and caught linen debris from the passenger's clothing. Passengers have been prohibited from smoking cigarettes inside this vehicle, so there aren't any tar deposits on the evaporator core.

These cars do not have a seperate cabin air filter to contend with like in some other fords.

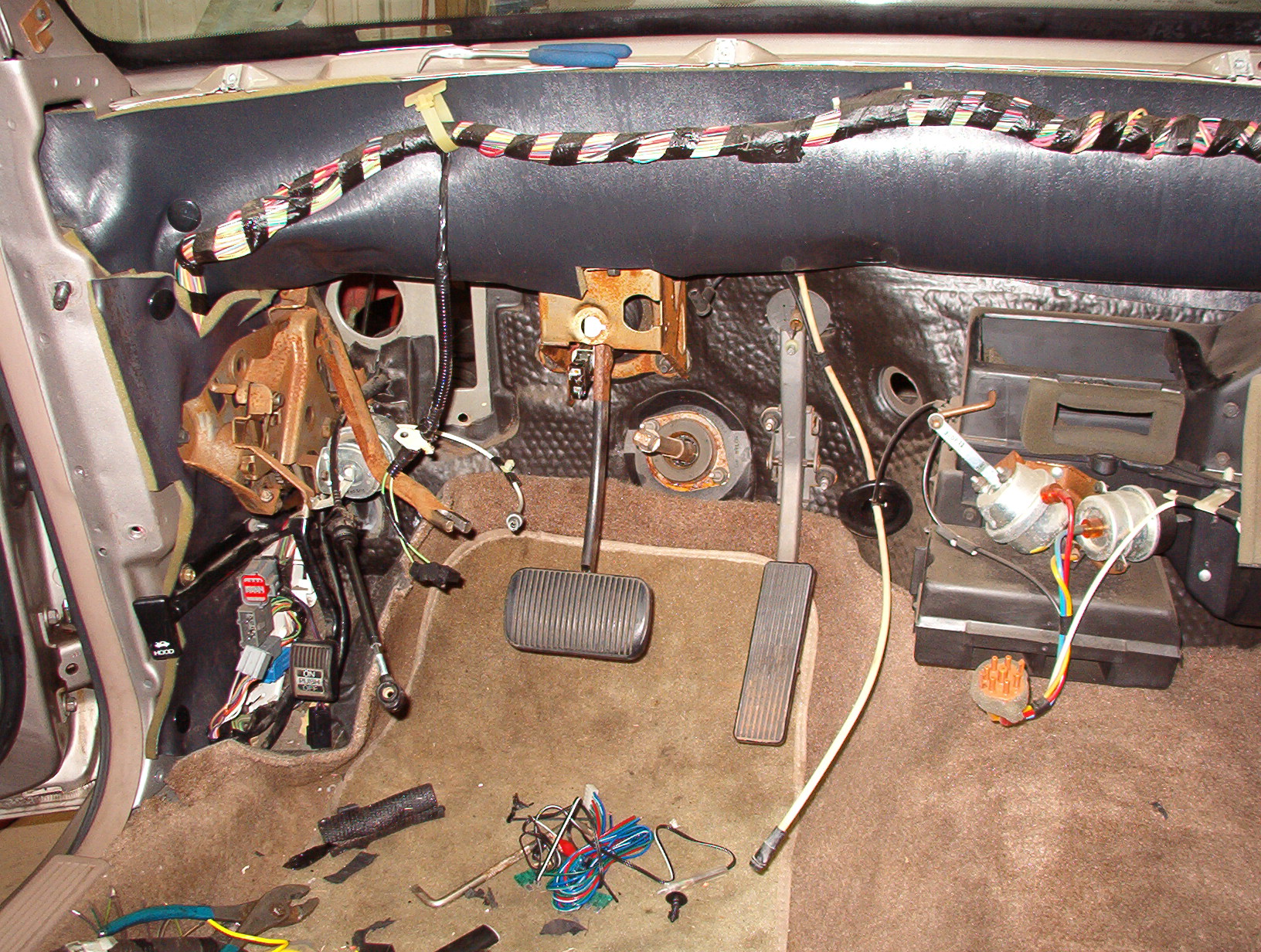

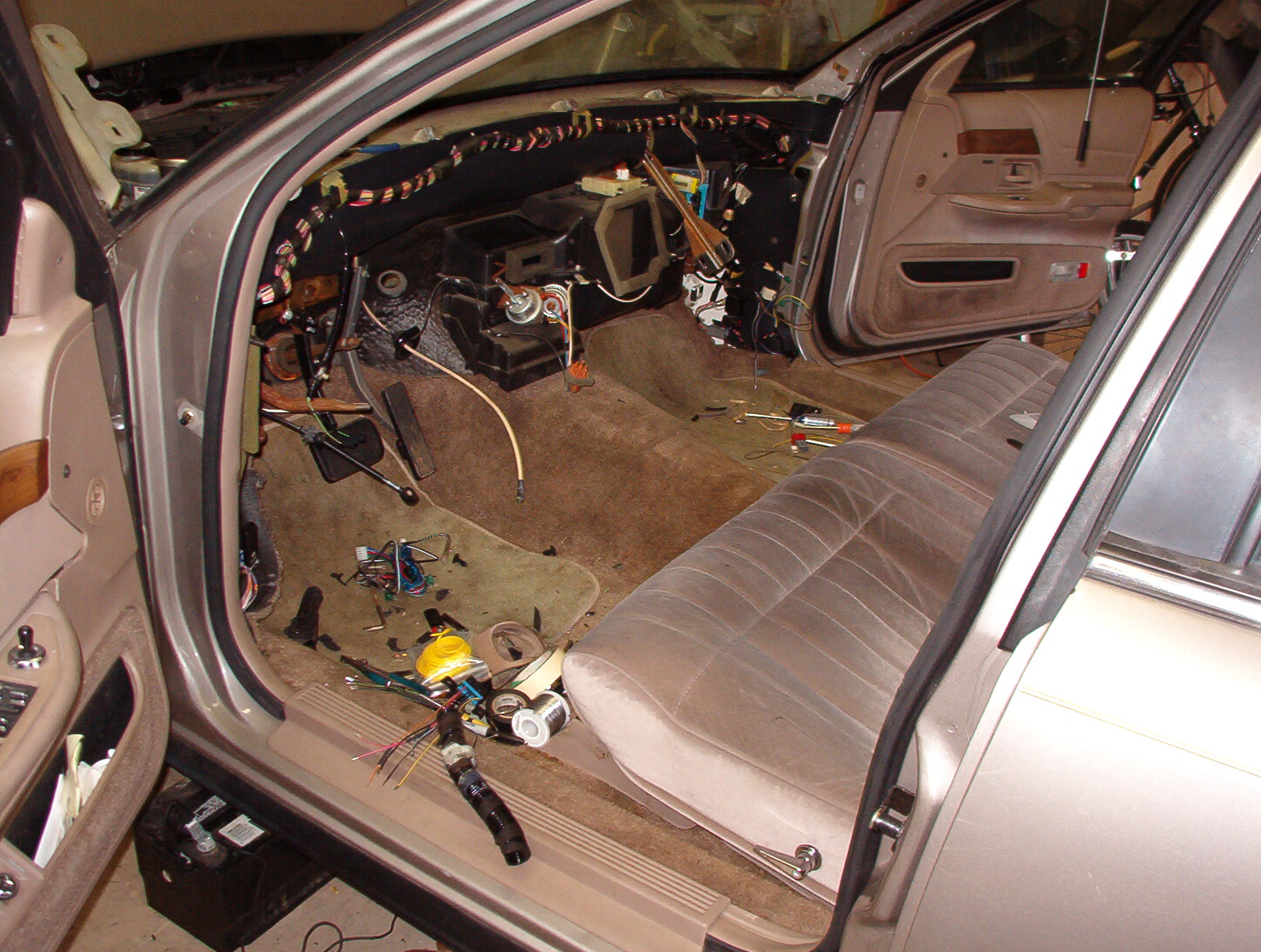

And here are a few pictures of a 1994 crown victoria with the dashboard removed. The object here is to illustrate where the blower motor resistor is in relation to the interior of the car.

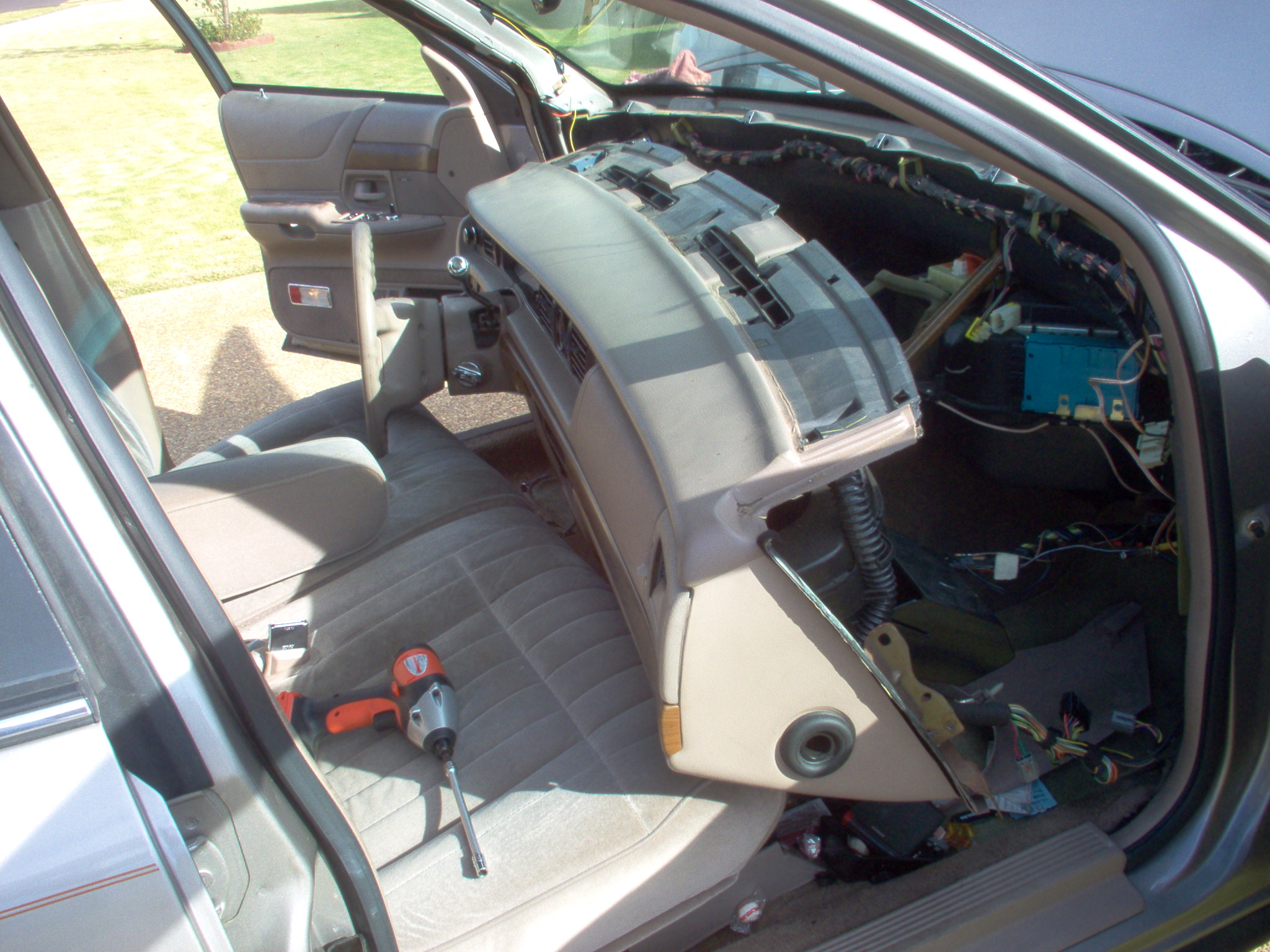

First loosen the dashboard from the body of the car
(picture courtesy of Steve83 on www.crownvic.net)


Then seperate the wiring harnesses and the dashboard can be removed completely
(picture courtesy of Steve83 on www.crownvic.net)


Driver's side
(picture courtesy of Steve83 on www.crownvic.net)


Passenger's side
(picture courtesy of Steve83 on www.crownvic.net)


Passenger's side closeup
(picture courtesy of Steve83 on www.crownvic.net)

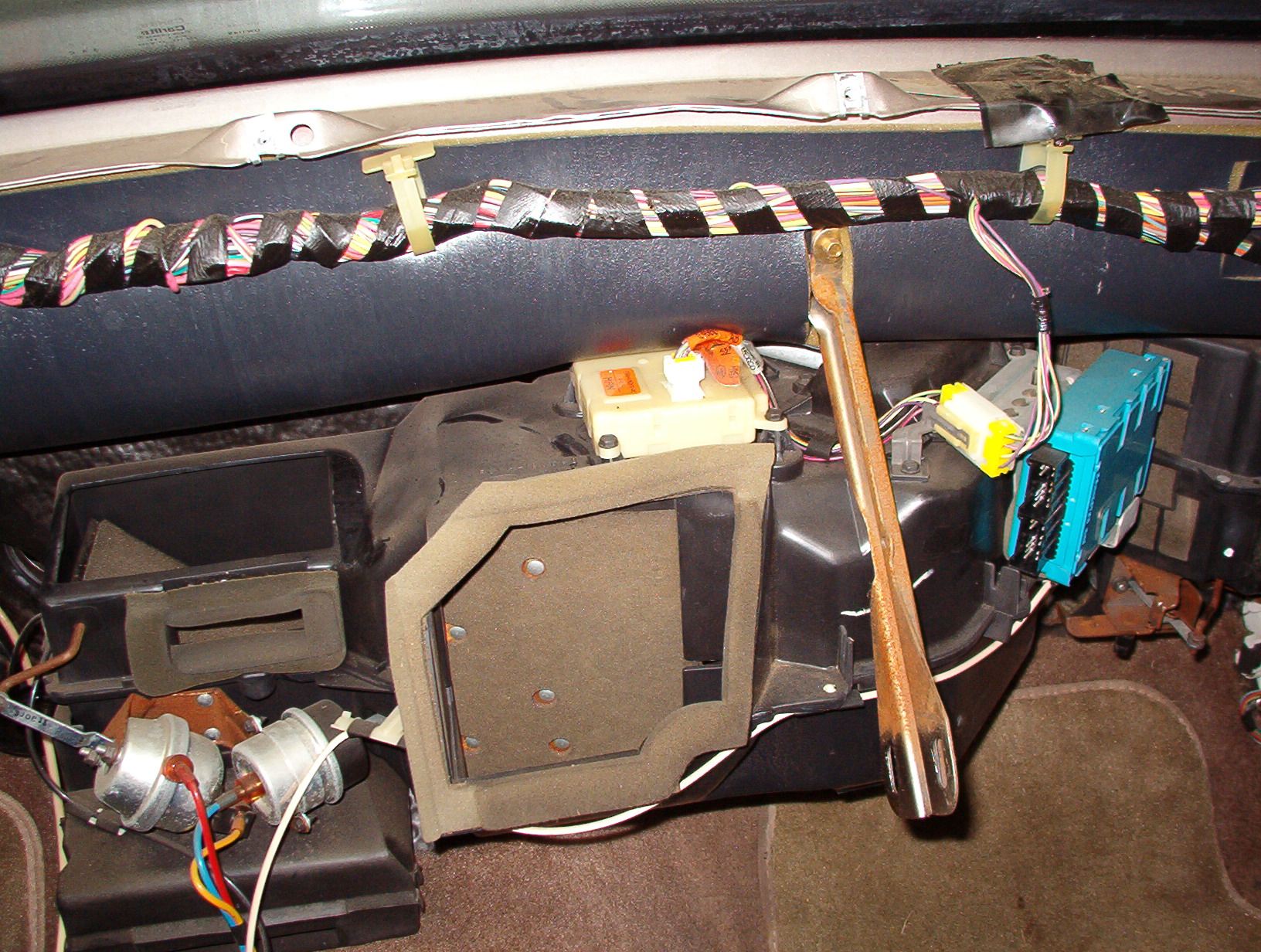

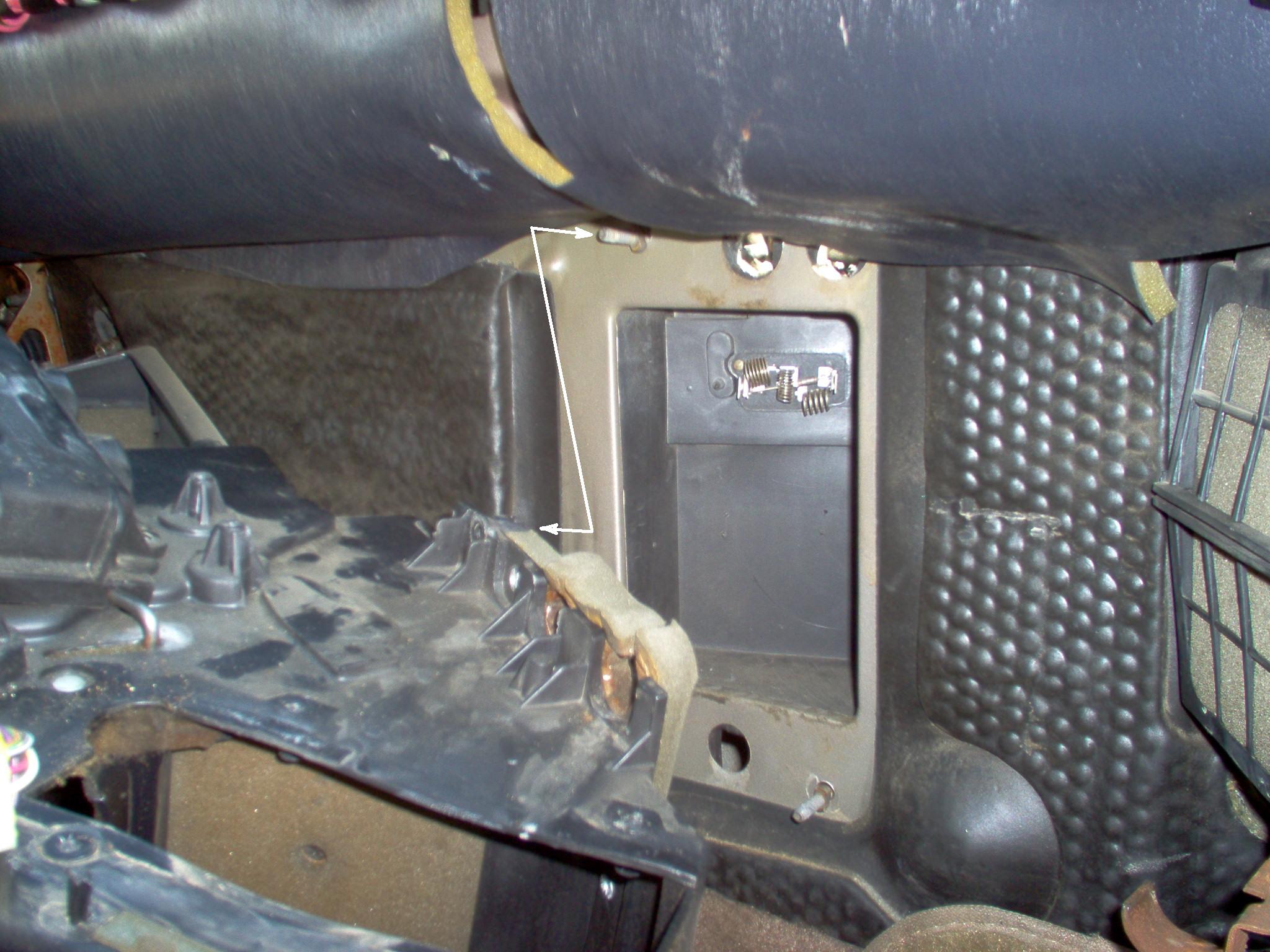

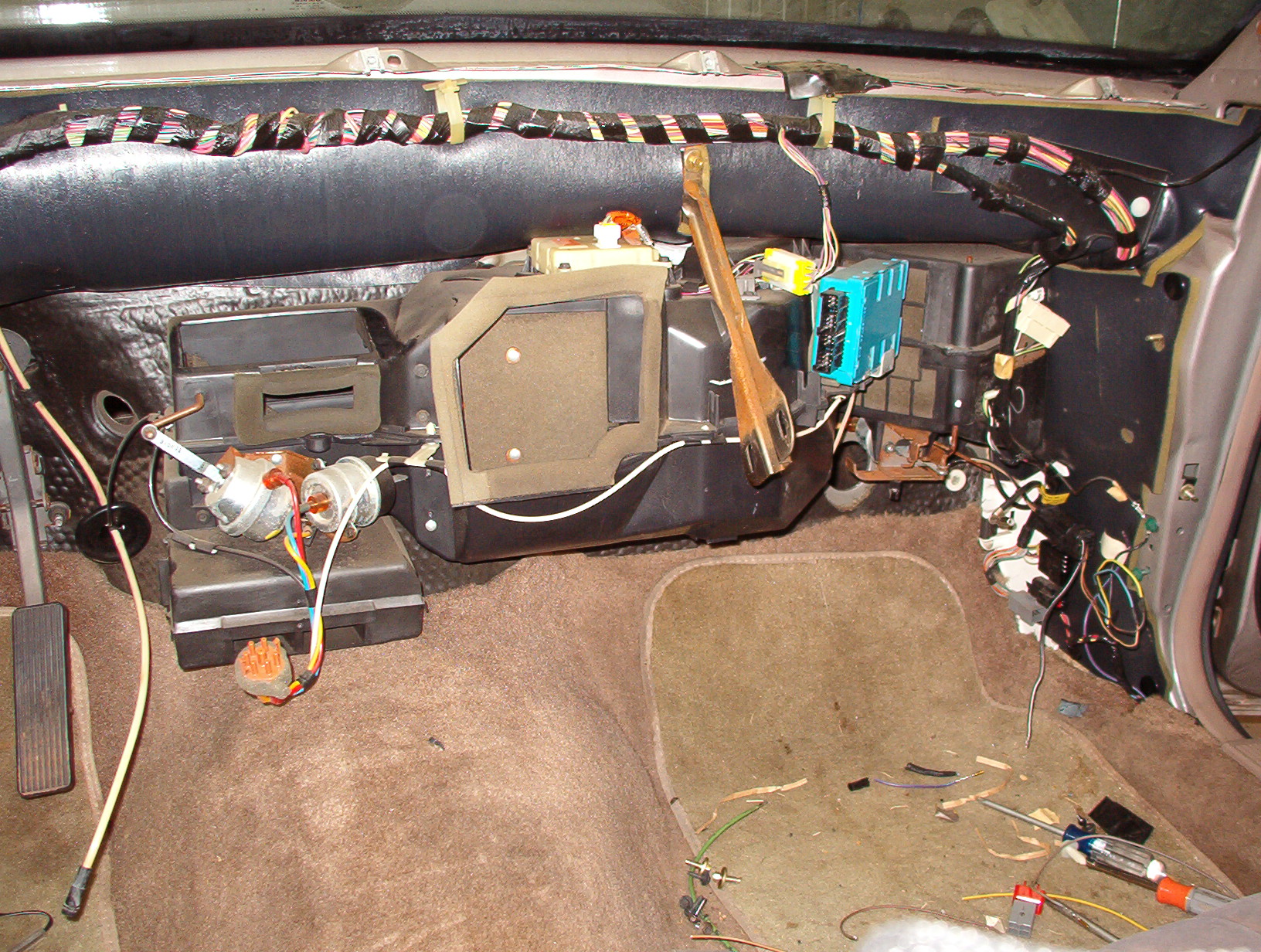

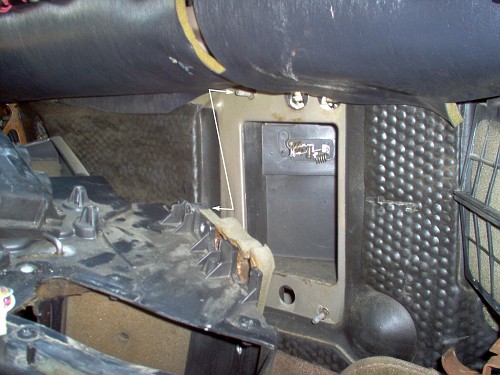

Now pull the heater plenum off of the firewall and the back of the blower motor resistor is visible
Note: Heater core present
(picture courtesy of Steve83 on www.crownvic.net)


The back of blower motor resistor from a different angle
Note: Heater core removed
(picture courtesy of Steve83 on www.crownvic.net)

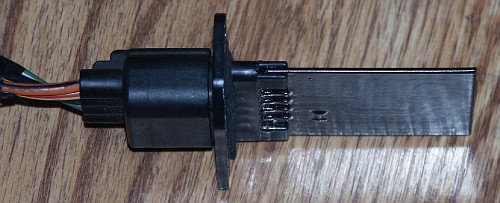

Blower resistors for 2005-2010 crownvics

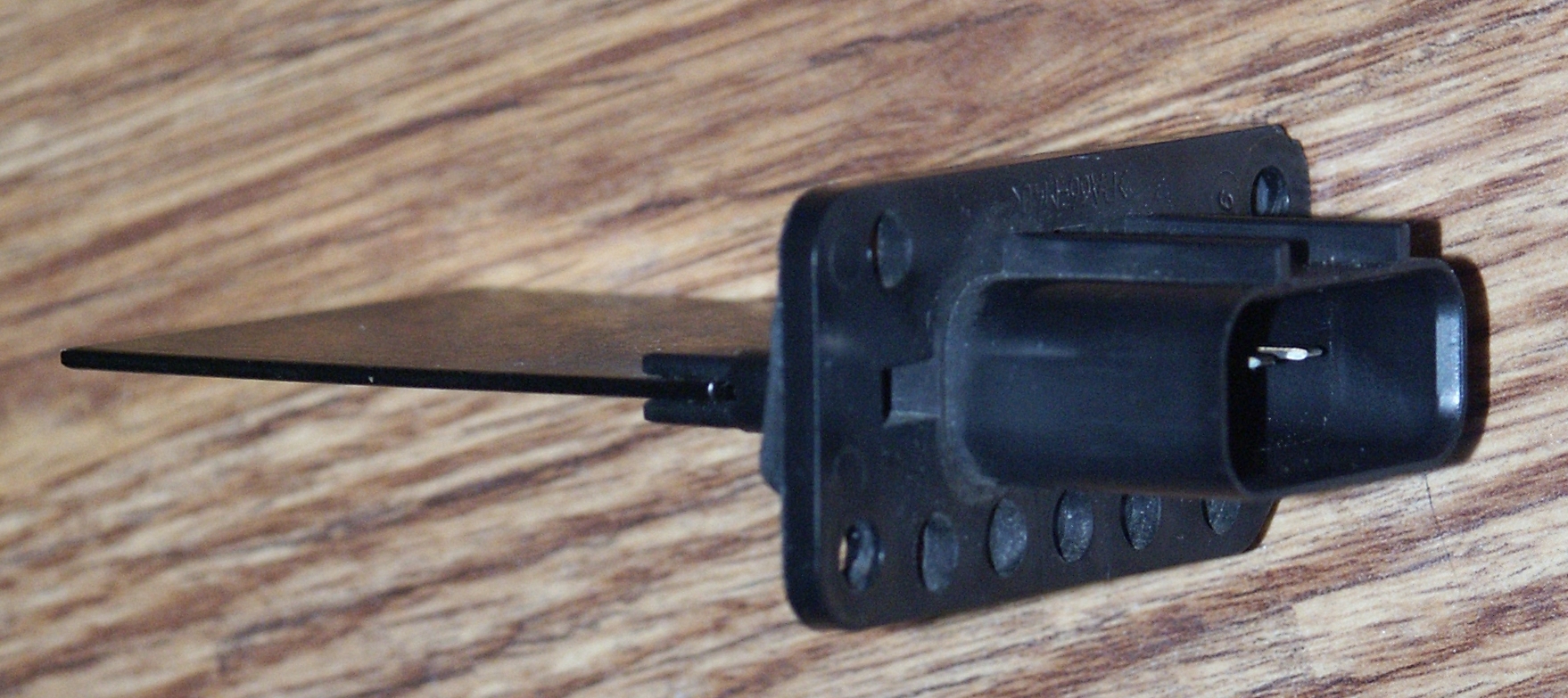

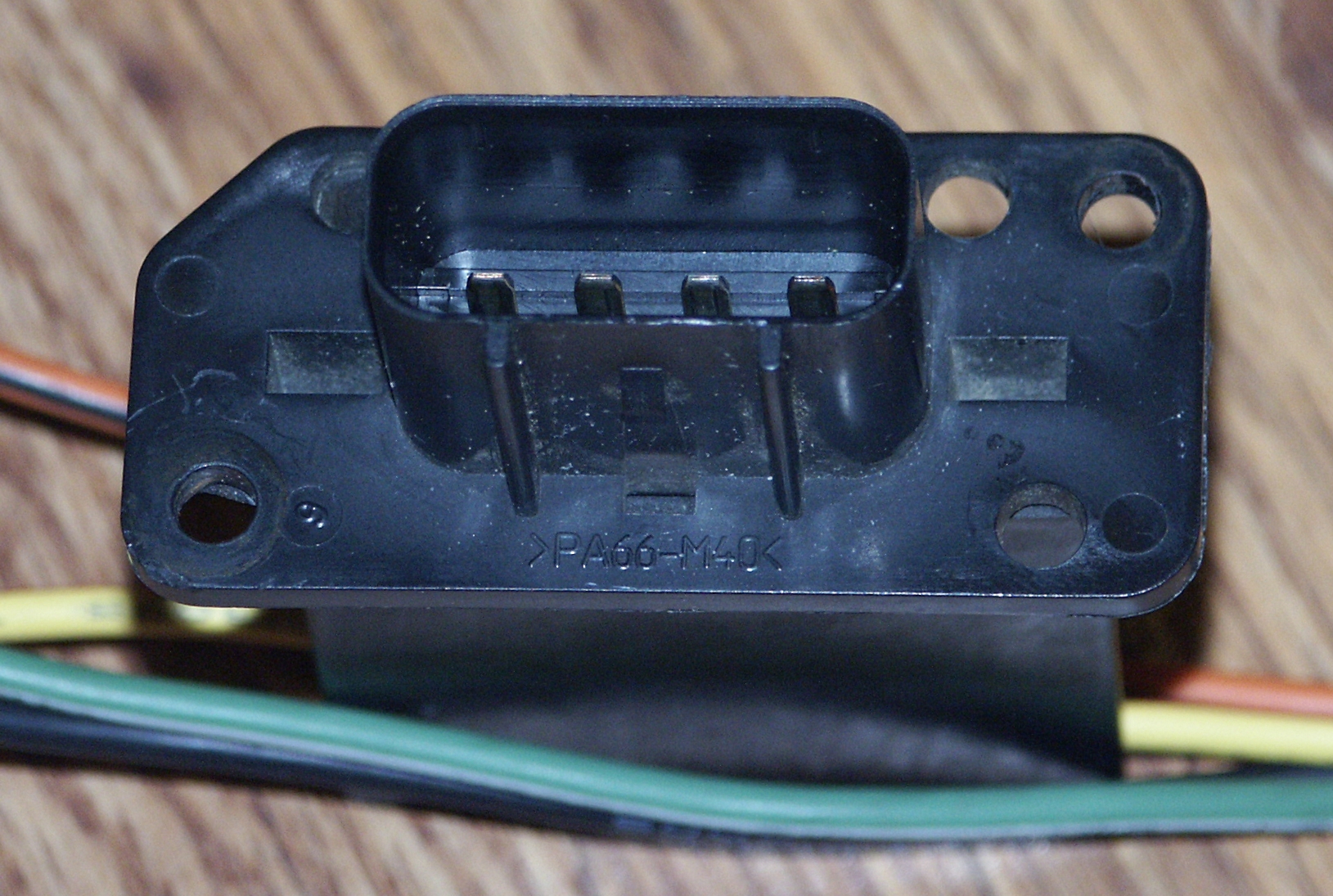

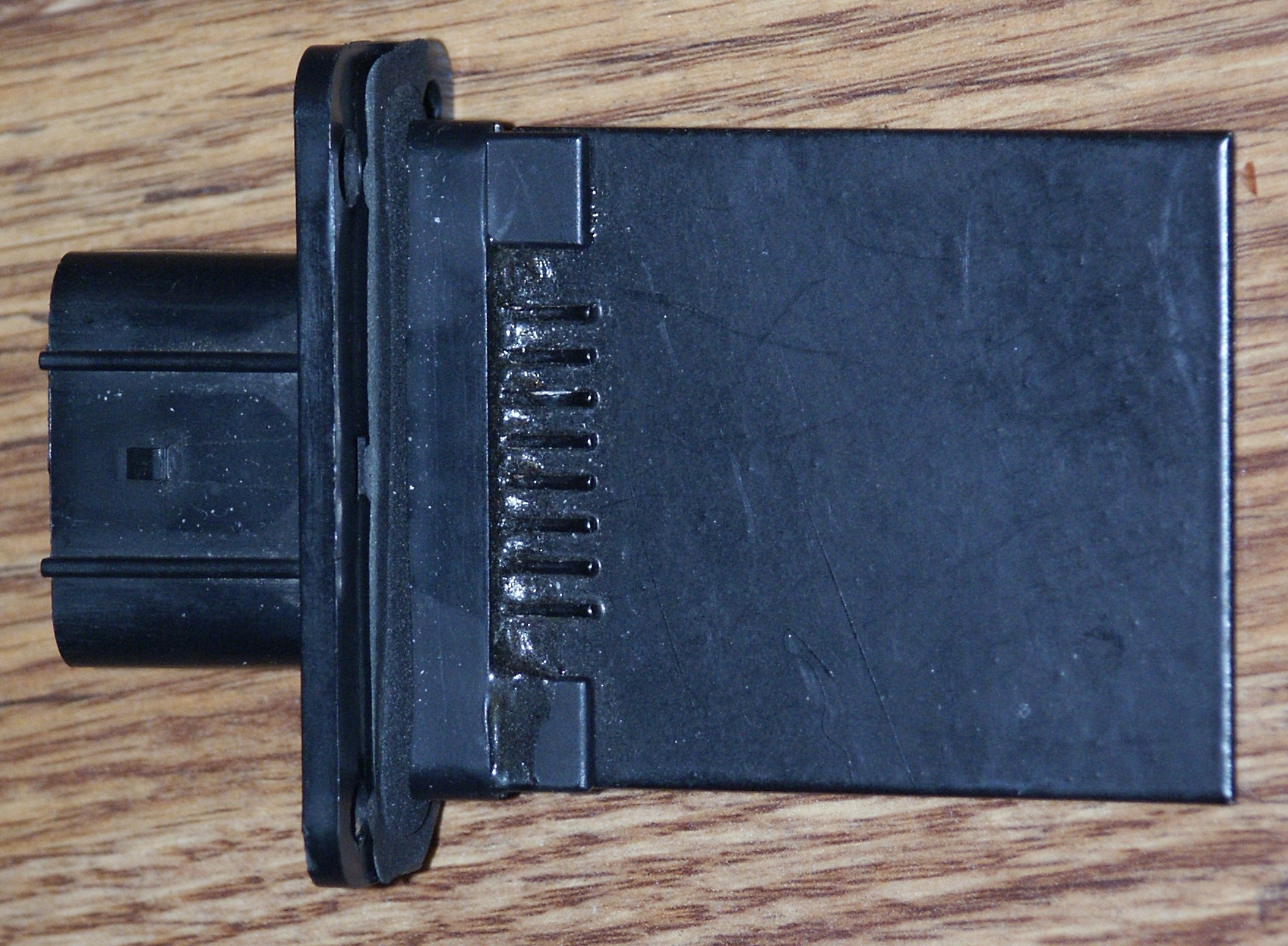

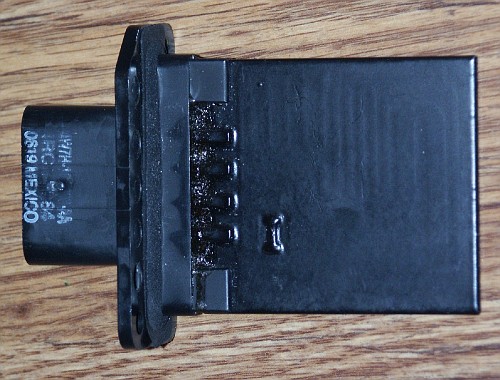

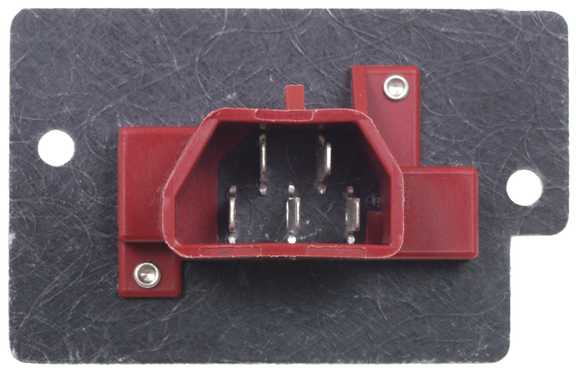

Here are a some pictures of the blower resistor used in the mid-2005 and later crownvics with manual climate controls. There are no obvious problems with this resistor or wiring pigtail, but the donor car no longer needs these parts anymore since it was wrecked and is being "parted out" by a salvage yard.

































Blower resistors for 1980's "box body" crown vics.

GM_Guy on www.crownvic.net had to replace a blower the blower motor resistor in his 1989 grand marquis and made the following observations:

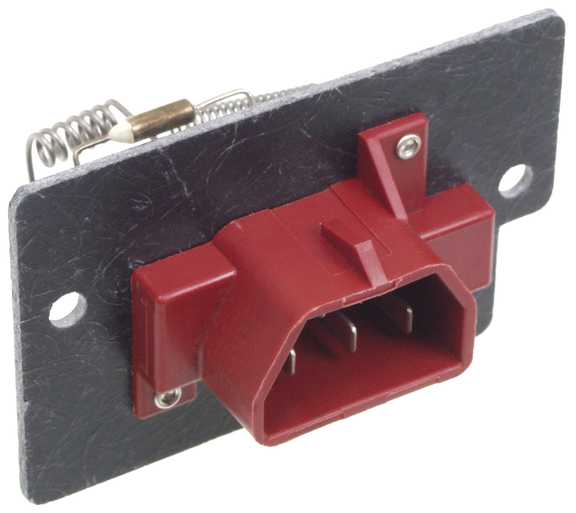

• 1983-1989 crownvics without the automatic temperature control system use the same E3AZ-19A706-A blower resistor as later 1990-2005 vehicles despite what your local ford dealer's parts catalog system will claim.

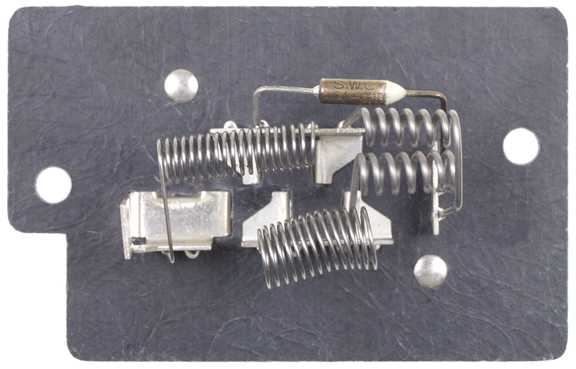

• 1980's crownvics with automatic temperature control use a unique blower resistor, ford part #E4VY-19A706-A and napa part #ECH-BR311. Below are a couple pictures of this resistor assembly.

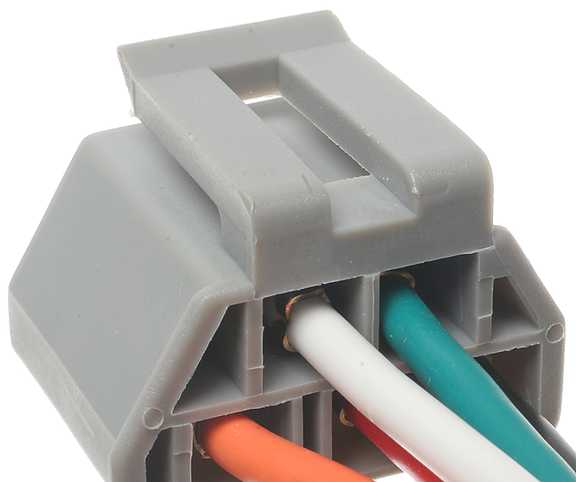

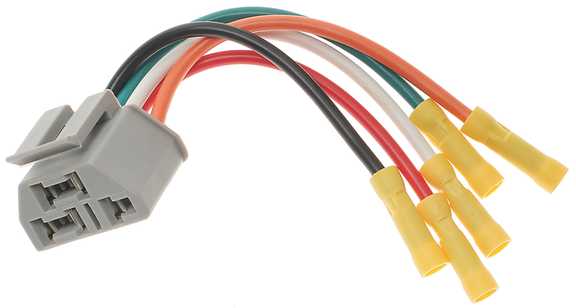

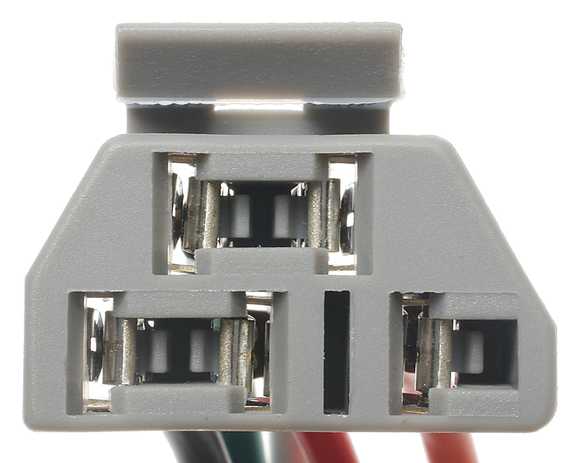

And here is the ECH-EC75 wiring pigtail associated with the ECH-BR311 blower resistor for 1980's crownvics with automatic temperature control.








Notes:

• The burned resistor connector is from a 1998 crown victoria that came from a southern state where chloride rock salts are not used on the roads during the winter. And yes, "rust free" cars in southern states do indeed get corrosion on this part.
• A large portion of crown victoria owners with failed blower resistor parts appear to just complain that their blower motor doesn't work well for years on end, and never bother to actually fix the problem.
• A new blower resistor and pigtail will cost about $50 at your local ford dealer.
• Attempting to locate a "pre-owned" resistor and pigtail from a wrecked salvage yard crown vic is likely to be unproductive as salvage yards often aren't careful with wiring and break the resistor and it's pigtail into little broken peices when removing a car's engine. Also, many of the crown vics that you'll find will have a resistor pigtail in as bad or worse condition than your's currently is. And there is also a trend among wrecking yards to become "full service" and not let you access the cars in the yard like the old "self-service" yards used to.
• Another problem that sometimes afflicts police cruisers is that all air flows out the defroster vents rather than the dashboard vents or floor vents. This is caused by a vacuum leak somewhere. But the focus of this article is on the electrical control aspects of the blower motor rather than the vacuum controlled mode door actuators inside the heater plenum box.
• The blower resistor is cooled by air flowing by it. An old wornout blower motor that consumes too much power and moves too little air will cause premature failure of the resistor.

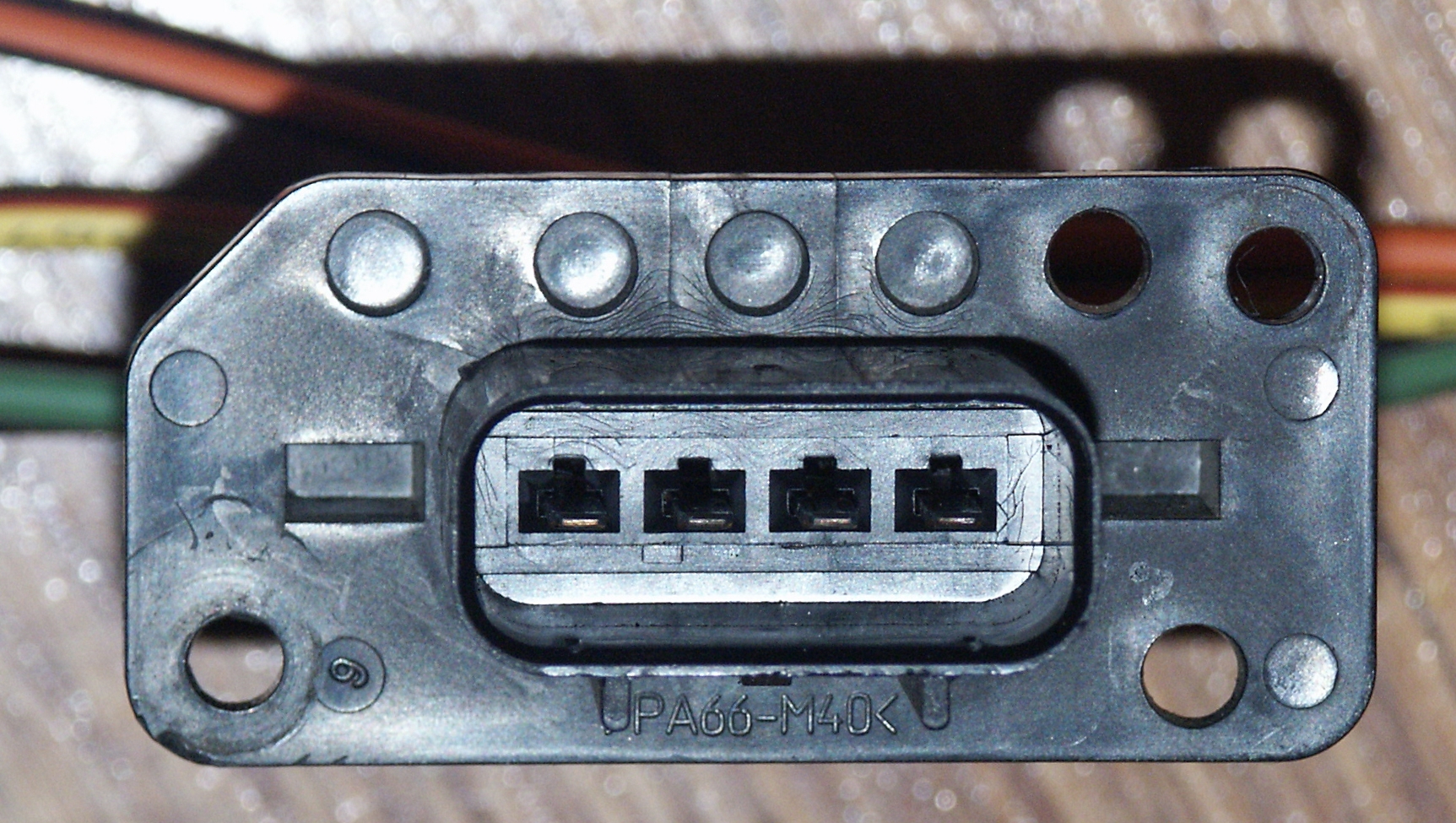

• The blower motor electrical connector was revised part way into the 2004 model year. Service part literature lists the transistion date from the old style electrical connector to the new style electrical connector as 04/20/04. Crownvics manufactured before 4/19/04 got the old style blower motor connector. Crownvics manufactured from 04/20/04 got the new style blower motor electrical connector.

• Part way into the 2005 model year, the blower resistor, the blower resistor pigtail and the associated hole in the evaporator housing were revised. The new blower resistor setup is not compatible with evaporator housings designed for the old blower resistor setup or vise-versa. Ford service parts literature lists the transistion date from the old style blower resistor and electrical connector to the new style setup as 12/06/05.

• Sometimes, the blower speed control switch inside the car and it's associated electrical connector are damaged due to excessive heat. However, it is a lot more common to have a damaged blower resistor/pigtail in the engine bay than a damaged blower motor control switch/pigtail in the passenger cabin.
• Much of the Do-It-Yourself (DIY) car repair crowd seem unaware that their car even has a blower resistor in it. This often leads to the shadetree mechanic replacing the blower speed control switch on the dashboard inside their car, only to be puzzled why their blower motor still only spins on the "high speed".
• The procedure for replacing a damaged blower motor speed controller in a crown vic with EATC or ATC is similar to the procedure for replacing a damaged blower resistor in a car with manual climate controls. However, the part numbers listed above are not applicable to cars with EATC or ATC climate control systems. Some pictures of the the 1998-2010 eatc blower speed controller are avaliable by clicking here. And some pictures of the unique blower resistor used in the 1990-1991 crownvics with ATC are avaliable by clicking here.
• A copy of the ford motorcraft wiring pigtail catalog is avaliable by clicking here. This catalog lists numerous other wiring connectors that are used in your crownvic such as a blower motor connector, a blend door actuator connector, an air conditioner compressor clutch connector, etc.
• You need a 1/4" ratchet, some extension bars, a swivel, some flexable electrical tape to wrap around the swivel and possibly a flex shaft to access the bolts which hold the blower resistor to the evaporator housing on your 4.6L crownvic. Most mechanically minded people should be able to figure out some sort of setup that will work for this project. The big stumbling point for most shadetree mechanics is figuring out that the blower resistor is the cause of their problems and then obtaining the needed part numbers to order the new blower resistor and wiring pigtail.
• Autozone and most other aftermarket parts retailers do not sell blower resistor wiring pigtails for the crownvic. They will however sell you a blower resistor. But installing a new blower resistor will do you little good if your resistor wiring pigtail is badly damaged.
• Your local ford dealership and the your local aftermarket NAPA parts retailer do sell blower resistor repair pigtails, but you might have to manually supply your parts consultant with the part number listed above to actually order one. Just calling up the parts store and saying "i need a blower resistor repair pigtail for a 1997 crown victoria" sometimes results in the parts consultant saying "nope. don't have one." because the blower resistor pigtail is listed in a hidden section of the catalog that they missed.

• The blower resistor is a part specific to the crown victoria and grand marquis. But the electrical connector pigtail for the blower resistor is shared with numerous other older ford vehicles. Here is some application info from the aftermarket SMP (Standard Motor Products) catalog about their S-630 wiring pigtail:
