Below is information about the lugnuts used in the ford crown victoria





1992-2002 Police Interceptor with Steel Wheels and Full Sized Hubcaps
1992-2010 Civilian Aluminum Wheels with unexposed lug nuts
Ford: 1/2-20x28mm
Dorman: Thread 1/2-20 / Hex Size 13/16" / Length 5/8" / Seat Angle 60 deg.
Zinc Plated
Ford: 6W7Z-1012-AA
Ford Legacy: E8AZ-1012-A
NAPA: BK 6412024
NAPA: BK 6412080
Dorman: 611-016








Civilian Aluminum Wheels with Exposed Lugnuts
Ford: 1/2 - 20 x 1 1/2
Thread 1/2-20 / Hex Size 13/16" / Length 1-15/32" / Seat Angle 60 deg
Stainless Steel Cover

Troublesome lugnut on older vehicles. Rust develops in between the steel lugnut and the chrome cover after several years. The lugnut becomes oversized due to rust-jacking and gets stuck in socket when attempting to remove lugnut. Then have to use pliers to get lugnut out of the socket, and are left with unattractive brown rusty lugnut without the chrome cover.
Ford: 9R3Z-1012-A
Ford Legacy: D4FZ-1012-A
Ford Legacy: E2TZ-1012-A
Ford Legacy: E8LY-1012-A
Ford Legacy: 6W7Z-1012-BA
Napa: BK 6412048
Dorman: 611-071










2003-2005 Police Interceptor Steel Wheels with Full Size Hubcap
2003-2010 Civilian Crownvics with 16" Steel Wheels and Full Sized Hubcaps
Ford: 1/2-20 x 26.9mm - open end with M27 external thread
Dorman: Type Standard Open Nut / Thread 1/2"-20 / Hex Size 13/16" / Length 1.07" / Seat Angle 60 deg.
Zinc Plated
Ford: 6W7Z-1012-DA
Ford Legacy: 3W7Z-1012-AA
NAPA: BK 6414237
Dorman: 611-222









1980's & early 1990's "Box Body" Crownvics
Civilian Steel wheels w/locking wire wheel cover
Civilian Steel wheels w/spoked full wheel covers
Ford: 1/2-20 x 23.4mm - open end
Dorman: Type Bulge / Thread 1/2-20 / Hex Size 13/16" / Length 15/16" / Seat Angle 60 deg
Zinc Plated
Ford: 6C2Z-1012-A
Ford Legacy: D5LY-1012-A
Ford Legacy: E8ZZ-1012-A
NAPA: BK 6412147
Dorman: 611-093









1998-2010 Police Interceptor with small lug cover (D5AAG "Center Cap" option code)
2006-2010 Police Interceptor with 17" steel wheels and full sized hubcaps
Ford: 1/2-20 x 29.8mm open nut with shoulder
Dorman: 1/2-20 / Hex Size 13/16" / Length 1-5/32 / Seat Angle 60 Deg
Zinc Plated
Ford: 6W7Z-1012-CA
Ford Legacy: F8AZ-1012-AA
NAPA: BK 6414084
Dorman: 611-197
"Collared Lug Nut"
"Lug Nut with Shoulder"





Ford Explorer
Ford Ranger
Mazda B-Series
Ford: 1/2-20 Hex Flanged
Dorman: 1/2-20 / Hex Size 3/4" / Length 1-1/4" / Seat Angle 60 Deg

These truck lugnuts are similar to the 6W7Z-1012-CA passenger car lugnuts listed above but they are a little longer and you use a 3/4" socket wrench to remove the nuts instead of a 13/16" socket wrench. You can use these on a crownvic, but you'll want to replace all 20 lugnuts on the car so that you have the same size lugnut on each wheel. Having to use different sized socket wrenches on different lugnuts is likely to result in damaged lugnuts, damaged socket wrenches, and the tire service shop employees muttering numerous curse words about your car.
Ford: 6L2Z-1012-AA
Ford Legacy: F5TZ-1012-A
Ford Legacy: F8TZ-1012-A
NAPA: BK 6411531
Dorman: 611-171
Dorman: 611-199
"Collared Lug Nut"
"Lug Nut with Shoulder"





Ford: F87Z-1130-DA (Plastic Retention Clips)
Ford Legacy: F8AZ-1130-CA (Steel Retention Clips)

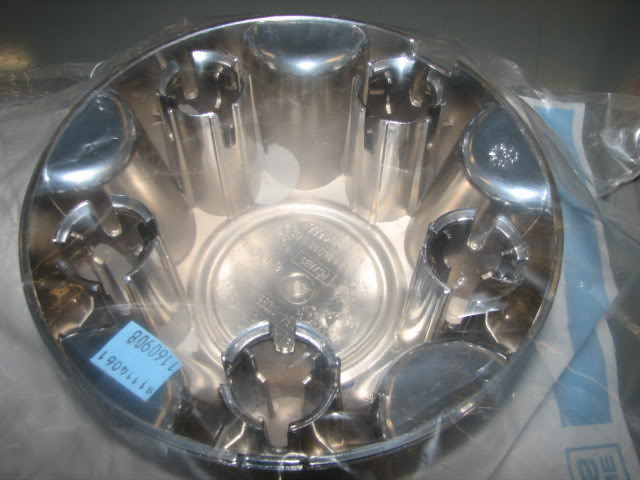

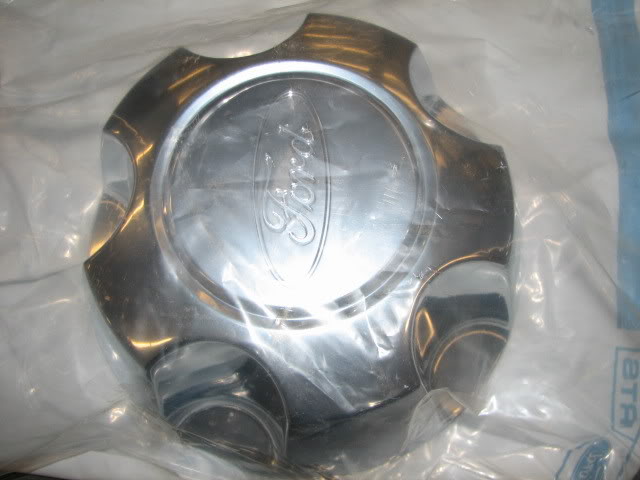

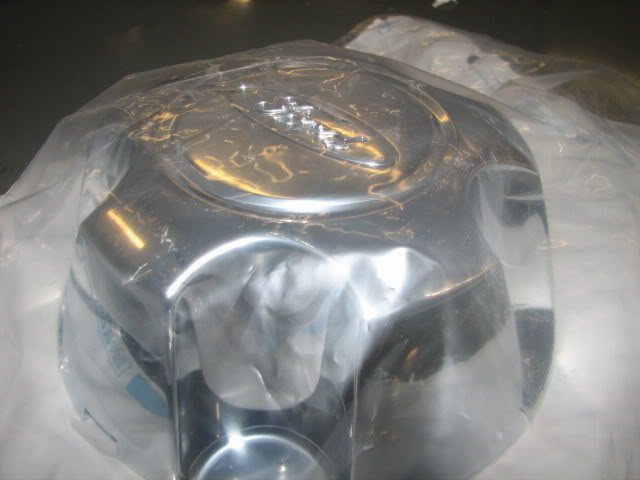

Type 146 Center Cap
Used on police interceptors before 10/15/99
Also used on Ford Ranger & Ford Explorer
Will not fit properly on 2003+ crownvic high offset wheels. Physically snaps on, but overhangs outside of the tire sidewall.

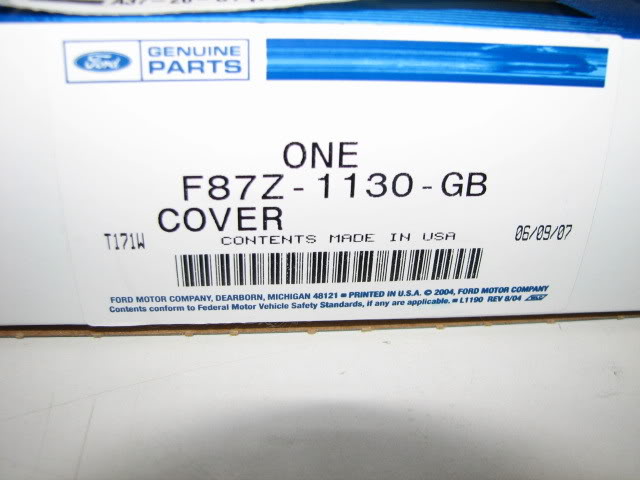

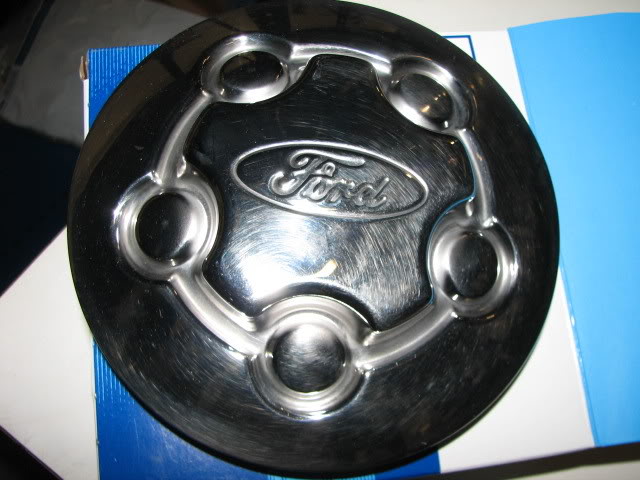

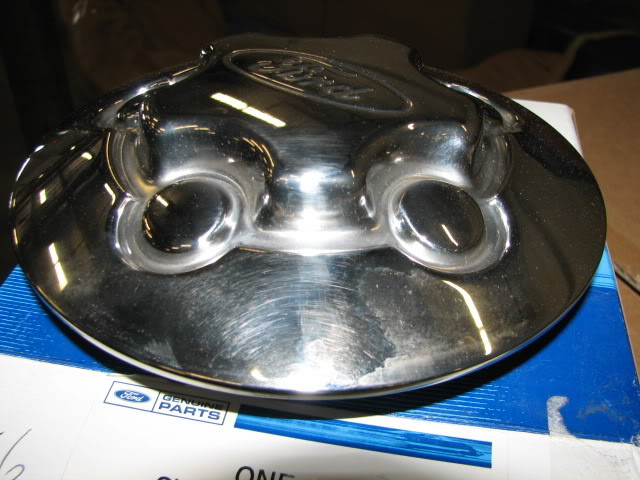

Ford: F87Z-1130-GB Type 170 Center Cap
Used on police interceptors from 10/15/99

In october 1999, ford switched styles of centercaps on police cruisers. Here is a special service message (SSM) from the ford oasis network about this topic:

14325 CENTER CAP PART NUMBER CLARIFICATION 1998-2001
1998-2001 CROWN VICTORIA POLICE AND FLEET VEHICLES ARE EQUIPPED WITH ONE OF TWO TYPES OF WHEEL CENTER CAPS DEPENDING ON VEHICLE BUILD DATE. VEHICLES MANUFACTURED PRIOR TO OCTOBER 1999 USE F87Z-1130-DA (PLASTIC) CENTER CAPS. VEHICLES BUILT FROM OCTOBER 1999 USE F87Z-1130-GB (STEEL) CENTER CAPS. ALL VEHICLES WITH CENTER CAPS USE THE SAME WHEEL LUG NUT - F8AZ-1012-AA.
EFFECTIVE DATE: 08/25/2000

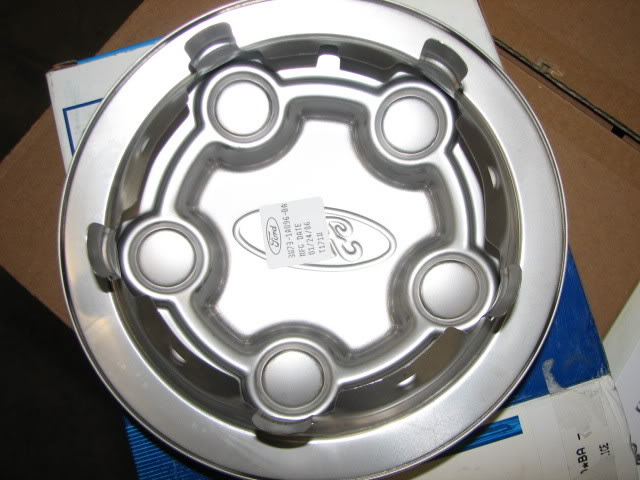

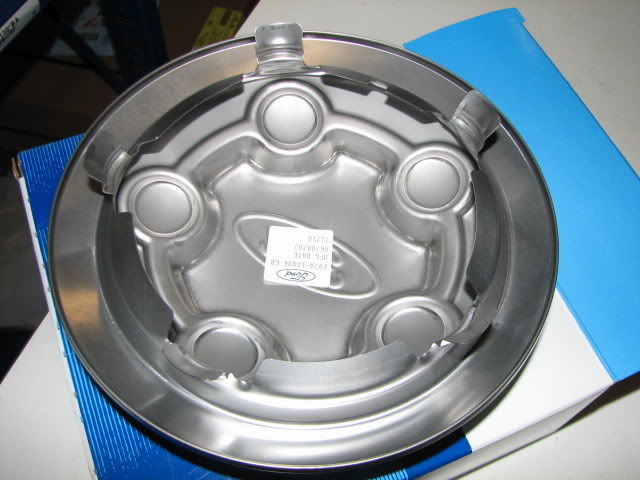

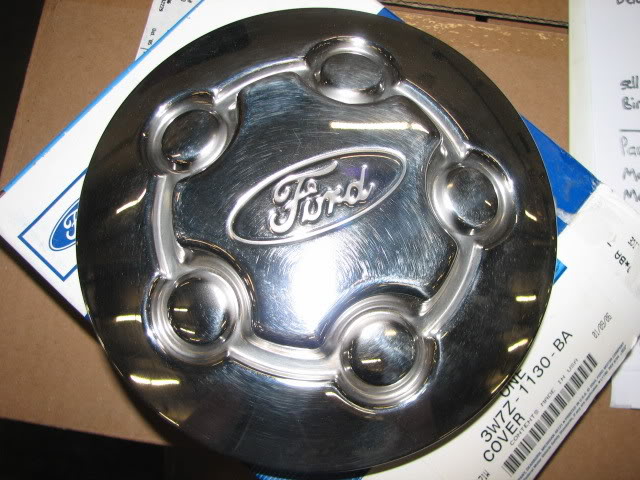

Ford: 3W7Z-1130-BA
Type 170 Center Cap
2003+ police interceptor center cap
Use with high offset 2003+ steel wheels





Plastic Hubcap Nuts for:
2003-2005 Police Interceptors with Fullsized Wheel Covers
2003-2010 Civilian Crownvics with 16" Steel Wheels and Deluxe Fullsized Wheel Covers

3W7Z-1A063-AA

1 Plastic Hubcap Nut (For Kit of 5 peices order 4W7Z-1A063-AA Instead)

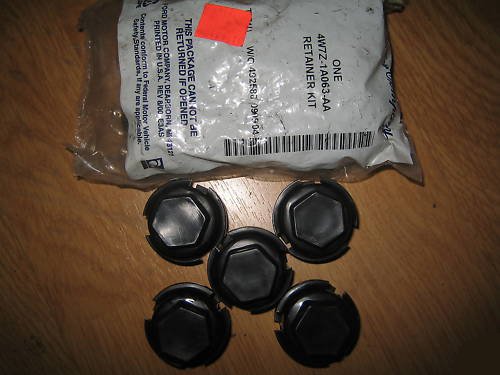

4W7Z-1A063-AA
Same as 3W7Z-1A063-AA but 5 pieces in this kit

1998-2002 16" Police Interceptor Steel Wheels
F8AZ-1007-EA Service Part
F8AZ-1007-EACP Truck Load Crash Part Discount Program
