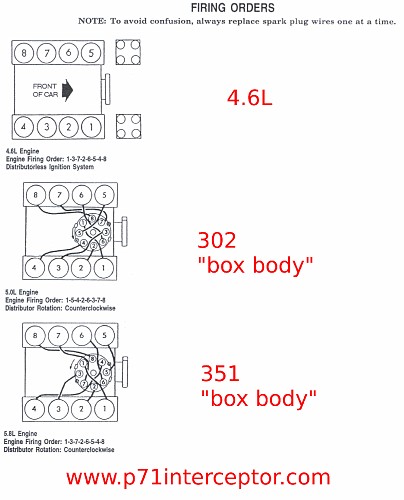

Below is a picture of the firing order of a 4.6L ford crown victoria
engine. This diagram would be potentially useful to someone trying to
identify the location of a cylinder to troubleshoot a misfire code.
The two blocks in front of the engine are the coil packs used in
1992-1997 crown victorias. 1998 and later crownvics do not use spark
plug wires like the earlier models did, so you can disregard that
portion of the diagram if you are working on a 1998+ crownvic.
And here is a diagram depicting the firing order of the legacy
1979-1991 302/351 (5.0L/5.8L) equipped "box body" crown vics.
